This item is sold per "METRE"

If you order 5, you will get five metres.

Need a longer length?

This cable is also available as a 100 m roll.

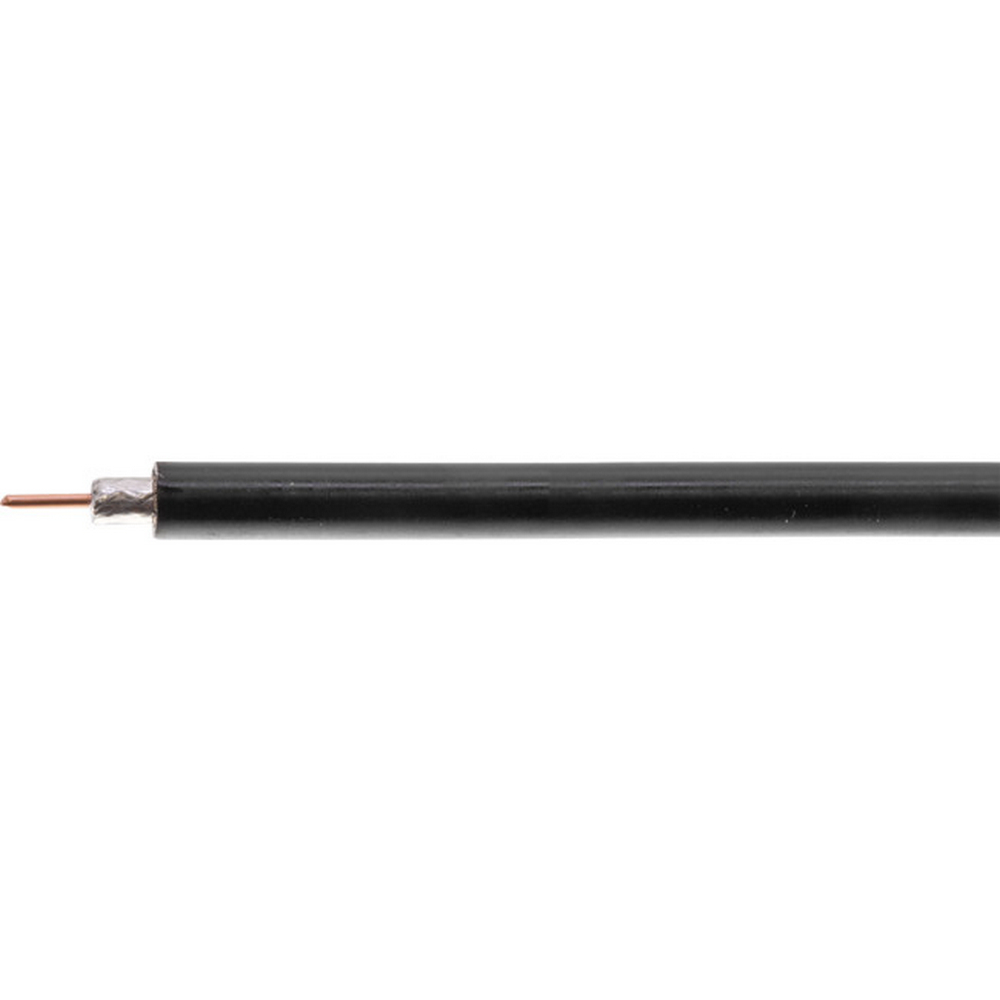

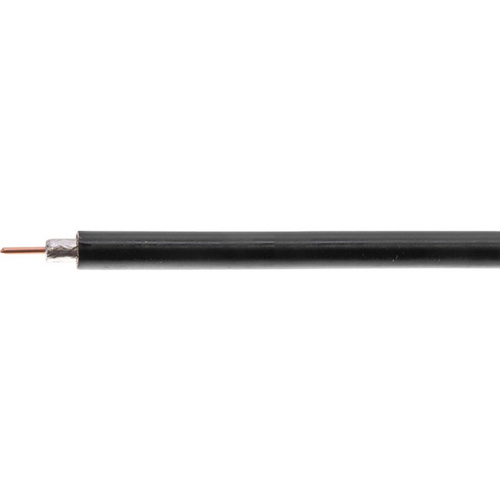

LL195 - 50 OHM COAXIAL CABLE

A heavy duty 50 ohm coaxial cable with 0.94mm±0.01solid bare copper conductor & Bonded dual al foil+ tinned copper outer conductor.

  • Foam PE dielectric
  • Black PVC sheathed.
  • O/D: 4.95mm±0.13
  • Cap.: 27PF/M

Cable Construction



Material

Dimensions

1.Inner Conductor

Bare Copper

0.94±0.01m m

2.Dielectric

PE(Foam PE)

2.79±0.08mm

3.Outer Conductor

Bonded DualAl Foil + Tinned Copper

89% Braid Coverage(16*6*0.127*18.8)

4.Jacket

 PE(Black PE)

4.95±0.13mm



Mechanical Characteristics


Impedance

50±2O

Capacitance

27PF/FT

Velocity

75%

Jacket spark (V.RMS)

3000

Min Bend Radius

24.8mm









Attenuation




Frequency(MHz)

Typical(dB/100ft)

Max(dB/100ft)

Frequency(MHz)

Typical(dB/100ft)

Max(dB/100ft)

30

2.2

2.4

1500

15.1

16.6

50

2.7

3.0

1800

16.8

18.5

150

4.3

4.7

2000

17.9

19.7

220

5.2

5.7

2500

20.4

22.4

450

7.7

8.5

3000

22.8

25.1

900

11.3

12.4







(LL195-1M)

12 Months

SKU LL195-1M
Barcode # 9328202021052
Brand DOSS
Unit Of Measure Each
