The NP-9600 Series DC Regulated Power Supplies are a completely solid state, compact, well regulated, constant voltage power supplies suitable for service field, hobby & telecommunication equipment use. It provides three different voltages output for different usage.

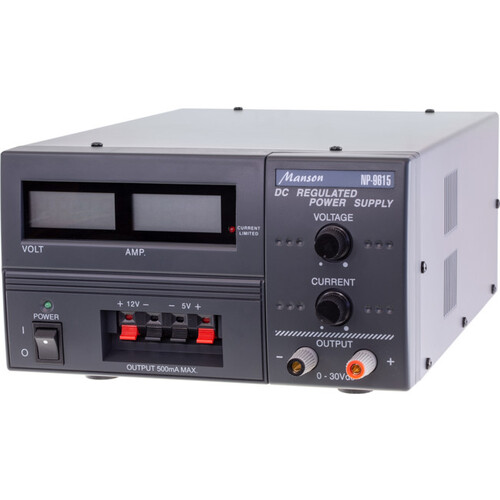

The NP-9615 is designed for general electronic servicing,school electronics, laboratory use and for the hobbyist. Canbe used as either a constant voltage supply with current limiting or as constant current source with voltage limiting. The NP-9615 has three independent outputs, two are of fixed voltage, and one adjustable voltage.

Features

• Overload and Short Circuit Protection:
  Prevent the unit from overload and short circuit. When the unit is under the condition of overload or short circuit, the output current will
  be limited.
• Independent 5V, 12V Easy Snap-On output terminals to make it easy to use for TTL and CMOS circuit testing. The grounding of the output terminals is independent that the output can be connected in series to make a higher output voltage.

• Outputs:
  • 0-30 V adjustable
  • 5 V 500 mA Snap-On
  • 12 V 500 mA Snap-On
• Current Limiting LED Indicator
• Adjustable Current Control
• Overload and Short Circuit Protection
• Galvanized Steel Case
• Polycarbonate Front Panel

Actual product colour: Dark Grey

Specifications
