This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.

The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.

The output voltage level and ON-OFF can be externally controlled via the remote terminal.

It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.

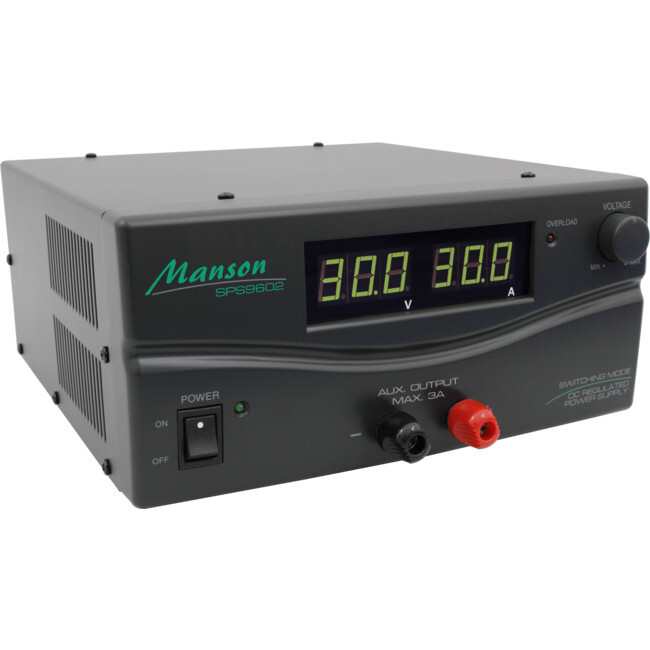

SPS-9602 has a small footprint for its 900W continuous maximum power.

It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.

Features:

• Total max. continuous output current 30A
• Main Output/Remote Sensing/ Remote Control/ terminalsat the back
• Front terminals  3A limiting.
• ( Precise Load Point Voltage )
• Remote Sensing for remote point of regulation.
• Remote control terminals for output voltage adjustment and*on/off"
• 29HR Count Down Timer (Optional) for Output ON/OFF
• Floating Ground Design
• Overload / Over-temperature / Short Circuit Protections
• Constant Current mode with LED indicator prevents overloading
• Variable speed thermally controlled fan
• High RFI stability
• Active power factor correction ( P.E >0.97 )

Specifications:

• Variable Output Voltage: 1- 30Vdc
• Total Rated Output Current (Main Output + Front Output):  30A
• Rated Output Current (Main Output):  30A
• Rated Output Current (Front Output):  3A
• Load Regulation (Main Output): 0.1%+5mV
• Line Regulation (Main Output): 0.05% +3mV
• Ripple & Noise (Peak-Peak): 50mVp-p
• Input Voltage: 230Vac , 50Hz- ( or on request)
• Efficiency: >85%
• Meter Type: LED Meter
• Voltmeter Range: 3 digit display
• Ammeter Range: 3 digit display
• Meter's Accuracy: ±I% +1 count
• Protection Devices: Overload (Constant Current Limiting), Over Temperature, Short Circuit,
  OVP protections
• Cooling System: Variable speed thermally controlled fan
• Special Feature: Remote sensing, Remote output voltage control and *on/off*
• Approvals CE EMC : EN 55022 , LVD : EN 60950
• Dimensions (W:x H xD): 220 x 110" 360 mm (8.7" 4.3" 14 in.)
• Weight: 5.8kgs ( 12.81bs )
• Remarks: Power factor correction >0.95 at optimal load
