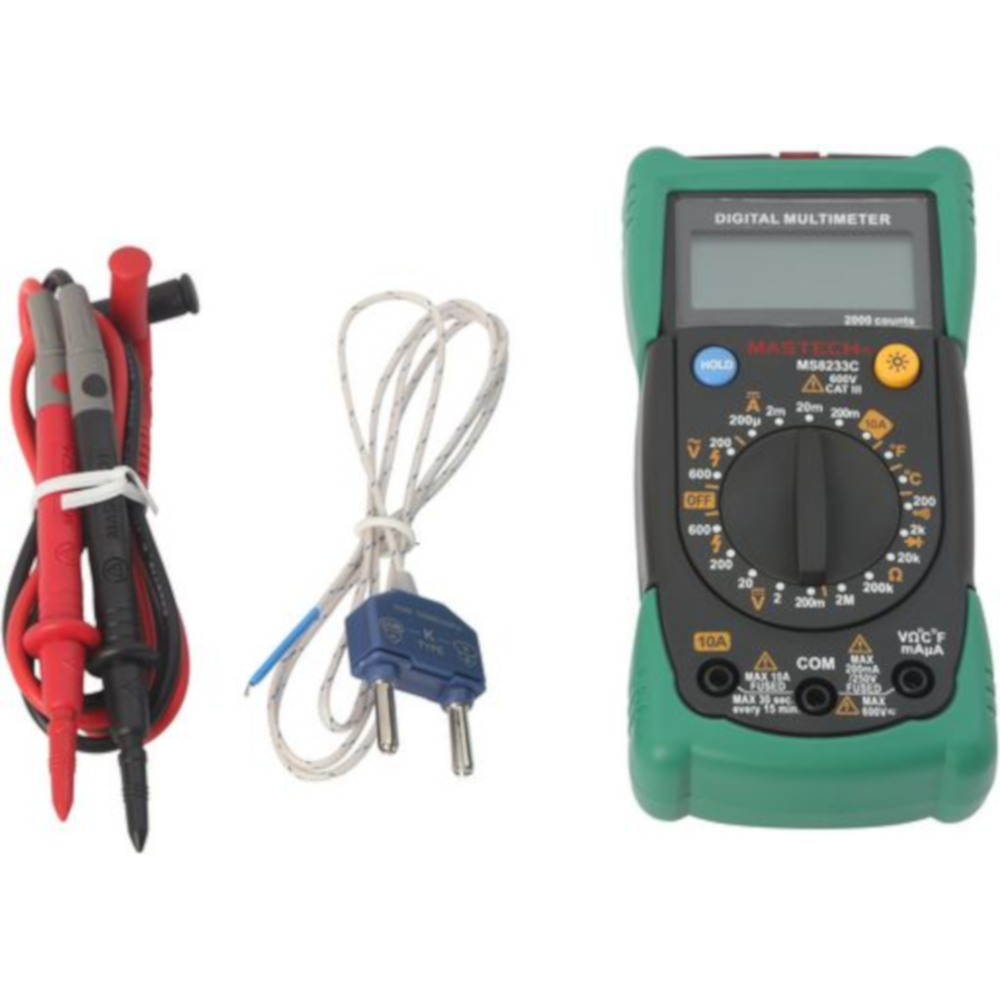

This pocket size digital multimeter allows the user to test voltage, current, resistance, temperature and continuity. The meter also features non-contact voltage detection, data hold and back light to assist with the measurement. It is RoHS compliant; CE ETL CAT II 600V approved. 9V battery, test probes with protective cap and a K-type thermocouple are included. Soft plastic boot protects from drops and bumps.

Pocket size only 140x67x30mm 112g
Test AC/DC voltage and resistance
Test DC current up to 10 amps
Non contact voltage detection LED indicator <30mm
Diode check 2.7V and continuity test <50 Ohm
With data hold and back light buttons
2000 counts LCD Display.
DC Voltage 200mV/2V/20V/200V (Accuracy: ± 0.5% rdg +3), 600V (Accuracy: ± 0.8% rdg +5)
AC Voltage 200V/600V (Accuracy: ± 1.2% rdg +10)
DC Current 200μA/2mA/20mA/200mA (Accuracy: ± 1% rdg +3), 10A (Accuracy: ± 3% rdg +5)
Resistance 200Ω - 20MΩ (± 0.8% rdg +4)
K Thermocouple -20°C to 1000°C (± 2% rdg +2) °C/°F
Diode test: 2.7V.
Continuity buzzer < 50Ω
1x 9V battery included.

(MS8233C)

12 months

SKU MS8233C
Model # MS8233C
Unit Of Measure Each
