Mini Mic Preamplifier

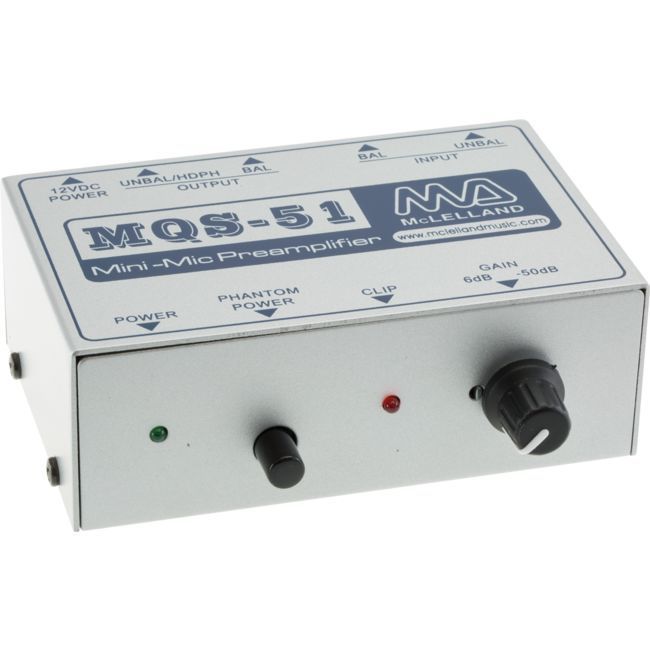

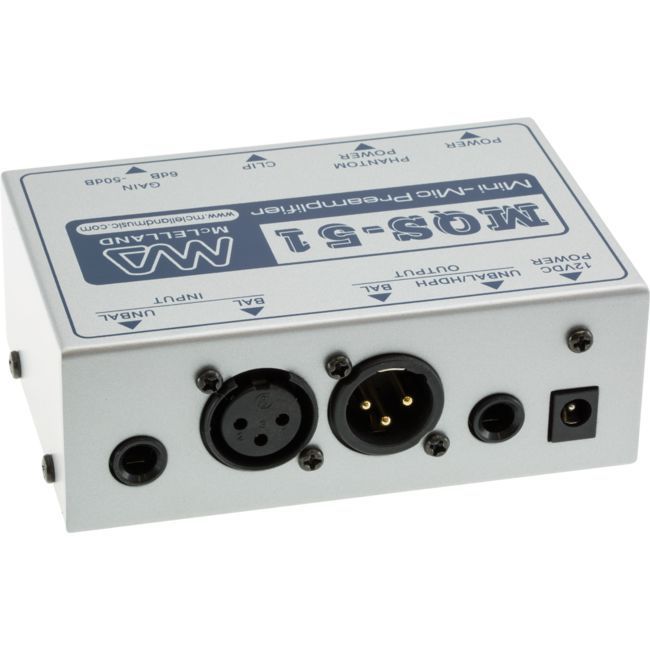

The MQS-51 is designed to provide a simple, compact and inexpensive microphone preamplification for a variety of applications. The unit has both XLR and 1/4" Inputs and Outputs, and a simgle Gain control with a Clip indicator. Phantom powering is included for the use with a condenser microphone. The 1/4" Output is specially designed for use aseither a mono balanced output, or a stereo headphone output.The unit comes with a power adaptor.

Features

  • XLR and 1/4" Inputs and Outputs
  • Gain Control
  • Clip LED indicator
  • 1/4" output drives stereo headphones
  • +36V Phantom power

Specifications

  • Input Impedance: 10K ohm bal; unbalanced
  • Max Input Level: +4dBV XLR (balanced) / +10dBV (unbalanced)
  • Max Gain: 50dB (XLR), 44dB (6.3mm)
  • Phase Shift: <10 deg. 20Hz-20kHz
  • EIN: 129 dB max.
  • THD: <0.01%
  • IMD (SMPTE): <0.01%
  • Power: 12V DC Adapter
  • Size: 113mm x 73mm x 40mm
  • Weight: 349g

(MQS51)

12 month warranty

SKU MQS51
Model # MQS-51
Brand McLELLAND
Unit Of Measure each
