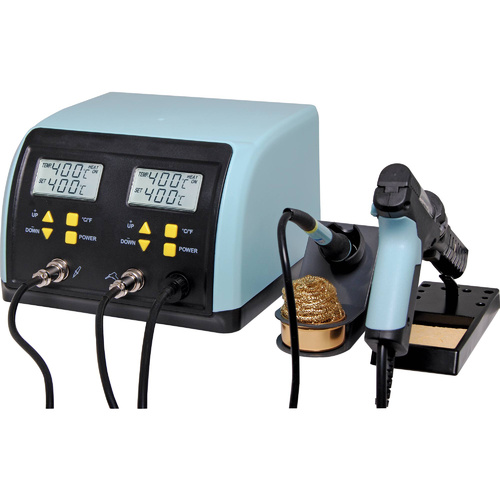

• This combination 60W soldering iron and 90W vacuum desoldering station provides enthusiasts and technicians with everything they need for soldering on the workbench in one compact unit.
• On the desoldering side, a powerful vacuum pump desolders through-hole parts quickly and efficiently.
• Simply place the tip over the solder join and hold down the trigger, the molten solder is sucked off the board and into a canister in the handle for disposal.
• The temperature of the iron is electronically controlled and utilises a ceramic heater to rapidly reach its operating temperature in just 20 seconds.
• The iron includes a burn resistant rubber lead and ergonomic ‘pencil’ design to ensure your comfort and safety.

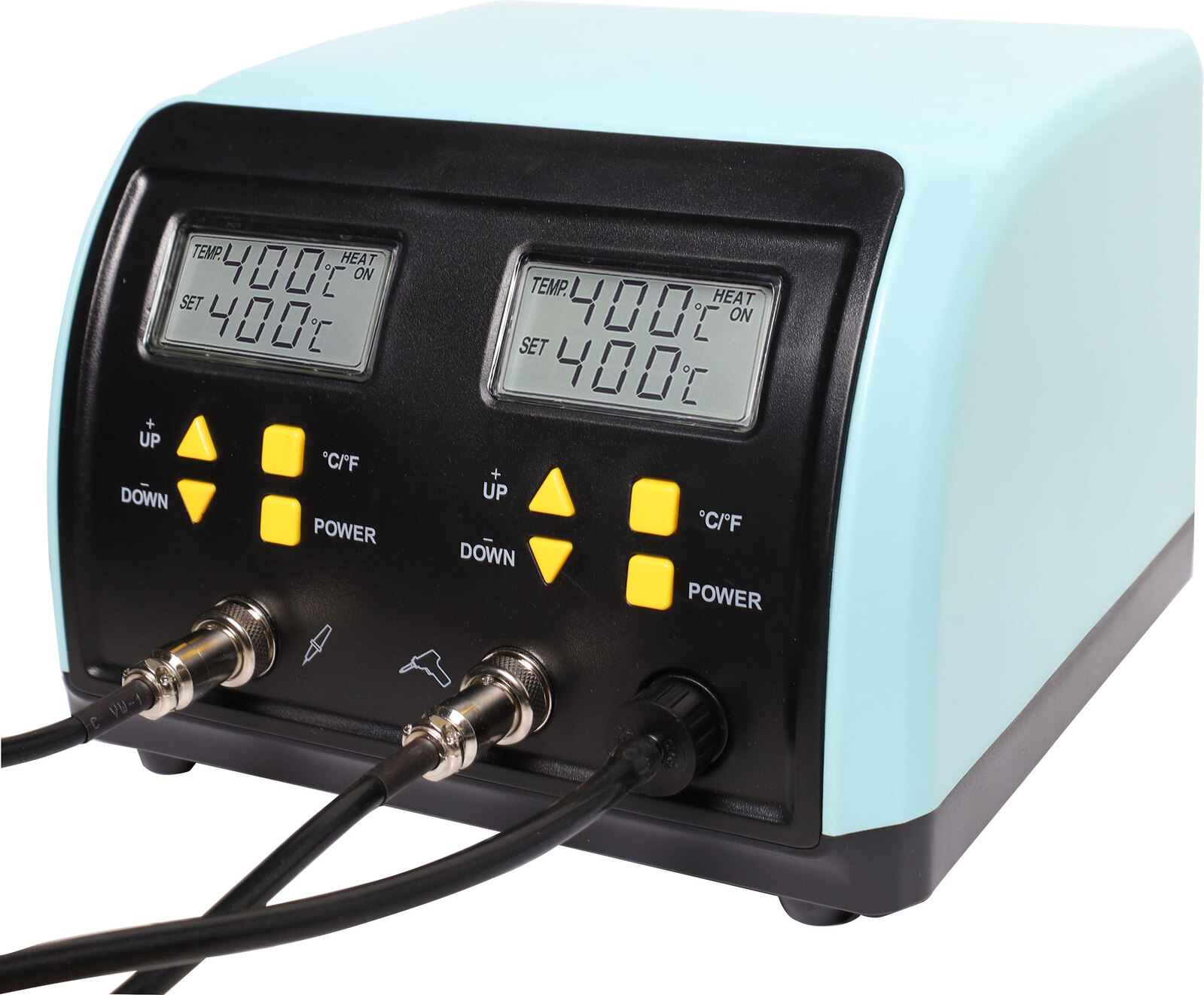

• The easy to read white backlit display on each unit provides a useful indication of set temperature and heater temperature.
• The soldering iron and desoldering gun units can be switched on/off individually.
• Includes 0.2mm fine point soldering tip. Includes 1.0, 1.2 and 1.5mm desoldering tips.

Features

• Combination 60W soldering iron and 90W soldering gun
• Ceramic heating elements
• Burn proof rubber leads
• 160°C to 480°C temperature adjustable
• Dual reading backlit display
• Easy clean solder reservoir
• High suction vacuum pump
• Includes three desolder tips & nozzle cleaners
• ESD safe
• Slimline pencil iron handle with rubberised grip

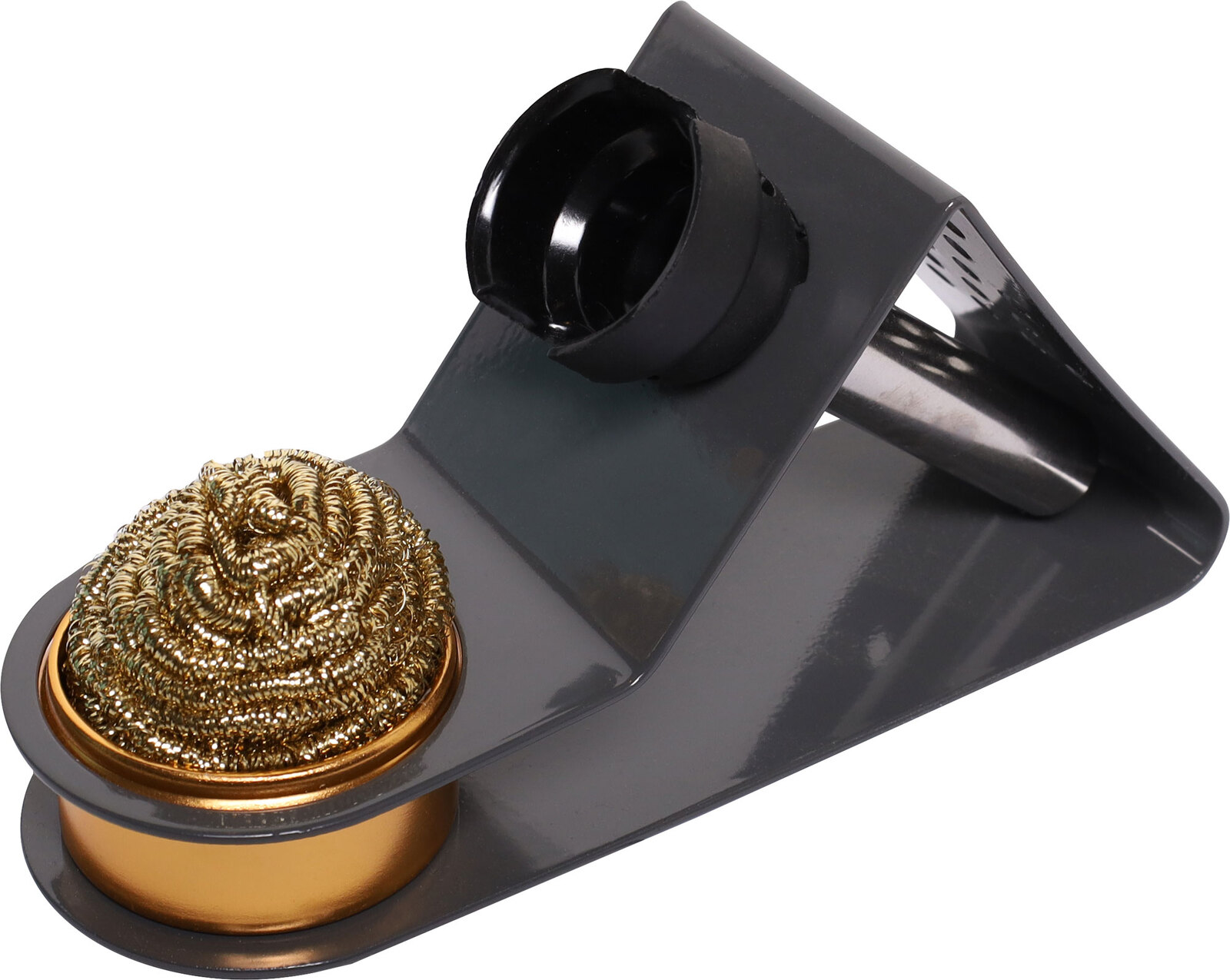

• Two individual stands with integrated tip cleaners
• RoHS compliant

Specifications

• Voltage input:    220 - 240V AC
• Heater: 24V ceramic element
• Soldering nominal power:    60W
• Desoldering nominal power: 90W
• Temperature range:    160°C to 480°C
• Tip to ground resistance:    <0.1 Ohm
• Soldering heat up time:    ≈22 sec to 400°C
• Desoldering heat up time:    ≈80 sec to 400°C
• Dimensions:    220W x 215D x 160Hmm
• Weight:    6kg
