Overview

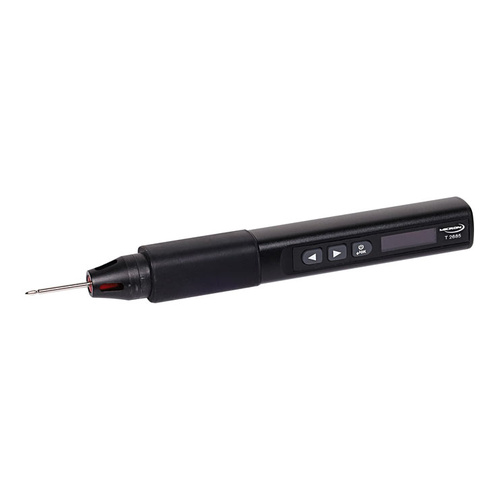

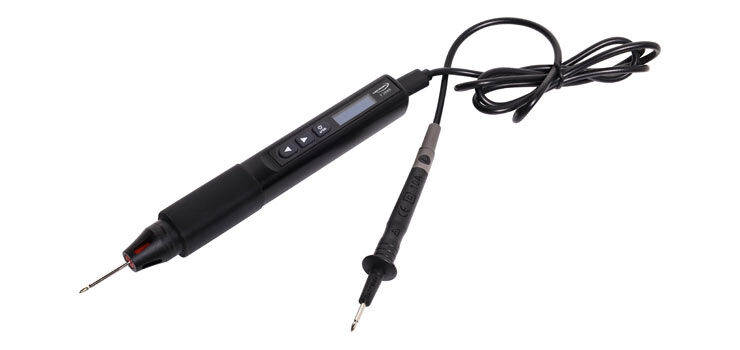

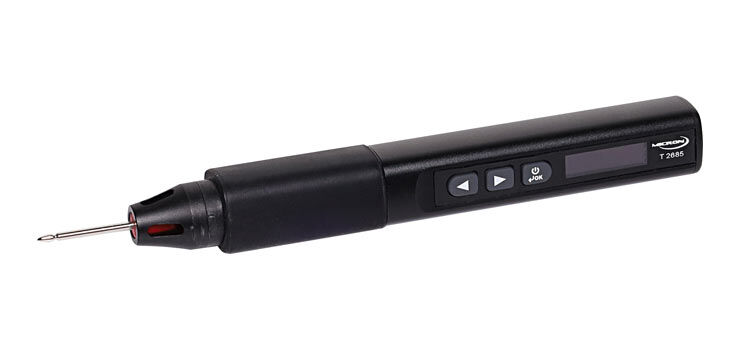

Combines precision soldering with built-in multimeter functions in one sleek device. Powered by an internal rechargeable lithium battery or via a universal power adapter/power bank, it delivers reliable performance without the need for mains power. The fast-heating soldering tip reaches melting temperature quickly, while the built-in multimeter functions let you measure voltage, resistance, and continuity. A clear OLED display ensures easy operation. The compact, metal-cased design with a universal soldering iron handle is both durable and portable. Ideal for on-the-go repairs, DIY projects, and field use.

Features

• 2-in-1 Design: Combines soldering iron and multimeter in one tool
• Portable Power Options: Runs on internal lithium battery or power bank/adapter
• Quick Heating Tip: Reaches soldering temperature quickly
• Multimeter Functions: Measures voltage, resistance, and continuity
• Long Runtime: Extended working time in measurement mode
• OLED Display: Clear and easy-to-read interface
• Durable Build: Compact metal casing with universal handle
• Switchable Parts: Interchangeable soldering tips and measurement probes

Specifications

• Display Screen: OLED High Definition
• Measurement Range: Automatic
• Test Rate: 3 times/second
• Auto Power-off time: 5min, 10min, 15min, 20min, OFF
• Soldering Iron automatic sleep mode: After 5 min of inactivity
• Soldering iron temperature: 100°C to 450°C
• Working Voltage: DC 5V to 20V Optional
• Power: 75W Max
• Supports fast charging protcol: PD/QC
• Power Supply port: Type-C
• Soldering Iron tip temperature calibration: Supported
• Soldering iron tip model: T65
• Low Battery Warning: Yes
• Dimensions: 196 x 19 x 19mm
• Weight: 80g
• Battery Type: Lithium Polymer Rechargeable Battery 3.7V 800mAh
• Material: Aluminium, ABS, Silicone
• Operating Temperature: 0 to 40°C
• Operating Humidity: <75%
• Storage Temperature: -20 to 60°C
• Storage Humidity: <80%

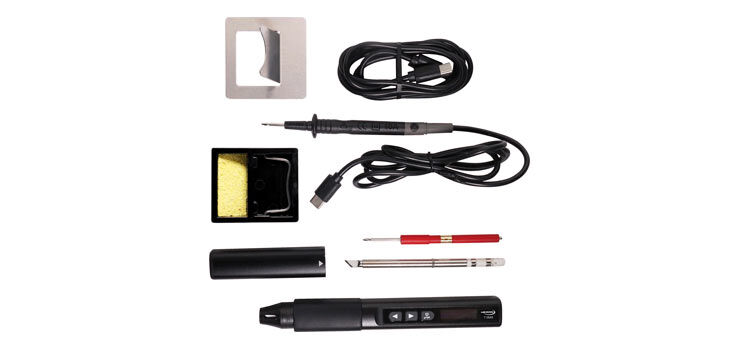

Kit Contents:

• 1x Body Handle
• 1x Soldering Tip
• 1x Multimeter tip
• 1x Multimeter Test Lead
• 1x USB C to USB C Charging Cable
• 1x Soldering Stand
• 1x Solder tip cleaner
• 1x User Manual
