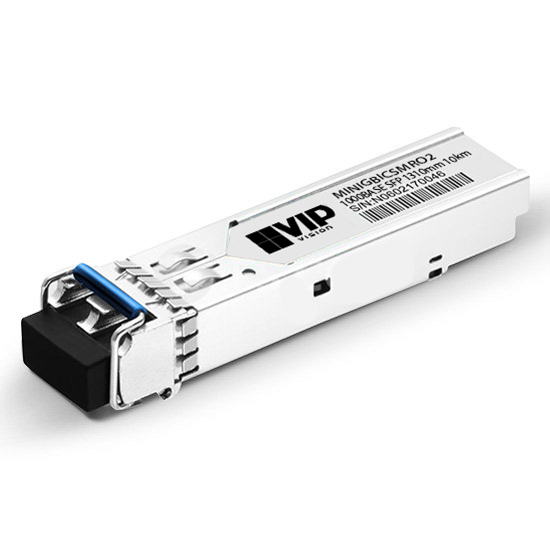

Mini GBIC / SFP Single-mode Fibre Adapter (SMF)

The SFPSM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Features

  • Mini GBIC / SFP optical fibre adapter
  • Transfer data over optical fibre at up to 1.25Gbps
  • SFP (Small Form-factor Pluggable)
  • Compatible with SMF (single mode fibre)
  • 1310nm VCSEL laser transmitter
  • Hot-pluggable, allowing for installation and removal while the system is running
  • Built-in digital diagnostic functions, including optical power monitoring

Specifications

Interface

  • Cable Type: Single-mode Fibre
  • Form Type: SFP (Small Form-factor Pluggable)
  • Interface: LC duplex
  • DOM Support: Yes
  • Max Bit Rate: 1.25Gb/s
  • Transmitter / Receiver
  • TX Power: -9.5 ~ -3dBm
  • Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel
  • Wavelength: 1310nm
  • Receiver Sensitivity: < -21dBm

Environment

  •  Power Supply: 3.3VDC / 300mA
  • Operating Environment: -40 to 85°C / RH95% (max)
  • Max Cable Distance: 10km

(SFPSM1)

SKU SFPSM1
Model # SFPSM1
Brand VIP Vision
