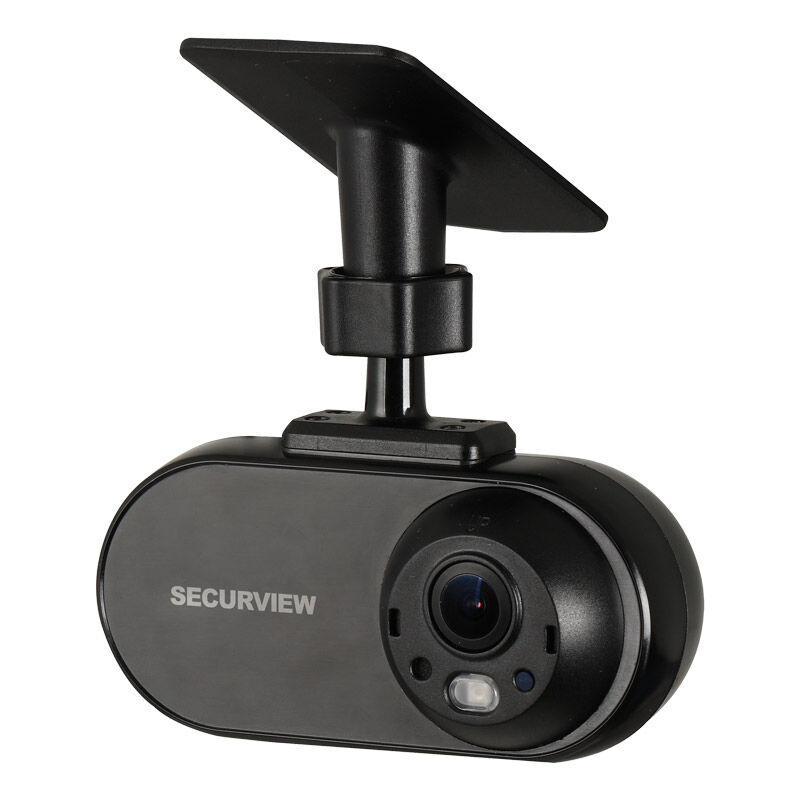

Designed for windscreen mounting, the VSCVIM-2TT is a dual lens camera capable of simultaneously recording Full HD evidence inside and outside the vehicle. Equipped with a built-in microphone and features durable shock resistant housing.

Features:

•  Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
•  Fixed lens - 109° external and 132° internal
•  Innovative dual-lens design records 2 images at once
•  HDCVI / AHD / TVI / Analog switchable
•  Smart in-vehicle infrared illumination up to 3m
•  Features built-in microphone for audio evidence
•  4-in-1 aviation connector cable transmits power, audio, video & ground
•  Slimline design with shock resistant housing
•  Easy installation to the inside of the windscreen

Specifications

General

• Image Sensor : 1/2.7” 2.0 Megapixel CMOS
• Max. Resolution : 2.0 Megapixel
• Effective Pixels : 1920 (H) x 1080 (V)
• Signal Noise Ratio : > 65dB

Camera

• Lens : Front: 2.8mm F2.0 Fixed Lens / Rear: 2.1mm F2.0 Fixed Lens
• Lens Type : Fixed
• Angle of View : Front: 109° (H), 58° (V), 127° (D) / Rear: 132° (H), 69° (V), 164° (D)
• Focus : Fixed Focus / 0.5m Min. Focus Distance
• Minimum Illumination : 0.02 Lux at F2.0 (Colour) / 0 Lux IR Active
• Electronic Shutter : 1/25 ~ 1/100,000s
• Day/Night : Front: Color / Rear: Auto (IRC)I
• Infrared Range : Front: 3m Infrared / Rear: N/A
• White Balance : Auto / Manual
• Noise Reduction : 2D
• Gain Control : Auto
• Lighting Compensation : BLC / HLC / Digital WDR

Video

• Resolution : 1080p (1920 x 1080)
• Frame Rate : 25fps (1080p and lower)
• Transmission Distance : 3m / 6m / 12m / 18m heavy duty cables available

Interface

• Audio Input : Built-in microphone
• Alarm Interface : N/A
• Video Output : 2 x M12 HDCVI output (Yellow: front / Black: rear)
• Modes Supported : HDCVI, AHD, HDTVI & Composite
• Mode Switching : OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
• Synchronisation : N/A
• OSD Menu : Support

Environmental

• Ingress Protection : N/A
• Vandal Resistant : N/A
• Series : Mobile
• Housing : Plastic
• Camera Type : Vehicle
• Tri-Axis Mounting : No
• Power Input : 12VDC ±30%
• Power Consumption : <1.9W
• Dimensions : 116 x 100 x 50mm
• Weight : 0.17kg
• Operating Environment : -30° to 60°C / RH95% (max)
