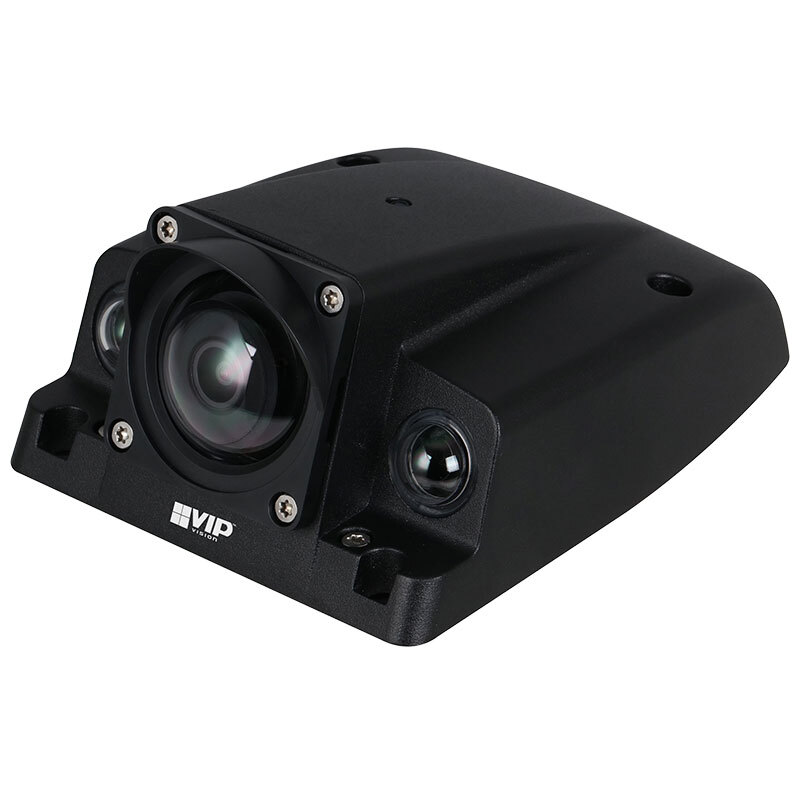

Mobile Series 4.0MP Heavy Duty Vehicle Camera

Mobile Series 4.0MP Heavy Duty Vehicle Camera VSIP4MPEIRAT

Designed for surveillance in buses, trains and other large vehicles, the VSIP4MPEIRAT delivers high quality footage with true WDR and back/highlight compensation, all in a highly durable casing resilient against water, dust and vandalism.

Features

Streams up to 4.0MP (2688 x 1520) at 25fps
2.8mm F2.0 fixed lens with 104° viewing angle
Smart infrared illumination up to 30m range
Back/highlight compensation & true WDR (120dB)
H.265 encoding for efficient storage & streaming
3D digital noise reduction & auto white balance
MicroSD slot up to 128GB & Power over Ethernet
Shock resistant housing withstands heavy vibration
IP6K9K rated to withstand high pressure / steam jet spray and prevents dust and dirt egress

Specifications

Camera

Image Sensor : 1/3" 4.0 Megapixel Progressive Scan CMOS
Max. Resolution : 4.0 Megapixel
Effective Pixels : 2688 (H) x 1520 (V)
RAM / ROM : 512MB / 32MB
Ultra Low Light Colour : No
Min Illumination : 0.3 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR On)
S/N Ratio : > 50dB
Infrared : Yes
Infrared System : 2 x Infrared LED, 30m range, Auto/Manual on/off control

Lens

Lens Type : Fixed
Lens / Iris : 2.8mm F2.0 Fixed Lens
Field of View : Horizontal: 104°, Vertical: 55°
Focus : Fixed

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)

Video

Resolution : 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) : 4.0MP (1 ~ 25fps)
Frame Rate (Sub) : D1 (1 ~ 25fps)
Frame Rate (Third) : 720p (1 ~ 25fps)
Video Compression : H.265 / H.264
Bit Rate : H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (IRC) / Colour / B&W : Lighting Compensation
BLC / HLC / WDR (120dB) : Smart Scene Adaptive (SSA)
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control : Auto / Manual
Noise Reduction : 3D DNR
Picture Control : N/A

IVS

IVS : Yes
Intelligent Functions : Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)

Network

Ethernet : RJ45 (10/100 Base-T)
Protocol : HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method : Unicast / Multicast
Max. User Access : 10 Users / 20 Users
RTMP Support

Interface
