Overview

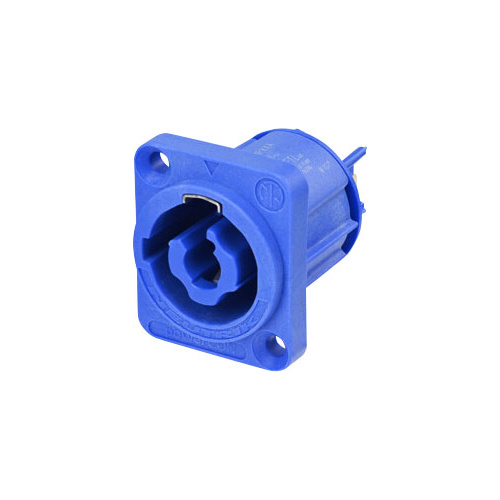

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications.
NAC3MPXXA. SAA approved.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.

Features

• Locking 250 V ac appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling

Specifications

Electrical

• Contact resistance: ? 2 m?
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 10 G? (initial)
• Number of electrical contacts: 2 + PE
• Rating Europe EN 60320-1: 16 A 250 V AC
• Rating USA UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC

Mechanical

• Lifetime: > 5000 mating cycles
• Wiresize: 2,5 mm²
• Wiresize: 12 AWG

Material

• Contact plating: Ag
• Locking element: Stainless steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy

Environmental

• Flammability: UL 94 V-0
• Protection class: IP 20
• Temperature range: -30 °C to +80 °C

Dimensions:
