Overview

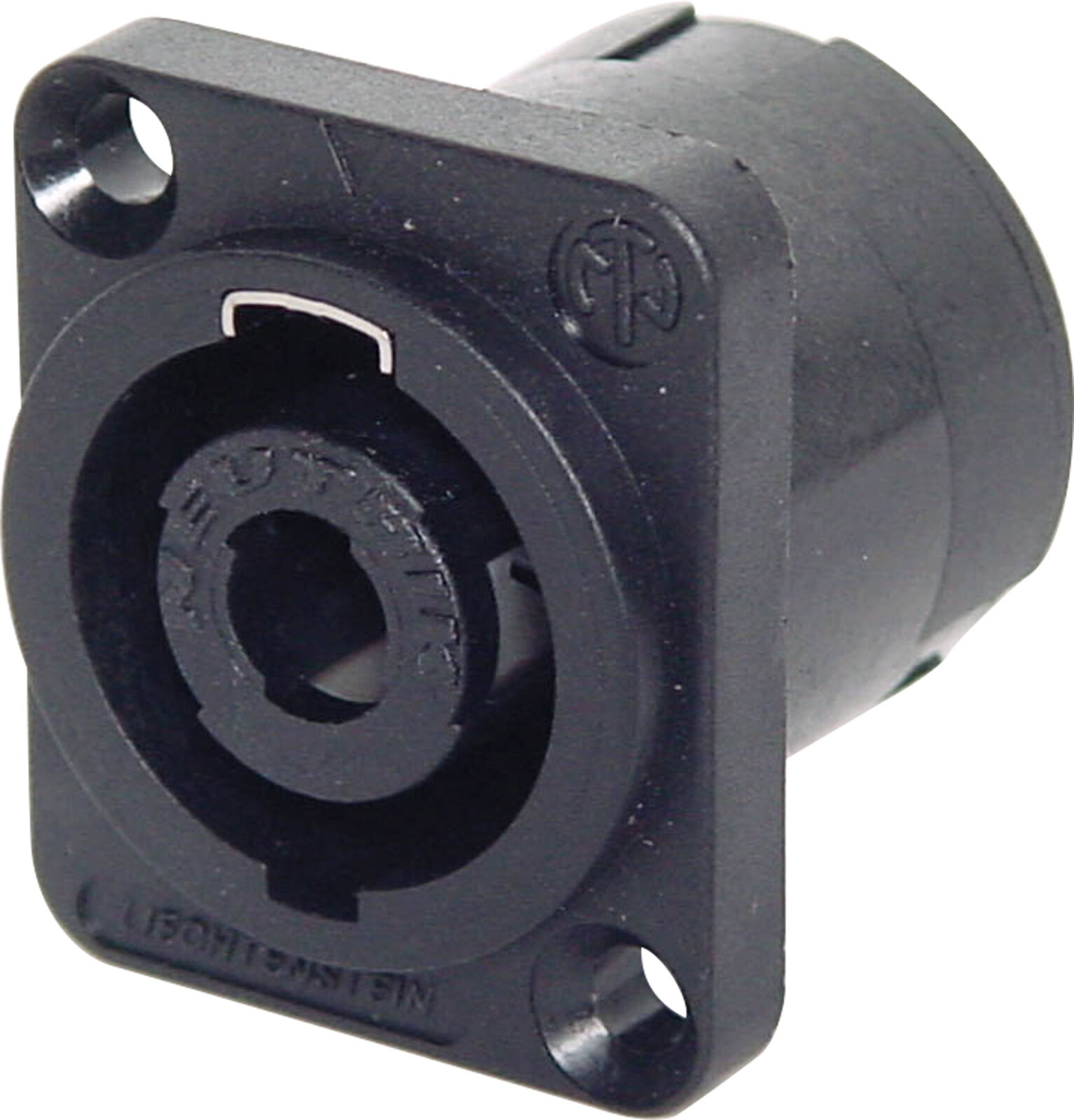

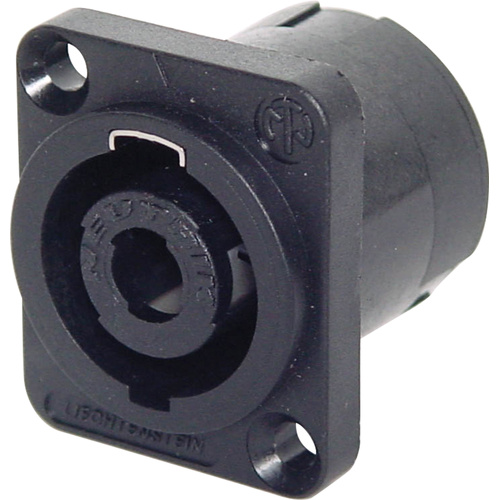

Heavy duty 4 pin Neutrik SpeakOn NL4MP connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine SpeakOn connector manufactured by Neutrik.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features

  • Current rating 30A RMS
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimised for speaker applications

4 Pin Speakon® Wiring Details


SpeakOn® or Lockable Speaker Connectors can be wired up in a variety of ways for different applications. Two positive and two negative pins are provided allowing two channels of audio to be passed via a single connector. In single channel applications only +1 and -1 will be connected.

 Specifications

Electrical

  • Contact resistance: ? 3m? (inner) (after lifetime)
  • Dielectric strength: 4kVdc (peak)
  • Insulation resistance: >1 G? (after damp heat)
  • Rated current per contact: 30A rms continuous
  • Rated current per contact: 40A audio signal, duty cycle 50 %
  • Rated voltage: 250V (Insulation)
  • Lifetime: >5000 mating cycles
  • Locking device: Quick Lock
  • Chassis shape: D

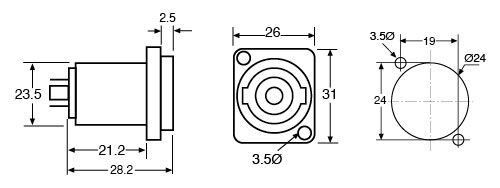

  • Layouts: Standard hole position, through holes

Material

  • Contact plating: 4µm Ag
  • Contacts: Bronze (CuSn6)
  • Shell: Polyamide (PA 6 30 % GR) black

Environmental

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C

(P0792)

SKU P0792
Model # P0792
Barcode # 9321758118788
Brand NEUTRIK
