Nextivity CEL-FI GO G41 Universal Ceiling-Wall Pack inc. LPDA RPR-CF-00945

Upgrade your cellular coverage with the CEL-FI GO G41-JE, the latest in 4G repeater technology. Boasting higher output power for an expansive coverage area, it supports Telstra, Optus, and Vodafone-TPG. With added features like carrier switching and remote management, it's ideal for in-building applications.

CEL-FI GO G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model, G41 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.

The G41 operates on more frequency bands and can be easily switched between Telstra, Optus, and Vodafone-TPG (one carrier at a time) should you change service providers.

CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra, Optus, and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.

Expanding on G32’s dual-band functionality, G41 supports carrier aggregation with 40 MHz of relay bandwidth.

FEATURES

700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone)
3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but is currently not enabled or approved)
Carrier Switching using WAVE App between Telstra, Optus, or Vodafone - one carrier at a time
Up to 3000 m2 coverage area
Two bands simultaneous relay
Total System Relay Bandwidth – Up to 40 MHz
Remote Monitoring, Control, and Alert Capabilities via WAVE Portal (for approved installers)
Ethernet Port for connection to internet source for live monitoring
Powertec exclusive offer - 1-Year extra FREE WARRANTY (for a total of 3 years)

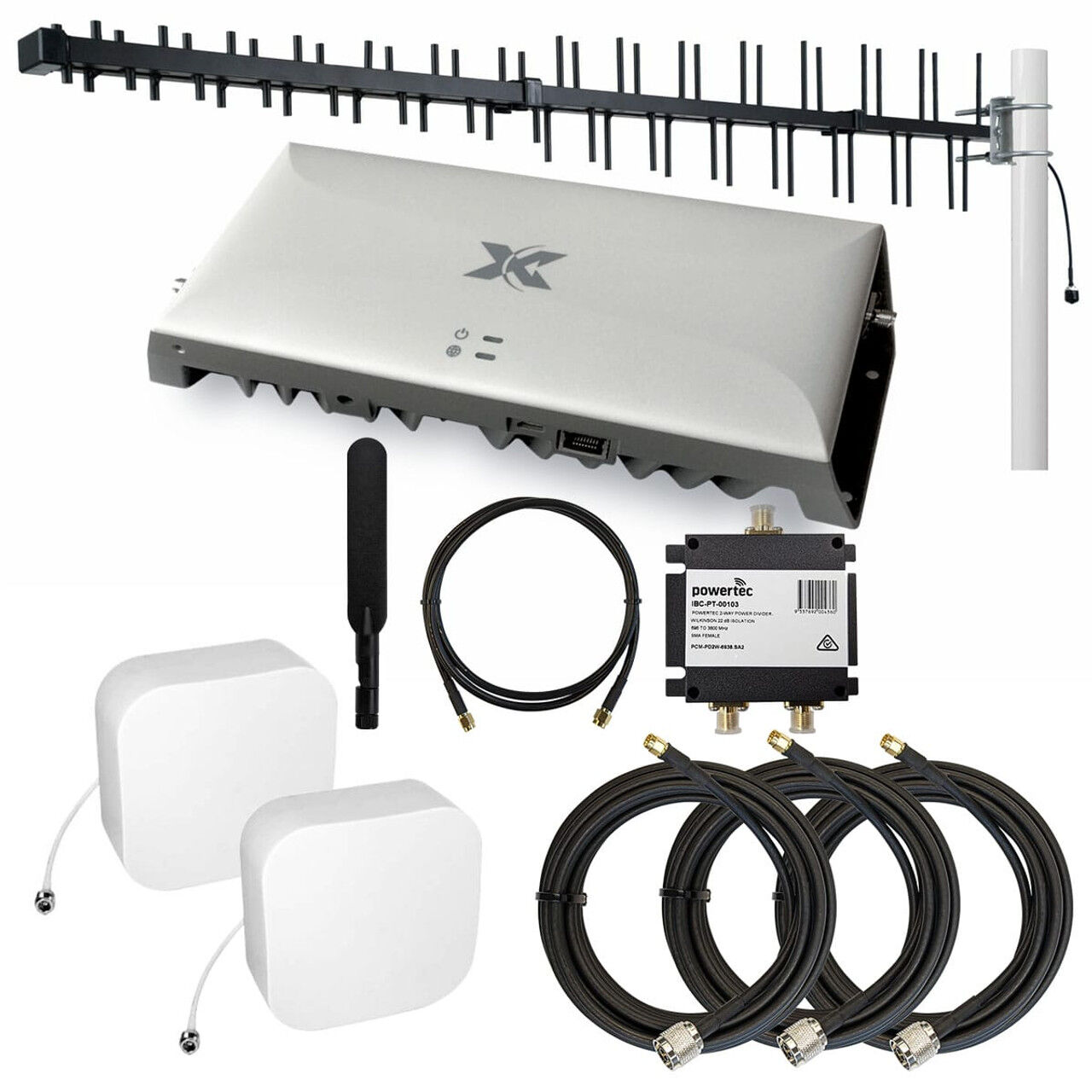

INCLUDES

2 x Universal Ceiling-Wall Antenna 698-4000MHz
LPDA 698-4000MHz
3 x PTL-240 10m Coaxial Cable N male to SMA Male
1m Ethernet cable
240v Power Supply

Supports 5G DSS on Telstra, Optus and Vodafone

This is a type of 5G that layers both 4G and 5G on top of each other sharing the same frequency.
The WAVE App will not display 5G is being boosted, but your handset will have boosted 5G signal and a 5G icon.

Specifications

Frequency Bands	1/3/5/7/8/20/28L/28U/40
Relay Channel Bandwidths (MHz)	5/10/15/20
Networks	2G/3G/4G/5G
Network Protocols	GSM/WCDMA/LTE/DSS/NR
Network Selection	Automatically best available (WAVE App for manual setting)
Duplex Modes	FDD & TDD
# of Relay Bands (MHz max.)	2
Relay Bandwidth (MHz max.)	20 + 20
Output Downlink Power (All Bands) (dBm max.)	20
Output Uplink Power (Bands 1/3/5/7/40) (dBm max.)	22
Output Uplink Power (Bands 8/20/28L/28U) (dBm max.)	20
System Gain (dBm max.)	100
Enterprise-Grade Echo Cancellation (dB min.)	30
Return Loss (dB typ.)	-8
Impedance (Ω nom)	50
