Nextivity CEL-FI GO G51 Building Cellular LPDA Pack inc. Wall Mount RPR-CF-00983

The Nextivity CEL-FI GO G51 is a powerful 4G/5G signal booster designed to improve cellular coverage in large residential and medium-sized commercial spaces. Suited to urban areas where a 5G 3500 signal is available to take advantage of 5G data speeds and increased user capacity.

The G51 also supports 4G LTE data speeds, so you can enjoy fast internet connectivity even in areas with weak signals. Plus, with its easy-to-install design and compact size, the G51 is a convenient solution that won’t take up much space in your home or office.

If you’re tired of dropped calls, slow data speeds, and unreliable cellular coverage, the Nextivity G51 is a great investment. With its advanced signal-boosting technology and broad carrier compatibility, it’s sure to improve your cellular experience and keep you connected when you need it most.

FEATURES:

Relays two channels simultaneously:
1st Relay Channel: 5G 3500 (100MHz)
2nd Relay Channel: one 3G or 4G band (5/10/15/20MHz)
Carrier Switching using WAVE App between Telstra or Optus – one carrier at a time (Vodafone approval pending)
Up to 3000 m2 coverage area
Voice and Data support on 4G/5G
Suited for those in a 5G 3500 coverage area (G41 is more suitable for areas outside of a 5G 3500 coverage area as it supports 2 x 4G band relay)
Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip, delivering industry-leading and unconditionally network safe performance
Establishes network-safe uplink power in real-time and automatic uplink muting when no active user equipment is detected
Ethernet Port for remote monitoring and management with Nextivity WAVE Portal and WAVE App

Ideal for Boosting Mobile Signal in:

Large Homes
Single or Multi-Level Commercial Buildings
Government Buildings
Medical and Nursing Homes
Infill 5G coverage for Hotels/Shopping Centres/Hospitals/Conference Centres
Underground Parking
Factories and Manufacturing
Warehouses and Logistics

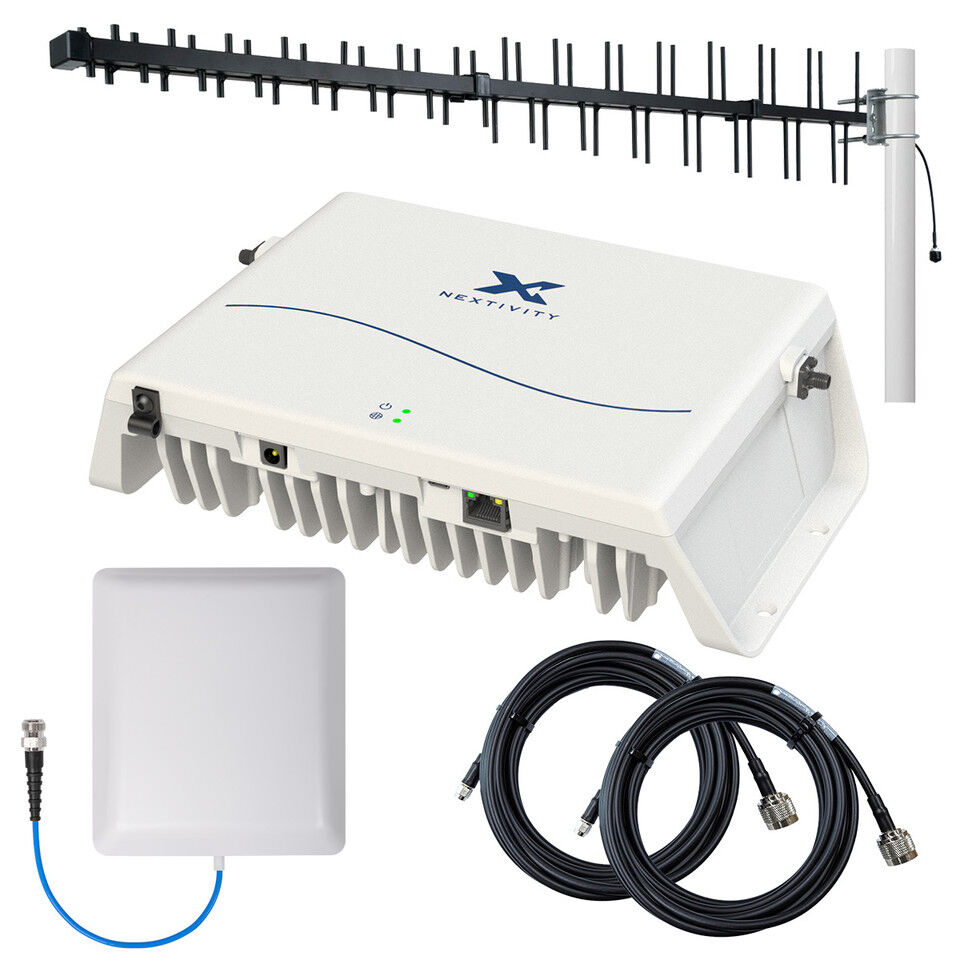

PACK INCLUDES:

Nextivity CEL-FI GO G51 Stationary Repeater - Switchable between Telstra, Optus, and Vodafone (Pending approval) - (one carrier at a time)
Wall Mount 698-4000MHz Panel Antenna -150dBc PIM
LPDA Antenna 698-4000MHz
PTL-240 10m + 6m Coaxial Cable N male to SMA Male
1m Ethernet cable
240v Power Supply

Specifications
Frequency Bands	n78 and 1/3/5/7/8/20/28L
Relay Channel Bandwidths (MHz)	100 and 5/10/15/20
Networks	2G/3G/4G/5G
Network Protocols	GSM/WCDMA/LTE/DSS/NR
Network Selection	Automatically best available (WAVE App and WAVE Portal for manual setting)
Network Operator	Configured to authorized operator PLMN-IDs
Duplex Modes	FDD and TDD
# of Relay Bands (max.)	2
Relay Bandwidth (MHz max.)	100 + 20
Output Downlink Power (Bands 1/3/5/7/8/20/28L) (dBm max.)	20 (16 in U.K.)
Output Downlink Power (Band n78) (dBm max.)	27
Output Uplink Power (Band n78) (dBm max.)	24
Output Uplink Power (Bands 1/3/7) (dBm max.)	22
Output Uplink Power (Bands 5/8/20/28L) (dBm max.)	20
System Gain (dB max.)	100
Enterprise-Grade Echo Cancellation (dB min.)	30
Return Loss (dB typ.)	-8
Impedance (Ω nom.)	50
