Nextivity CEL-FI GO G51 Building Repeater LPDA Pack, Ceiling Dome RPR-CF-00984

This powerful booster delivers industry-leading signal gain of up to 100 dB, overcoming mid-band 5G NR coverage challenges. With compact, user-friendly design and no manual configuration required, G51 is perfect for small to medium-sized buildings. It's Australian operator approved, ensuring better voice quality, 5G data speeds, and fewer dropped calls. The G51 supports various 3G/4G and 5G cellular networks.

Experience unmatched 5G connectivity with Nextivity GO G51 Stationary Repeater! Boost both 4G and 5G signals indoors with up to 100 dB signal gain. Say goodbye to dropped calls and slow data speeds. This compact, user-friendly repeater covers up to 3000 m2 and supports carrier switching. Perfect for small- to medium-sized buildings, it's Australian operator approved and ensures better voice quality and 5G speeds. No manual configuration required. Invest in reliable 5G coverage today!

Features:

Relays two channels simultaneously:
- 1st Relay Channel: 5G 3500 (100MHz)
- 2nd Relay Channel: one 3G or 4G band (5/10/15/20MHz)
Carrier Switching via WAVE App between Telstra or Optus - one carrier at a time (Vodafone approval pending)
Up to 3000 m2 coverage area
Voice and Data support on 4G/5G
Suited for those in a 5G 3500 coverage area (G41 is more suitable for areas outside of a 5G 3500 coverage area as it supports 2 x 4G band relay)
Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip, delivering industry-leading and unconditionally network safe performance
Establishes network safe uplink power in real-time and automatic uplink muting when no active user equipment is detected
Ethernet Port for remote monitoring and management with Nextivity WAVE Portal and WAVE App

Ideal for Boosting Mobile Signal in:

Large Homes
Single or Multi-Level Commercial Buildings
Government Buildings
Medical and Nursing Homes
Infill 5G coverage for Hotels/Shopping Centres/Hospitals/Conference Centres
Underground Parking
Factories and Manufacturing
Warehouses and Logistics

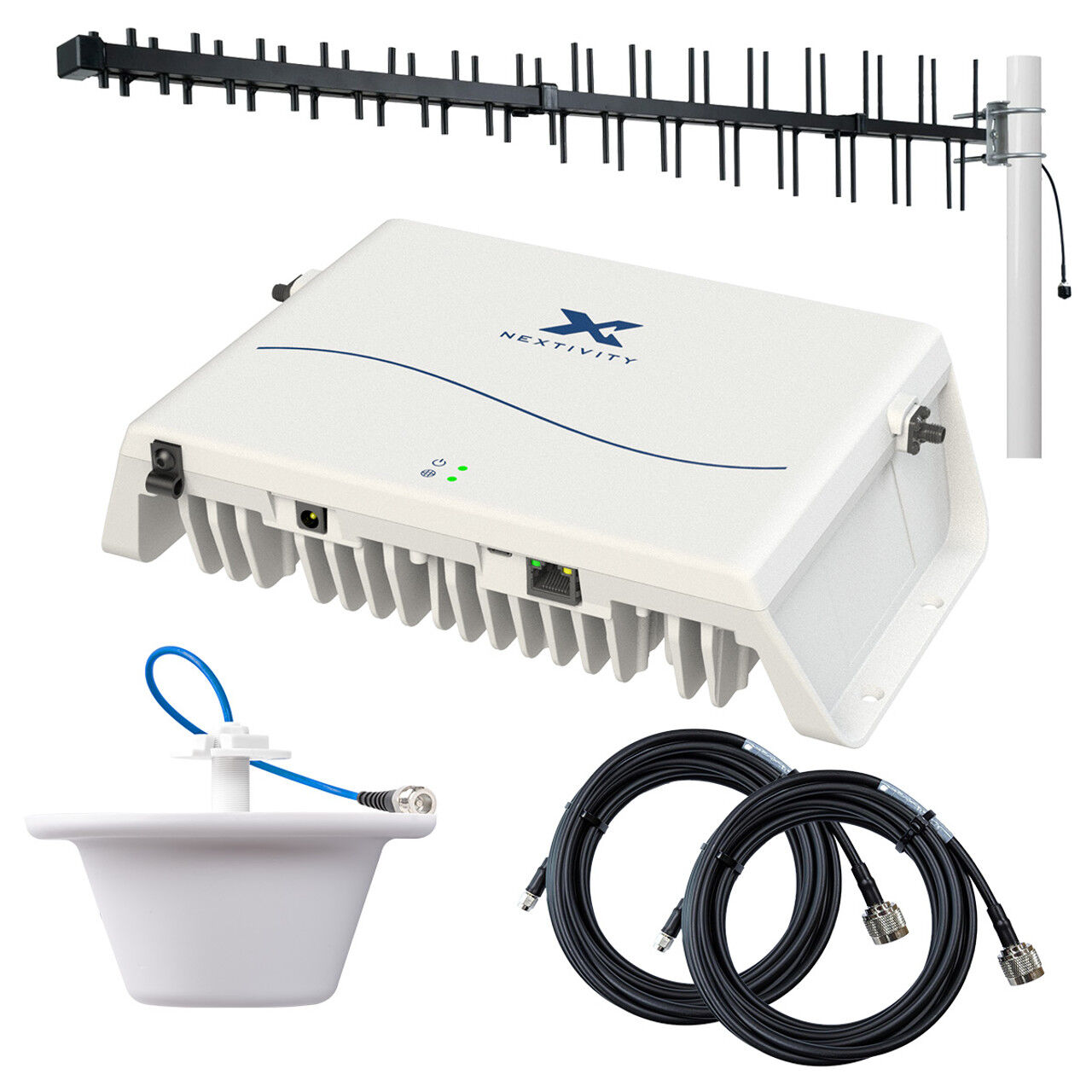

PACK INCLUDES:

Nextivity CEL-FI GO G51 Stationary Repeater - Switchable between Telstra, Optus, and Vodafone (Pending approval) - (one carrier at a time)
Ceiling Dome 698-4000MHz Antenna -150dBc PIM
LPDA Antenna 698-4000MHz
PTL-240 10m + 6m Coaxial Cable N male to SMA Male
1m Ethernet cable
240v Power Supply

Specifications
Frequency Bands	n78 and 1/3/5/7/8/20/28L
Relay Channel Bandwidths (MHz)	100 and 5/10/15/20
Networks	2G/3G/4G/5G
Network Protocols	GSM/WCDMA/LTE/DSS/NR
Network Selection	Automatically best available (WAVE App and WAVE Portal for manual setting)
Network Operator	Configured to authorized operator PLMN-IDs
Duplex Modes	FDD and TDD
# of Relay Bands (max.)	2
Relay Bandwidth (MHz max.)	100 + 20
Output Downlink Power (Bands 1/3/5/7/8/20/28L) (dBm max.)	20 (16 in U.K.)
Output Downlink Power (Band n78) (dBm max.)	27
Output Uplink Power (Band n78) (dBm max.)	24
Output Uplink Power (Bands 1/3/7) (dBm max.)	22
Output Uplink Power (Bands 5/8/20/28L) (dBm max.)	20
System Gain (dB max.)	100
Enterprise-Grade Echo Cancellation (dB min.)	30
Return Loss (dB typ.)	-8
Impedance (Ω nom.)	50
