Brand New

Selling Unit EACH

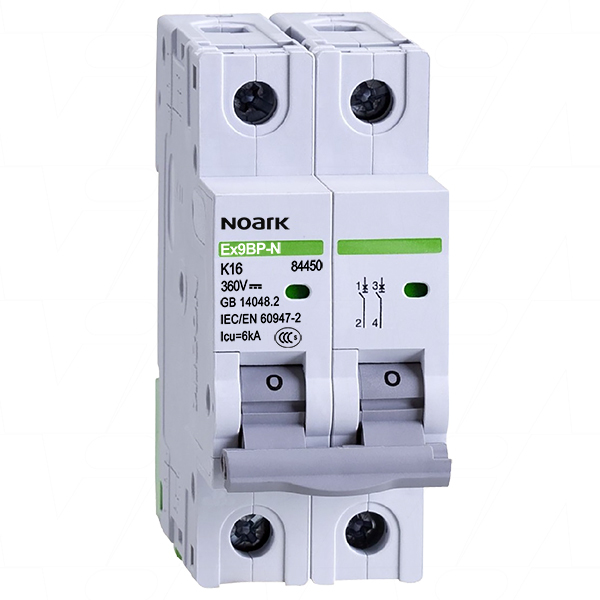

Description N84450 MCB EX9BP-N 16A 360V 2 Pole DC Circuit Breaker
Application Solar, Automation, Control, Telecommunications, DC circuit applications
Original Brand Noark 10000147
Voltage 360V
Size 16A
Width 36mm
Height 89mm
Length/Breadth/Depth 74mm
Weight 240g
Brand

Noark Miniature 360V DC Circuit Breakers (Non-polarised)

Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 16A, in solar, automation, control, telecommunications, and many other DC circuit applications.

Specifications
Article Code
 10000147
Noark Series
 Ex9BP-N2P K 16A 360VDC
Poles
 2 (180VDC per pole)
Current Rating (A)
 16A
Voltage (Max.)
 360VDC
Voltage (Min.) 12VDC
Rated Breaking Capacity 6kA
Curve Type
 K
Rated Insulation Voltage (VDC) Ui
 1000VDC
Terminal Capacity
 35 mm²
Terminal Torque (Nm)
 2-3.5Nm
Mounting
 35mm Din Rail
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2, SAA101238EA

(N84450-2P-MCB16A360VDC)

SKU N84450-2P-MCB16A360VDC
