one - blue cat6a f/utp bulk network cable

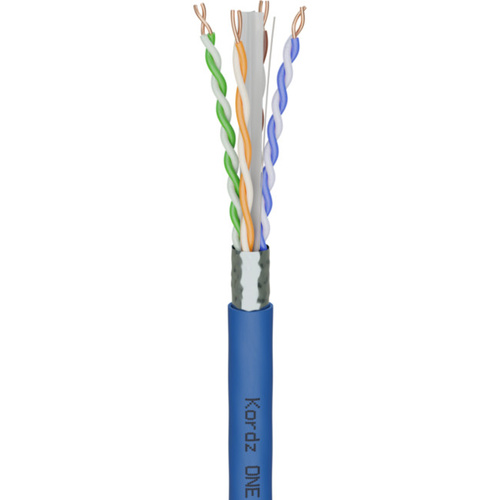

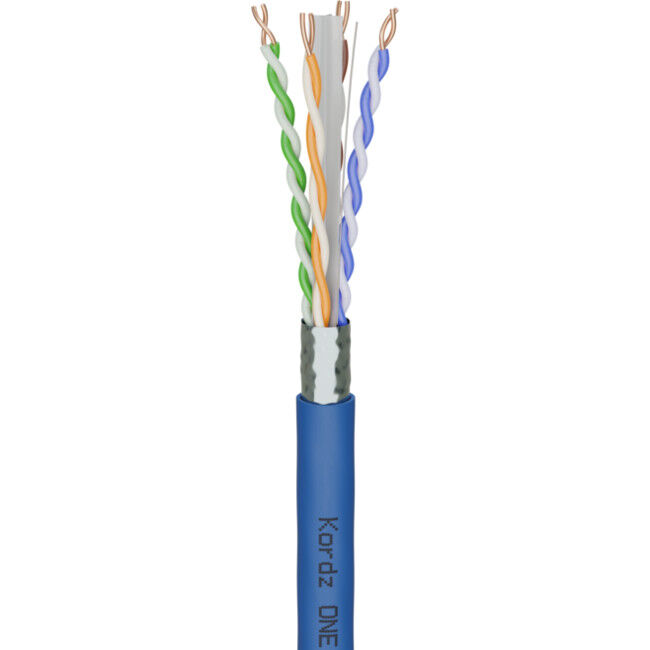

Kordz K13602-Blue 305M spool - ONE Series CAT6A F/UTP Network Cable

Kordz ONE Series CAT 6A F/UTP premium cable is engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT 6A F/UTP cable is tested and approved to exceed 550Mhz, ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards.

Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE, PoE+ & PoE++
F/UTP Ethernet CAT6a
Four Twisted Pairs 23 AWG Solid Copper Conductors
Separator Reduces Crosstalk Between Pairs
Mylar laminated aluminium tape shielding with a 26AWG drain wire
Suitable for IDC Terminations
Metre Marked
6 colours available: Black, Blue, Green, Purple, White & Yellow
Exceeds ANSI/TIA-568.2-D and ISO/IEC 61156-5 standards
Available in LSZH fire rated version
CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014+A1:2016)

Technical Info

Construction

Conductor:Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]
Insulation:Orange & Brown Pairs– Polyethylene (PE), 1.12+/-0.05 mmBlue & Green Pairs– Foam PE, 0.97 +/-0.05 mm
Twisting:4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
Cable Lay-Up:4 pairs with different pitches, non-metallic cross separator (spine)
Shielding:Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
Outer Diameter:7.4 +/-0.3 mm

Mechanical

Bend Radius:without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
Temperature Range:During Operation:-20°C to 60ºCDuring Installation:0°C to 50ºC

Electrical

DC Resistance:≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance:≤ 2% at 20ºC
Insulation Resistance (500V):≥ 5000MΩ / km at 20ºC
Mutual Capacitance:≤ 5.1 nf / 100m at 1khz
Capacitance Unbalance (pair to ground):≤ 160 pf / 100m at 1khz
Nominal Velocity of Propagation:nom. 67% c
Test Voltage:1kV DC / 1 min
