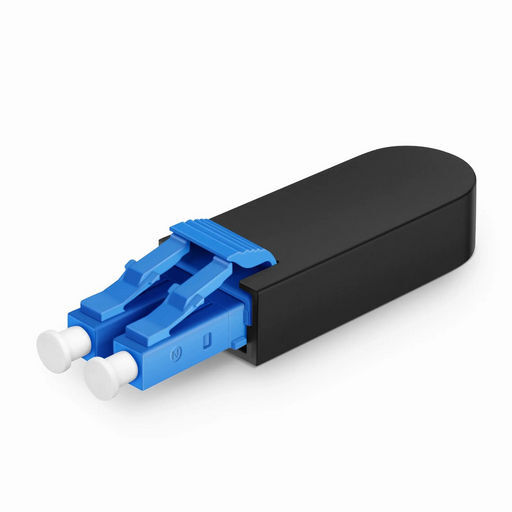

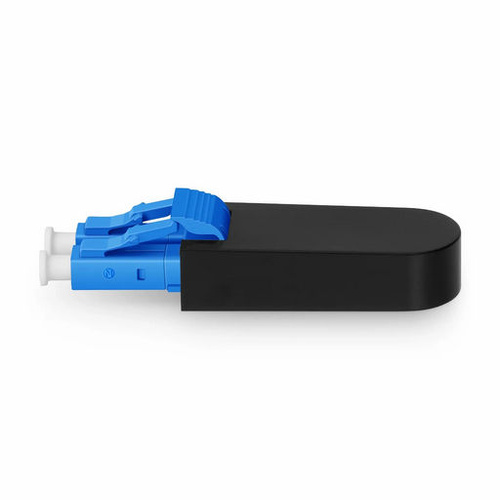

LC/UPC DUPLEX 9/125 SINGLE MODE FIBRE LOOPBACK MODULE

The fibre loopback module is designed to provide a media of return patch for a fibre optic signal. Typically it is used for fibre optic testing applications or network restorations. For the testing applications, the loopback signal is used to diagnose a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fiber loopback modules can provide an economical solution for many fibre optic test applications.

Features

  • LC /UPC connector.
  • 9/125 Single mode OS2 fibre type.
  • Low Insertion Loss ? 0.3dB, High Return Loss ? 50dB.
  • Easy insertion and extraction with push-pull design.
  • Used in Testing 10G or 40G or 100G LC/UPC Interface Transceivers.
  • Designed for Troubleshooting Network Failure Nodes.

Specifications

  • Connector LC/UPC
    Dimensions 15x8x49mm
    Fibre Single-mode 9/125
    Insertion Loss SM?0.3dB
    Jacket PC
    Operating Temperature -40 to 75°C
    Return Loss SM?50dB

(OPTO5011)

SKU OPTO5011
Model # OPTO5011
