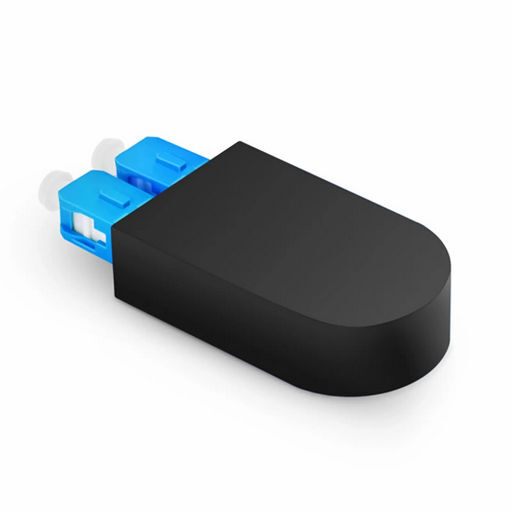

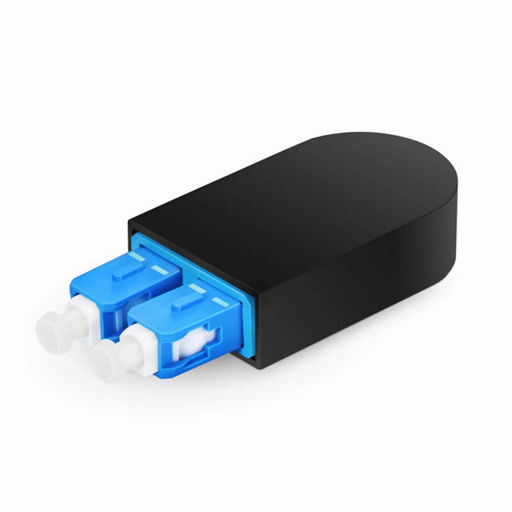

SC/UPC DUPLEX 9/125 SINGLE-MODE FIBRE LOOPBACK MODULE

Fibre Loopback Module is designed to provide a media of return patch for a fibre optic signal. Typically it is used for fibre optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fibre Loopback Module can provide an economical solution for many fibre optic test applications.

Features

  • SC /UPC connector.
  • 9/125 Single mode OS2 fibre type.
  • Low Insertion Loss ? 0.3dB, High Return Loss ? 50dB.
  • Easy insertion and extraction with push-pull design.
  • Used in testing SC/UPC interface Products.
  • Designed for Troubleshooting Network Failure Nodes.

Specifications

  • Connector: SC/UPC
  • Dimensions: 46x28x12mm
  • Fibre: Single-mode 9/125
  • Insertion Loss: SM?0.3dB
  • Jacket : PC
  • Operating Temperature: -40 to 75°C
  • Return Loss: SM?50dB

(OPTO5012)

SKU OPTO5012
Model # OPTO5012
