OUTDOOR PAN/TILT WIFI CAMERA

Overview

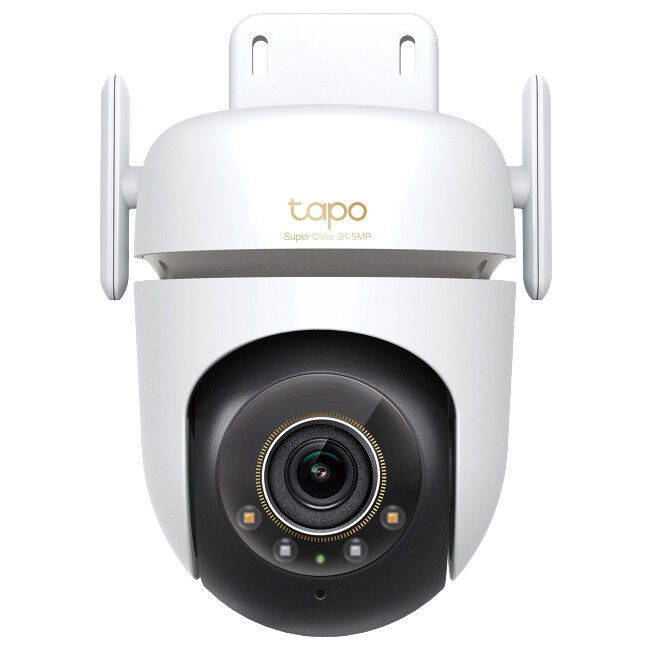

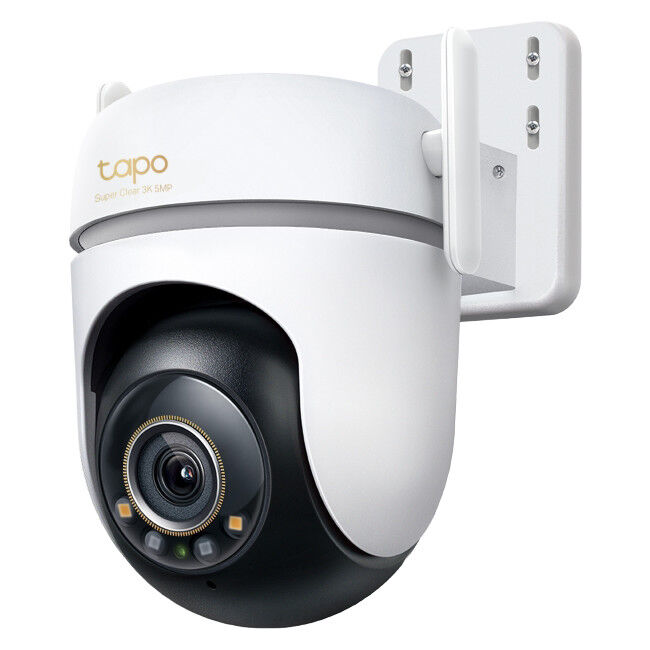

TC43 TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera

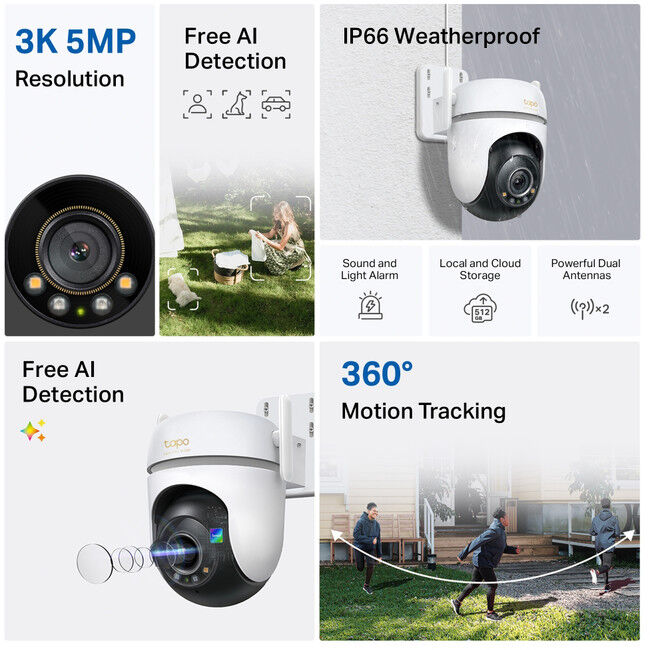

3K 5MP Live View, Starlight Colour Night Vision, 360° All-Round Protection

3K 5MP Live View: Adopting a 2880 × 1620 resolution, Tapo C530WS offers enhanced video quality to see more details.
Starlight Colour Night Vision: Enhances your security by revealing brighter, full-colour images and vivid details even in low-light conditions with built-in spotlights and the starlight sensor.
360° All-Round Protection: Enjoy 360° horizontal and 130° vertical views with motion tracking to eliminate blind spots. Activate patrol mode to cruise among multiple custom points.
Comprehensive AI Detection: Smart AI accurately identifies people, pets, and vehicles while featuring tamper and line-crossing detection, minimising false alerts and unnecessary notifications.
Flexible Connections & Reliable Networking: Connect your camera via Wi-Fi or Ethernet for flexible installation. Powerful dual antennas ensure connectivity up to 492ft in open areas*¹.
IP66 Weatherproofing: Offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat.
Customisable Sound and Light Alarm: The ultra-bright adjustable light deters unwanted visitors, while custom audio alarms offer further use.
Secure Local & Cloud Storage: Save crucial moments to a microSD card*² (up to 512 GB) or subscribe to Tapo Care for cloud storage*³ after a 30-day free trial, ensuring you never lose important footage.
Two-Way Audio:Enables communication through a built-in microphone and speaker.

1: The 492 ft wireless coverage is based on TP-Link tests in open areas. Actual experience may vary due to environment, router specifications, and other factors.

2: microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used. Actual storage time also may vary with use.

3: Subscribe for cloud storage at http://www.tapo.com/tapocare/

Specifications

CAMERA & LENS	Image Sensor	1/3″ Progressive Scan CMOS Starlight Sensor
	Focal Length	3.2mm
	Aperture	F1.6
	Field of View	Diagonal: 112° Horizontal: 95° Vertical: 53°
	Motion Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 60° (130° Tilt Coverage)
	Night Vision	850 nm IR LED (98ft / 29.9m) Starlight Color Night Vision
	Lighting	2 × Built-in Spotlights
	Interface & Button	1 × Ethernet Port 1 × RESET Button 1 × MicroSD Card Slot (Up to 512GB)
VIDEO & AUDIO	Maximum Resolution	3K 5MP (2880px × 1620px)
	Frame Rate	15/20/25/30 fps (Default 15 fps)
	Digital Zoom	12×
	Video Compression	H.264
	Live View	Yes
	Image Enhancement	3DNR WDR
	Audio Input & Output	Built-in Microphone and Speaker
	Audio Communication	Two-Way Audio with Noise Cancellation
	Siren Volume	93dB (Level measured at 4″/10cm distance)
STORAGE	Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards >
STORAGE	Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS	Detection	AI Detection Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Tamper Detection
	Activity Zones	Yes
	Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)
NETWORK & SECURITY	Network Connectivity	Connect via Wi-Fi or Ethernet
	Wireless Connectivity	IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi
	Ethernet Port	1 × 10/100 Mbps RJ45 Port on Camera
	RTSP	Yes
	ONVIF	Yes
	Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK
POWER	Power Source	9V DC Power Adapter
	Input Voltage	100-240V, 50/60Hz
	Output Voltage	9V, 0.85A (DC Power)
GENERAL	Smart Integration	Google Assistant, Amazon Alexa
	Weather Resistance	IP66
	System Requirements	Tapo App: iOS 12.0+ and Android 5.0+ operating systems
	Mounting Options	Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included)
ENVIRONMENT	Operating Temperature	−30°C~60°C
	Storage Temperature	−40°C~60°C
	Operating Humidity	10%~90% RH, Non-condensing
	Storage Humidity	0~90% RH, Non-condensing
GENERAL	Dimensions (W×D×H)	123.8mm × 123mm × 90mm (4.9″ × 4.8″ × 3.5″)
	Package Content	TC43 Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide
	Certifications	CE, FCC, RoHS, RCM
