Overview

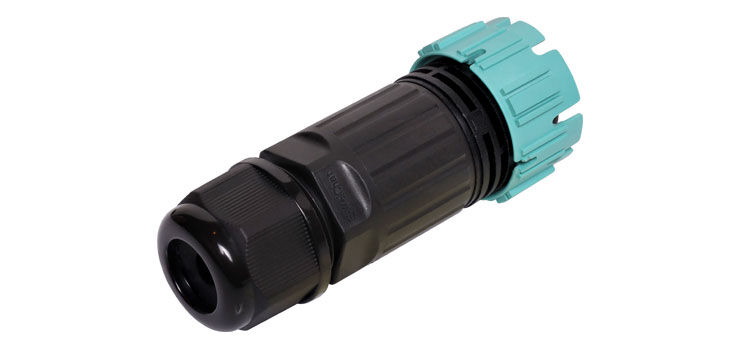

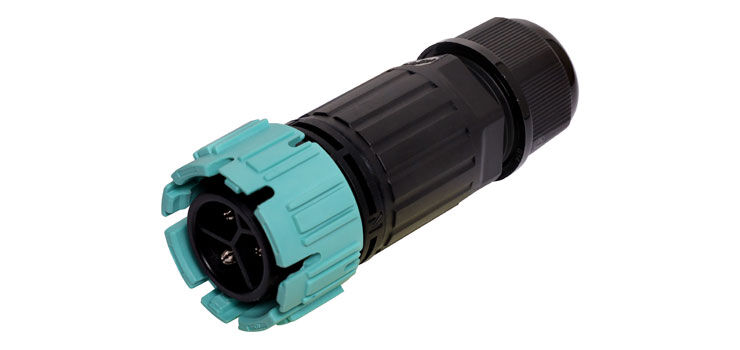

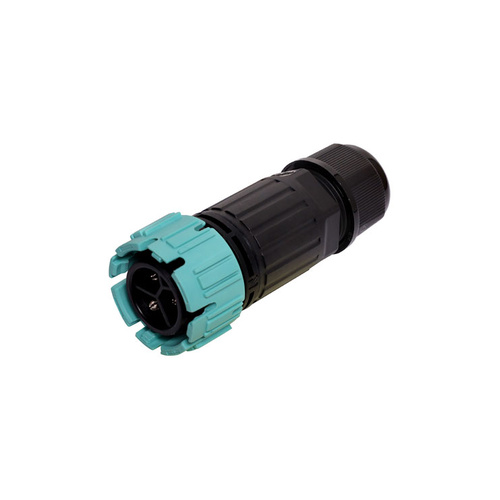

This waterproof IP68 3 pin connector features a screwless termination and locking connection to mating connectors (see P8651 for female line plug and P8652 for female chassis socket). This makes it an ideal joiner for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics.

Features

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8651 female line plug or P8652 female chassis socket.
  • Up to 16A at 450V rated.

 Specifications

  • Number of Poles : 2/3Pin
  • Rated Voltage : 450V
  • Rated Current : 16A
  • Wire Section : 0.5-2.5mm2
  • Outer Cable Diameter : 5-9mm, 9-12mm
  • Temperature Range : -40?-+105?
  • IP Code : IP68
  • Housing Material : PA66
  • Contact/Terminal Materials : Copper Alloy

    *Specifications are subject to change without notice.

(P8650)

SKU P8650
Model # P8650
Barcode # 9321758259450
