Overview

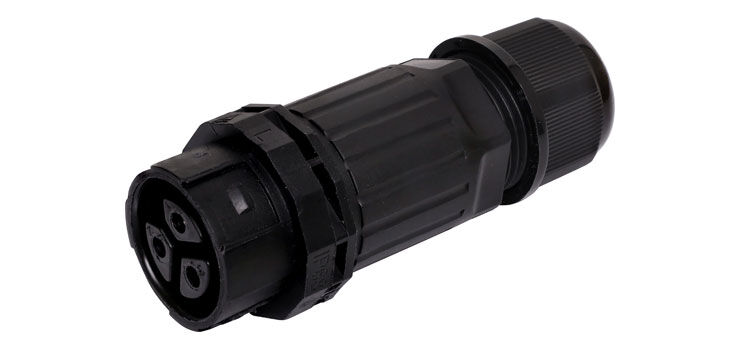

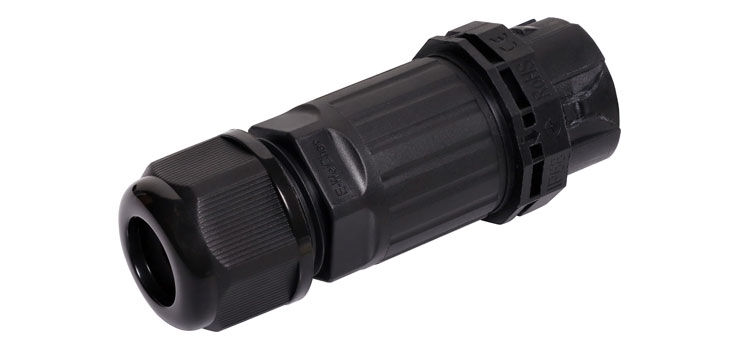

This waterproof IP68 3 pin connector features a screwless termination and locking connection to mating connectors (see P8650 for male line plug). This makes it a ideal for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics.

Features

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8650 male line plug.
  • Up to 16A at 450V rated.

Specifications

  • Number of Poles : 2/3Pin
  • Rated Voltage : 450V
  • Rated Current : 16A
  • Wire Section : 0.5-2.5mm2
  • Outer Cable Diameter : 5-9mm, 9-12mm
  • Temperature Range : -40?-+105?
  • IP Code : IP68
  • Housing Material : PA66
  • Contact/Terminal Materials : Copper Alloy

    *Specifications are subject to change without notice.

(P8651)

SKU P8651
Model # P8651
Barcode # 9321758259467
