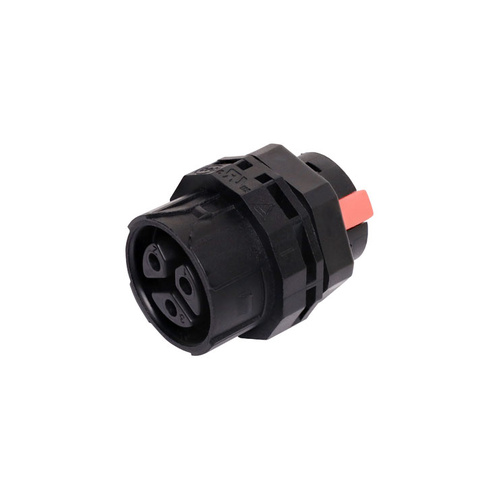

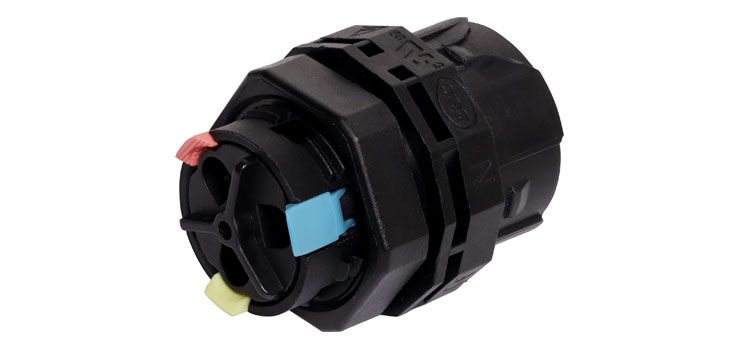

Overview

This waterproof IP68 3 pin connector features a screwless termination and locking connection to mating connectors (see P8650 for male line versions). This makes it ideal for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics.  19mm mounting hole.

Features

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8650 male line plug.
  • Up to 16A at 450V rated.

Specifications

  • Number of Poles : 2/3Pin
  • Rated Voltage : 450V
  • Rated Current : 16A
  • Wire Section : 0.5-2.5mm2
  • Outer Cable Diameter : 5-9mm, 9-12mm
  • Mounting Hole Size: 19mm
  • Temperature Range : -40?-+105?
  • IP Code : IP68
  • Housing Material : PA66
  • Contact/Terminal Materials : Copper Alloy

    *Specifications are subject to change without notice.

(P8652)

SKU P8652
Model # P8652
Barcode # 9321758259474
