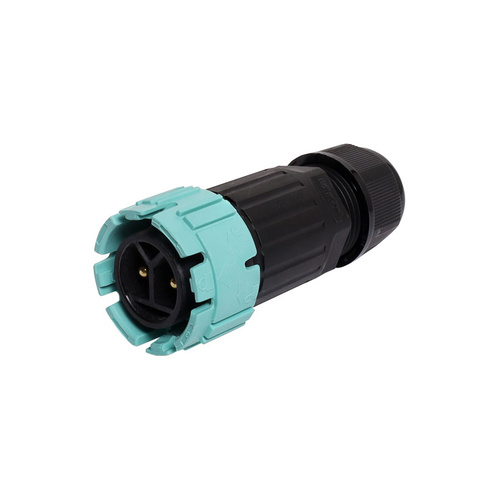

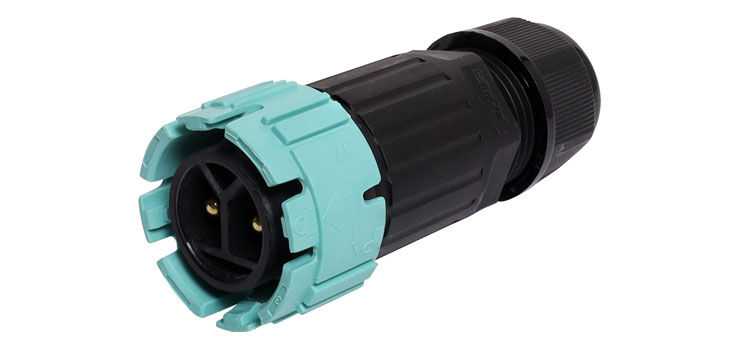

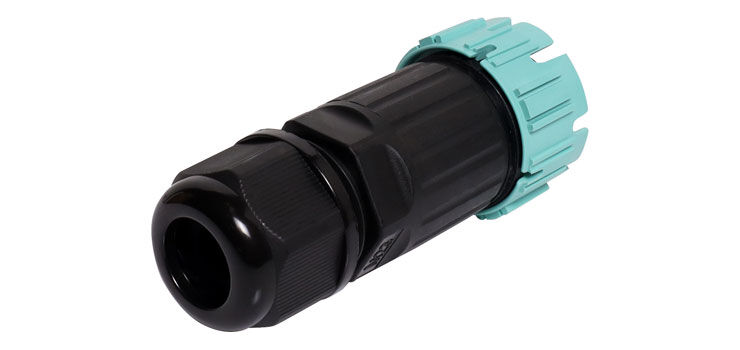

This waterproof IP68 2 pin connector features a screwless termination and locking connection to mating connectors (see P8661 for female line plug and P8662 for female chassis socket). This makes it an ideal joiner for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics.  With a current rating up to 30A it is ideal for DC wiring in vehicle, caravan and 4WD power systems.

Features

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8661 female line plug or P8662 female chassis socket.
  • Up to 30A at 450V rated.

 Specifications

  • Number of Poles : 2 Pin
  • Rated Voltage : 450V
  • Rated Current : 30A
  • Wire Section : 0.5-4mm2
  • Outer Cable Diameter : 5-9mm, 9-12mm
  • Temperature Range : -40?-+105?
  • IP Code : IP68
  • Housing Material : PA66
  • Contact/Terminal Materials : Copper Alloy

    *Specifications are subject to change without notice.

(P8660)

SKU P8660
Model # P8660
Barcode # 9321758260340
