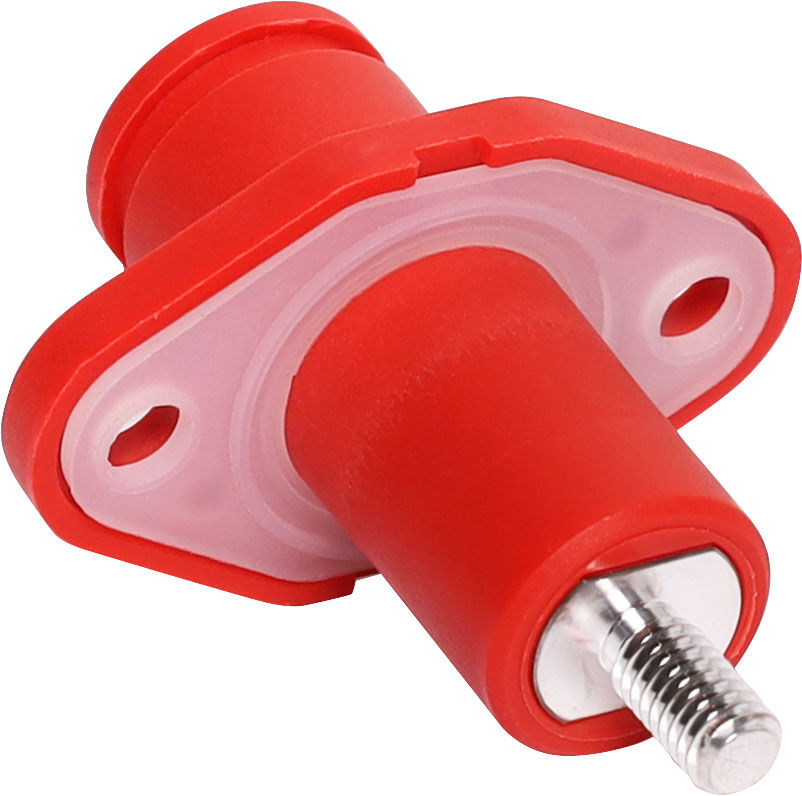

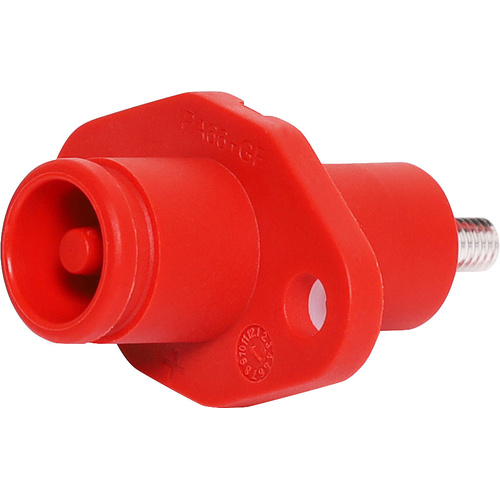

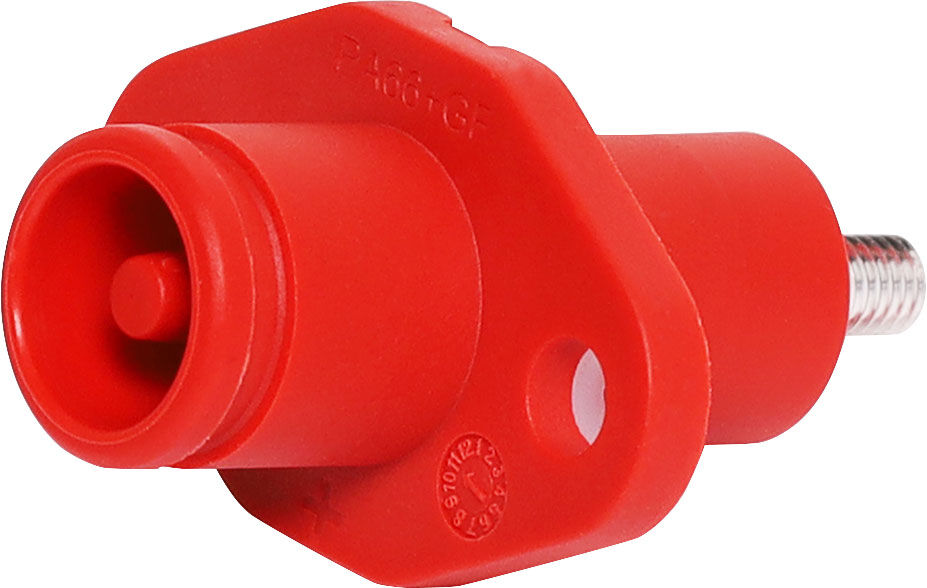

These panel mount battery storage connectors are a robust and reliable connector designed for high-current energy storage systems, including electric vehicles (EVs), battery storage and remote power applications.Engineered for single-core power transmission,it supports high voltage and current loads with minimal resistance.The IP67-rated housing ensures superior protection against dust, water, and harsh environmental conditions, making it ideal for outdoor and mobile use. With secure locking mechanisms and easy installation, this connector is suited for demanding power applications that require safety and durability.

  • Surface mountable high current connection point.
  • M4 threaded base for direct battery connection or connection to ring terminals.
  • IP67 rated sealing for use in the most demanding of environments.
  • Low resistance design with recessed contact points.
  • UL/TUV certified.
  • Wide operating temperature -40°C to 125°C.

Specifications

  • Colour: Red
  • Terminal: M4
  • Rated voltage: 1500V DC
  • Rated current: 50A
  • Insulation resistance: 500V DC / 500M?
  • Hipot test voltage: 7000V DC
  • Contact resistance: <1m?
  • Operating temperature: -40°C to 125°C
  • Protection rating: IP67
  • Salt spray requirement: 72 hours
  • Certificates:UL/TUV

(P8681)

SKU P8681
Model # P8681
Barcode # 9321758262702
