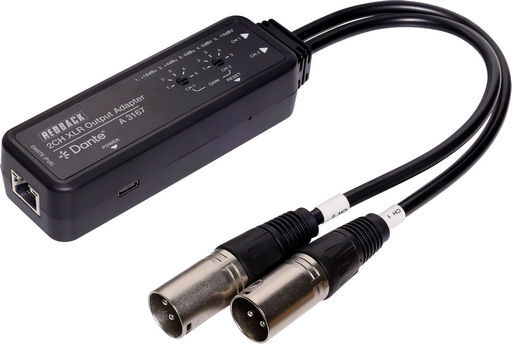

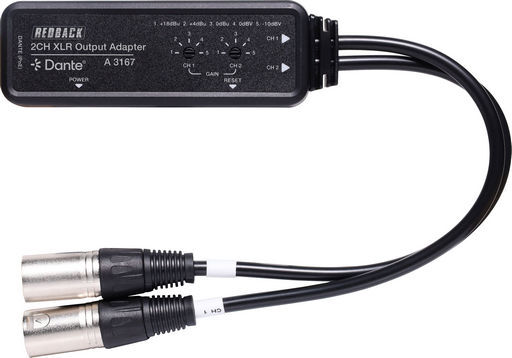

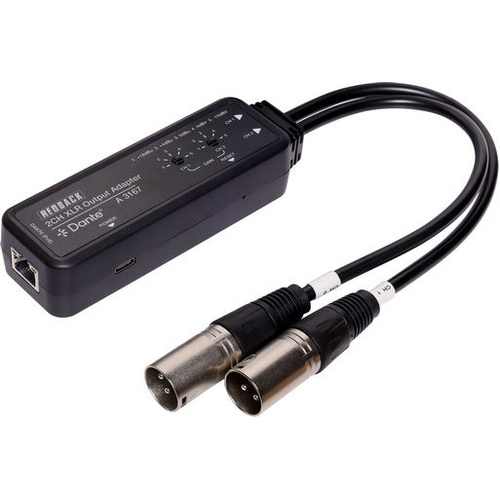

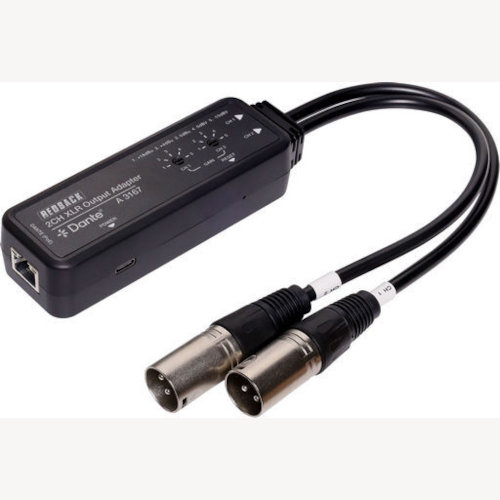

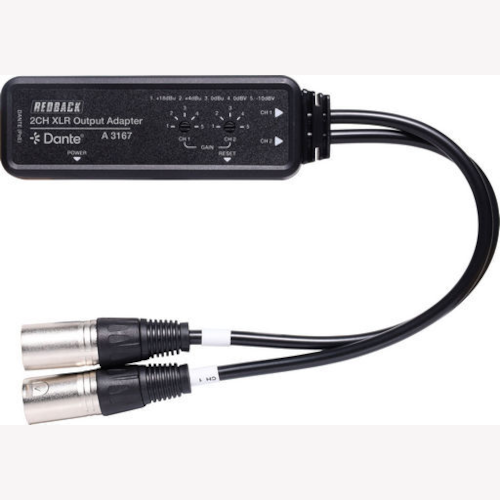

2CH XLR OUTPUT TO DANTE INPUT ADAPTOR

This Dante 2CH XLR output adaptor is an audio converter based on the Dante Ultimo 2x2 solution. It converts Dante 2CH digital audio into two channel balanced/unbalanced XLR analogue audio. Analogue audio output supports 5-level gain adjustment. The adaptor is powered by optional USB-C power supply or PoE.

Features

• Dante 2CH digital audio to two-channel XLR analogue audio.
• Balanced/unbalanced XLR analog audio output.
• Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit.
• Dante audio delay supports 1/2/5ms (configurable).
• Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv).
• Compatible with AES67 input and output.
• Power by USB-C or PoE (802.3af).
• Compact design for easy and flexible installation.

Technical Specifications

• Input: Dante 2CH digital audio
• Output: Two-channel balanced/unbalanced XLR analog audio
• Control Method: Dante Controller
• Video Network Bandwidth: 100M
• Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
• Audio Formats: DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]
• Transmission Distance: 100m (CAT6/6A/7)
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Audio Parameters

• XLR Analog Audio Out
• Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced
• Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Dynamic Range: >100dB@0dBu, 1kHzA-weighted
• Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
• Audio THD+N: < 0.01% at +4dBu, 1KHz
• Audio Output Sync Delay: <10ms

Connection

• Input port: 1x DANTE [RJ45 connector, PoE], 1x POWER [USB-C with USB power only, 12-pin female
• Output port: 2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable
• Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]

Mechanical

• Housing: Plastic Enclosure
• Colour: Black
• Dimensions: 115mm [W] x 40mm [D] x 28 mm [H]
• Weight: 173g
• Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
• Power Consumption: 1.25W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
