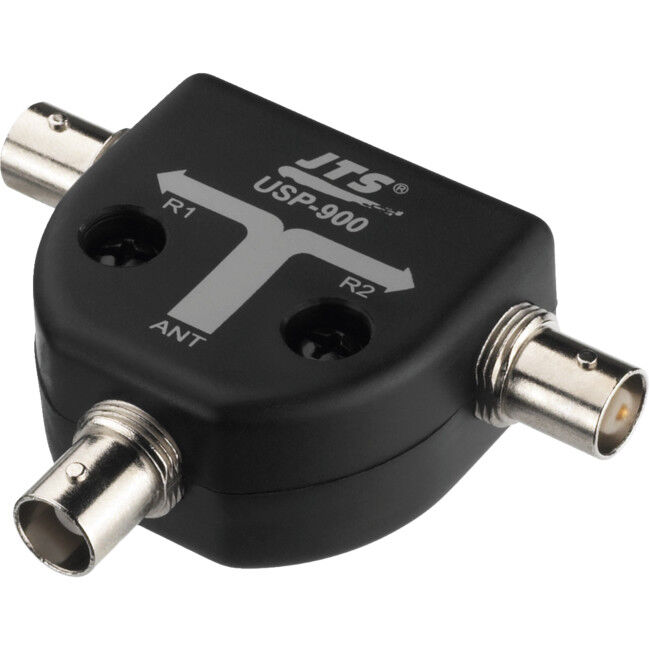

JTS USP900 Passive 2-way antenna splitter wideband

  • Full frequency band: 470~870 MHz.
  • One BNC antenna in and two BNC out.
  • RF Carrier Frequency Range: 10~1,000 MHz
  • VSWR(Voltage Wave Standing Ratio): 1.2
  • Impedance: 50Ω
  • Isolation: 20dB
  • Insertion Loss: 2dB
  • Dimension(mm): 72.2 (W)* 23.6(H)* 54.9 (D)
  • Weight: 62.6 grams



Technical specifications UDA-49AP

Full Frequency Band: 470~960 MHz
RF carrier frequency range: 10~1,000 MHz
VSWR(Voltage Wave Standing Ratio) 12
Impedance: 50Ω
Isolation 20dB
Insertion loss: 2dB
Dimension(mm) / Weight 72.2 (W)* 23.6(H)* 54.9 (D) / 62.6 grams



(USP900)

SKU USP900
Model # USP900
Brand JTS
