Passive Single POE Splitter Data And Power Dc12V 1.25A Max

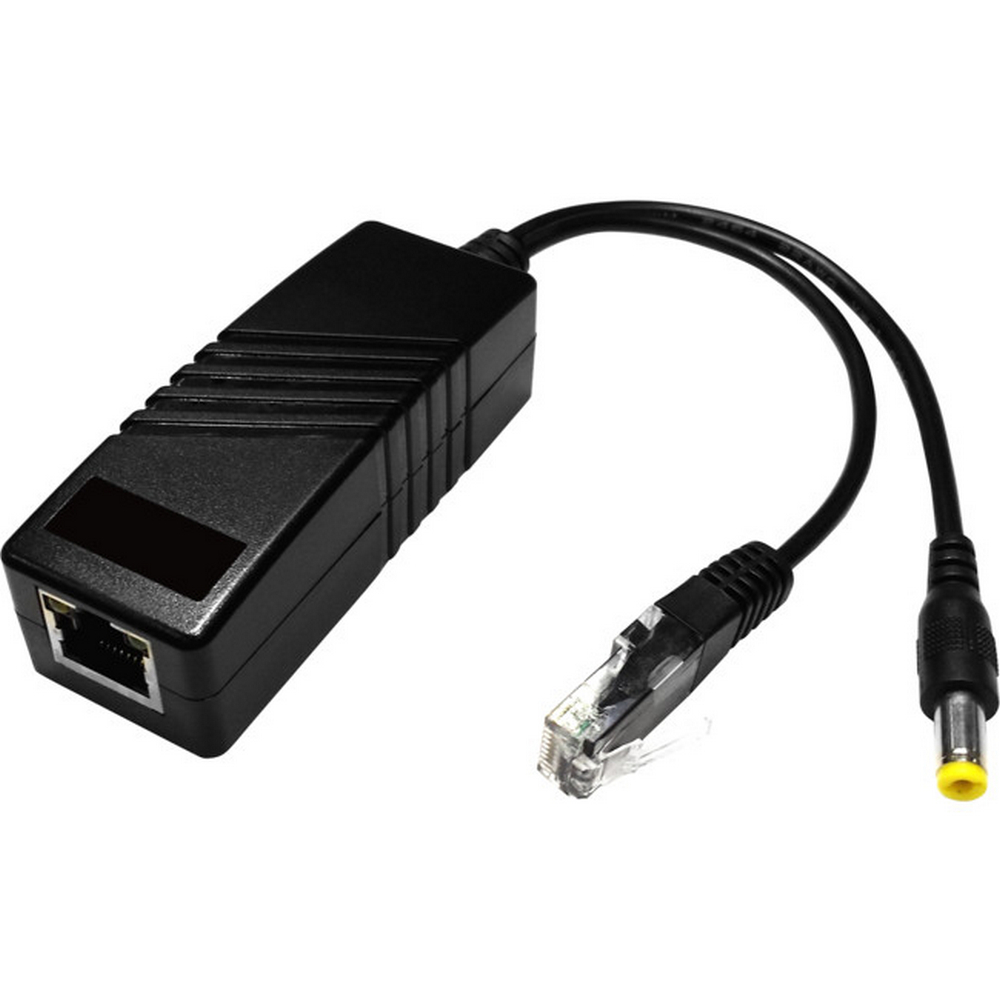

The Doss POE1SP is a POE Splitter which splits 37-57V input from PoE switch into DC 12V and RJ45 data connector. It supplies power and transmits data to devices which do notsupport PoE power supply (such as IP camera). The product supports IEEE802.3af standard abd uses the transformer for isolation design, which gives you more stable and secure solution for your system.

Features

Bandwidth: 10/100Mbps
Input Voltage: 37-57V
Input port: Supports Mid-Span (No. 4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
Output Voltage: 12V
Output current: 1.08A (Max)
Standard: Supports IEEE802.3af
Isolation protection: Using the transformer for isolation design, more stable, more secure
Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection

Specifications

Standard	IEEE802.3af standard
Power supply mode	Support Mid-span and End-span
PoE Input Voltage	37-57V
DC Voltage Output	12V
DC Current Output	1.08A (max)
Electrical interface parameters	One input RJ45 port One Output RJ45 plug One Power supply output DC plug
Cable Type	Cat5 UTP and above
Protocol Standards	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3af Power Over Ethernet
Bandwidth	10/ 100M
LED indicator lights	PoE input power supply indicator light DC output power supply indicator light
Dimension	803024.55mm
Weight	0.05kg
Environment temperature	Work temperature: −5~45°C Humidity: 90% Storage temerature: −20~70°C Humidity: 95%
