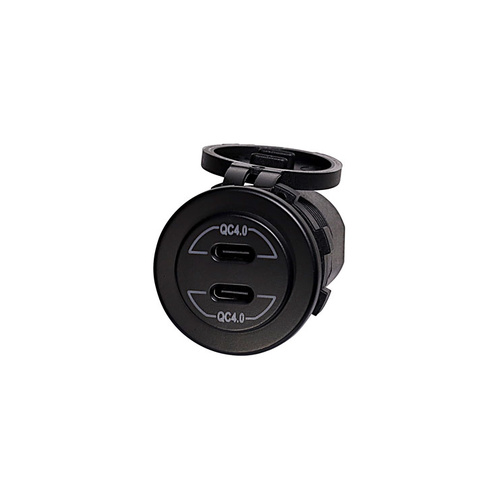

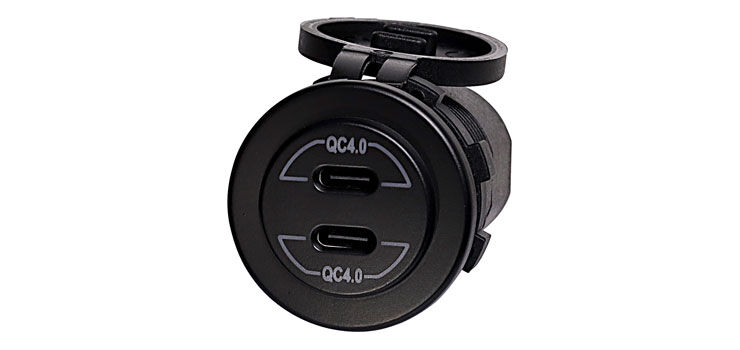

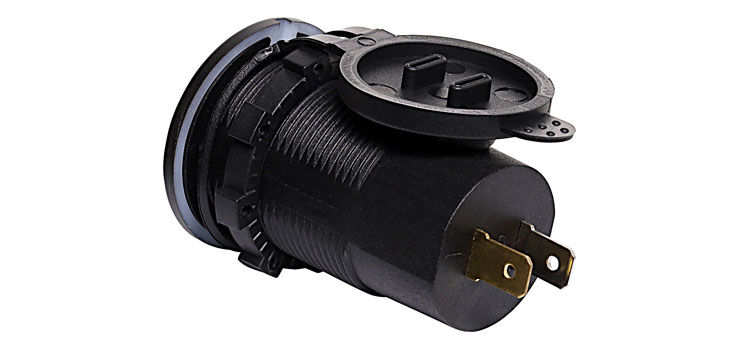

Upgrade your charging setup with the 4.0A Dual USB Type-C Charging Panel Mount Socket, designed for fast, efficient power delivery in a sleek and durable form. Whether for cars, vehicles, RVs, or custom projects, this socket provides reliable charging for all your USB-C devices.

 Specifications

  • USB type: Type C X 1, Type C X1
  • The number of USB Ports: 2
  • Normal voltage: 24VDC
  • Operating Voltage: 9V-30V DC
  • Peak Voltage: 34V DC(max)(3-4seconds)
  • USB TypeC -1 output:
  • QC4.0 (5V/3A/15W, 9V/3A/27W, 15V/3A/45W, 20V/3A/60W)
  • USB TypeC -1 output:
  • QC4.0 (5V/3A/15W, 9V/3A/27W, 15V/3A/45W, 20V/3A/60W)
  • Current Draw Quiescent current: 5MA
  • Life: 5000 operating cycles
  • Sealing:IP65
  • Terminals: Copper/nickel plating 1/4"(6.3mm)
  • Operating Temperature: -20 - +80°C
  • Panel Opening: 29.2 x26. 2 mm
  • Low-voltage protection: YES (Lower than 40V)
  • Over current protection: Yes
  • Over temperature protection: Yes
  • Short circuit protection: Yes
  • Reverse polarity protection: Yes

    *Specifications are subject to change without notice.

(PC0667)

SKU PC0667
Model # PC0667
Barcode # 9321758258088
