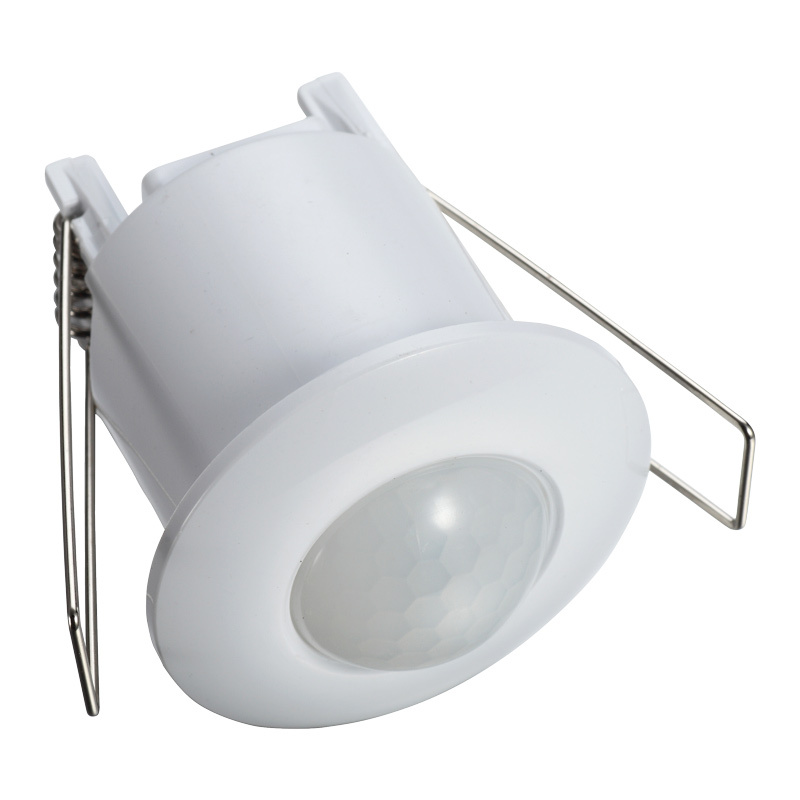

The ENSA-PS3 is an intelligent sensor switch, designed for recessed mounting in ceilings. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:

• Automatically activate and deactivate lighting for energy efficiency
• Adjustable sensors: Daylight (3~2000lx) / Motion (6m) / On-timer (10s~15min)
• 360° circle / Ø6m passive infrared detection
• Recessed ceiling mount, for indoor use only
• 3 year warranty

Specifications

Features

• Daylight Sensor - Yes
• Motion Sensor Type - Passive Infrared

Electrical

• Input Voltage - 220 ~ 240VAC 50Hz
• Power Consumption (Sensing Mode) - 0.5W
• Max. Rated Load (Resistive/Inductive) - 800W / 400W

Detection

• Daylight Sensing - 3 ~ 2000 Lux
• Motion Detection Area - 360° circle (Ø6m)
• Motion Detection Adjustment - N/A
• Recommended Installation Height - 2.2 ~ 4m
• Motion Detection Speed - 0.6 ~ 1.5m/s
• On-timer Delay - 10s / 30s / 90s / 3min / 7min / 15min
• Stand-by Period - N/A
• Stand-by Dimming - N/A

General

• Ingress Protection - IP20
• Operating Environment - -20 ~ 40°C / <93% Relative humidity
• Mounting Type - Recessed ceiling
• Dimensions - Ø50 x 65mm
