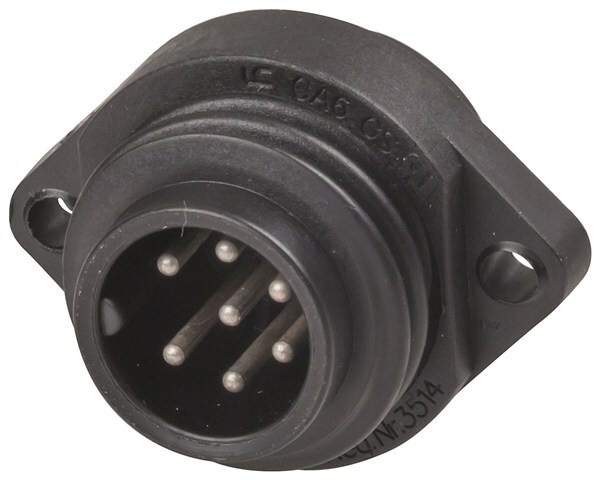

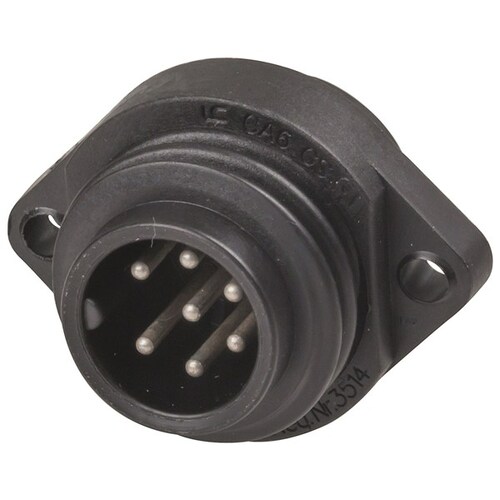

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact).. For further technical information see specifications. A quality industry-standard connector.


Features
- Electrical: 6 Pole + PE

- Contact Resistance: <5mohm

- Suitable for panel mounting.

Environmental:

- Temperature range: -40°C to + 100°C

- Housing: Polyamide 6.6

- Strain Relief: Screw clamp/Ring and Gland Nut (9mm)

Specifications

AC Voltage rating : 380.00000000V
DC current rating : 10.00000000A
DC Voltage : 450.00000000V
IP Rating :
IP Rating certificate : true
Plug or Socket Type : C16-1 Series
Device : Plug
Attachment Method : Solder Tag
Pack Quantity : 1.00000000pc
Contacts / Pins : 6.00000000pc
Case Material : Plastic
Contact Material : Plated Metal
Insulation resistance : 10.00000000G?
Cable Entry Diameter : 0.50000000mm

(PP1002)

SKU PP1002
Model # PP1002
Brand BOURNE
