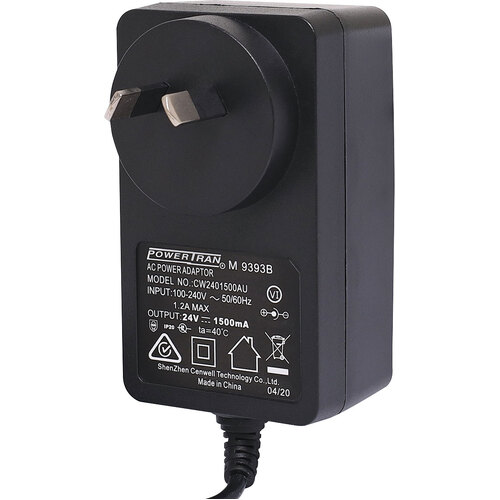

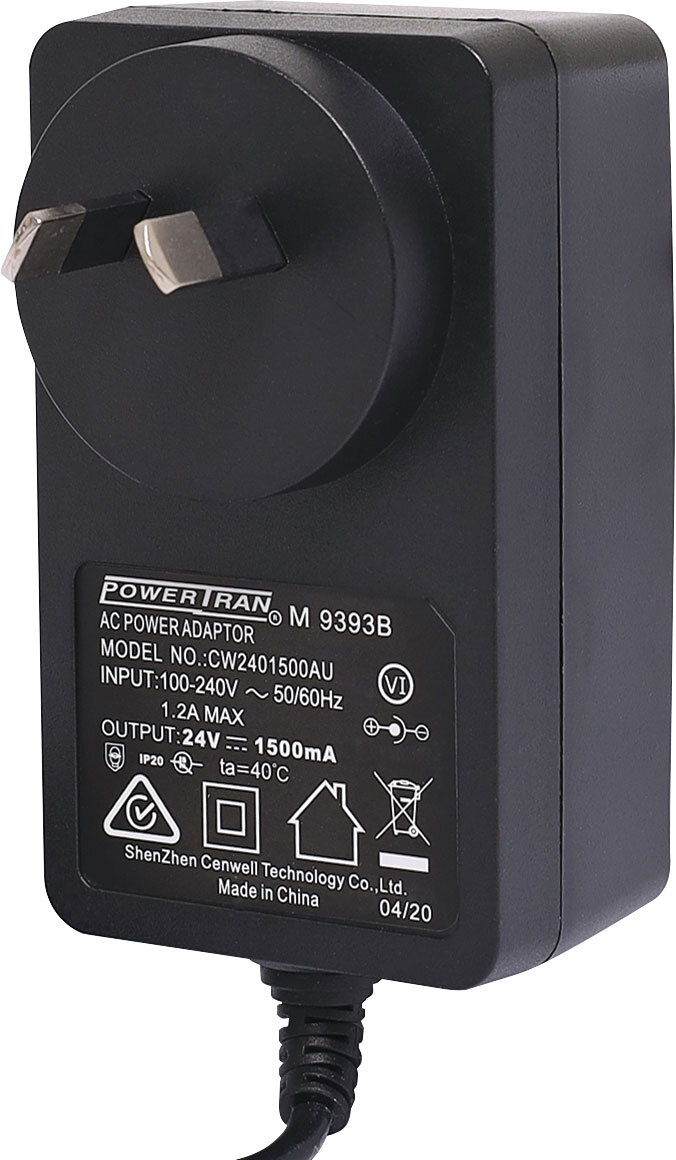

24V DC, 1.5 Amp switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved. Dimensions: 49W x 85H x 41D mm.

Features

• Australian standards compliant
• Suitable for a range of electronic devices
• Compatible with Australian mains power point
• Rated input voltage: 100-240Vac
• Operating range: 90-264Vac
• Rated input frequency: 50/60Hz
• Variation Frequency: 50/60Hz +/- 3Hz
• Rated input current: 0.8A Max.
• Primary current protection: An adequate internal fuse on the AC input line is provide
• Power consumption (no loading): 0.1W Max. (Input voltage 115V and 230V)
• Configuration: II Conductor
• AC Leakage Current: 0.25mA Max.At240Vac input
• DC output voltage: 24V
• Minimum load current: 0.01A
• Rating load current: 1.5A
• Rating output power: 36W
• Line regulation: The line regulation is less than ±5% while measuring at rated load and +/-10% of input voltage changing.
• Load regulation: The load regulation for +12V is less than ±5%, at measured output load from 0% to 100% rated load
• Temperature: Operating: 0°C +40°C, Non-Operating: -20°C +80°C
• Humidity: Operating: 10%~90% (Non Condensing), Non-Operating: 10%~90% (Non Condensing)
• Barrel length: 10mm

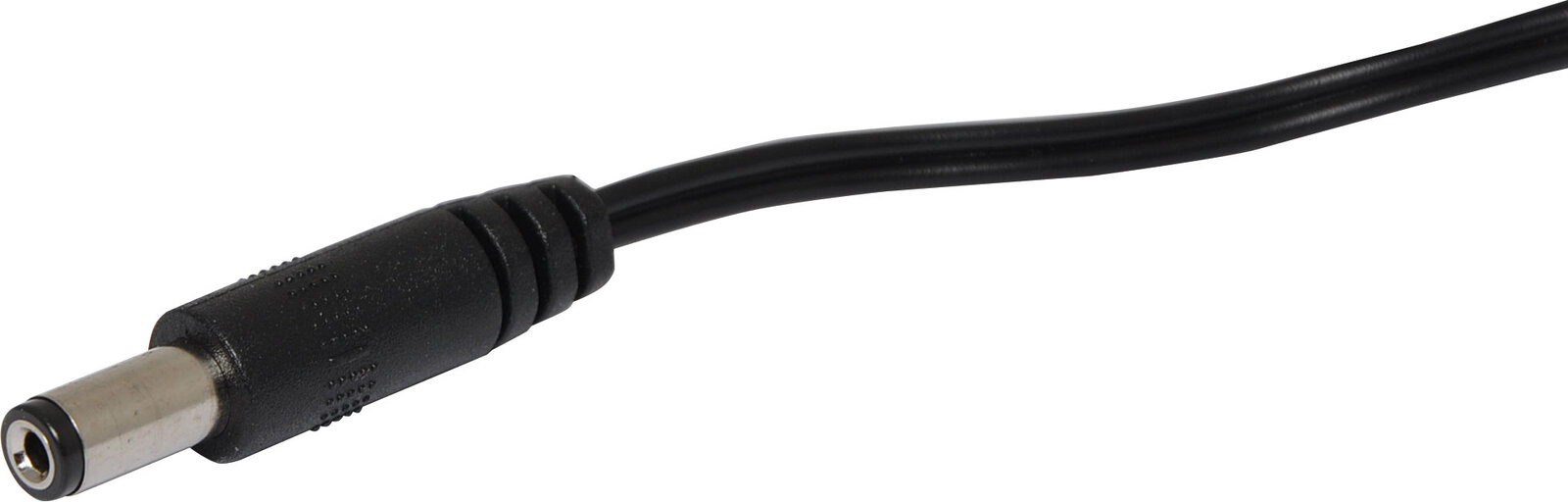

• Plug tip type: 5.5mm outer diameter and 2.1mm inside diameter
• Polarity: Positive centre
• Cable length: 1.8m
• MEPS efficiency level: VI
