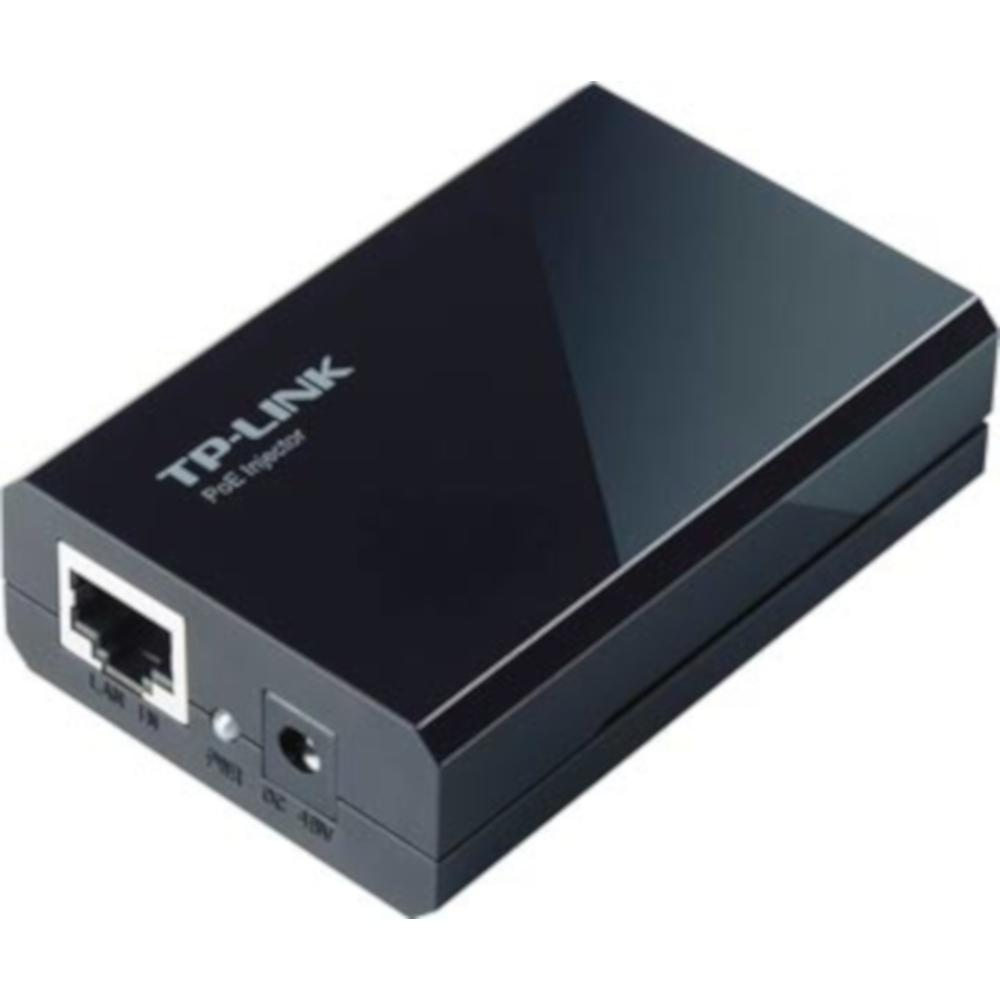

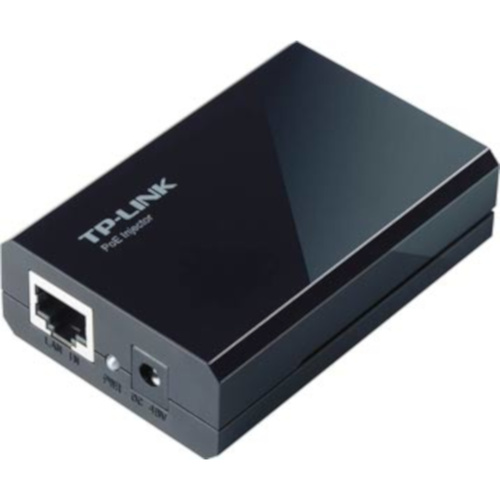

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters or other equivalent products, to extend your network to where there are no power line or outlets, where you wish to fix device such as AP, IP Camera or IP Phone, etc.


Features

• IEEE 802.3af compliant
• Delivers power up to 100 meters
• Auto-determine the necessary power requirements
• Gigabit speed support
• Plug-and-Play, requires no configuration
• External power adapter supply

*TP-LINKs TL-POE150S uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.                                                             Specifications

• Hardware Features
• Interface:
• - 2 10/100/1000Mbps RJ45 Port
• - AUTO Negotiation/AUTO MDI/MDIX
• - 1 48VDC POWER INPUT PORT
•
• Network Media:
• - 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• - EIA/TIA-568 100Ω STP (Max 100m)
• - 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• - EIA/TIA-568 100Ω STP (Max 100m)
• - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
•
• Dimensions (W X D X H): 3.2*2.1*0.9 in.(80.8*54*24 mm)
• LED Indicator: PWR
• Power Supply: 15.4W (Max. 48VDC)
•
• Software Features
• Basic Function:
• - Compatible With IEEE 802.3af Compliant PDs
• - Delivers Power Up To 100 Meters
• - Auto-Determine The Necessary Power Requirements
•
• Others
• Certification: FCC, CE, RoHS
• System Requirements:
• -Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• - Environment Operating Temperature: 0?~40? (32?~104?)
• - Storage Temperature: -40?~70? (-40?~158?)
• - Operating Humidity: 10%~90% non-condensing
• - Storage Humidity: 5%~90% non-condensing
