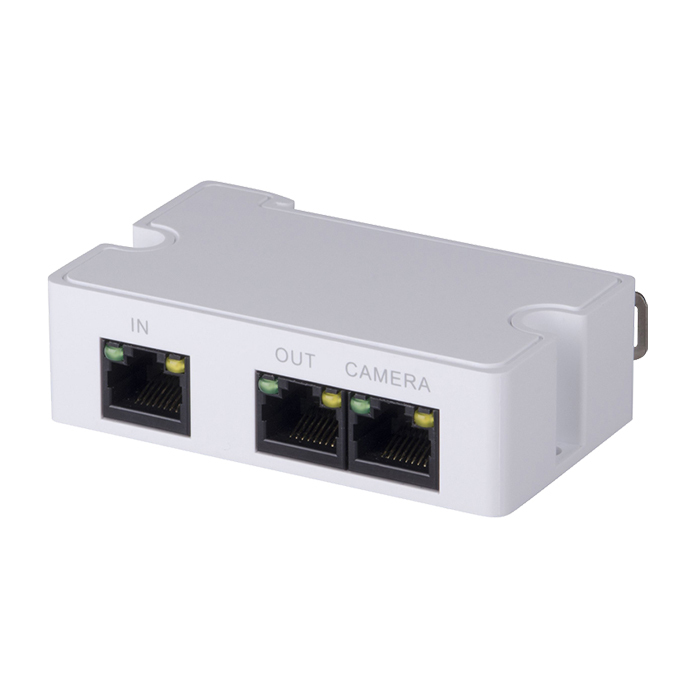

Power Over Ethernet Extender for Midspans VSPOE-EX

The VSPOE-EX is an extender for the VSPOE-MS 60W PoE Midspan. It enables the cascading of PoE to up to three IP cameras, up to a maximum distance of 300m from the network switch. Hi-PoE ports from capable PoE switches can be used in place of the VSPOE-MS midspan.

• 1 x 10/100 Base-T PoE receiver port
•  1 x 10/100 Base-T PoE supply port for following VSPOE-EX extender
• 1 x 10/100 Base-T PoE supply for IP camera / device
• Active extender provides PoE to up to 3 IP surveillance cameras*
• IEEE 802.3af/at standard for IP camera PoE power supply
• Supports Ethernet data exchange
• Junction box or DIN rail mounting
• *Device power consumption must be ≤8W

Specifications

• Ethernet Ethernet Ports : 3 x 10/100 Base-T (receiver port / extender port / device port)

• PoE Protocol : PoE (IEEE802.3af) / PoE+ (IEEE802.3at)

• PoE Power Supply : Cascades from midspan

Indicators

• Power indicator / PoE status indicator
• Exchange Mode : N/A

Environmental

• Lightning Protection : N/A
• Operating Environment : -30° ~ 65°C / 10 ~ 90% RH (max.)
• Mounting Options : Desktop / DIN Rail
• Dimensions : 79 x 52 x 23mm
