Overview

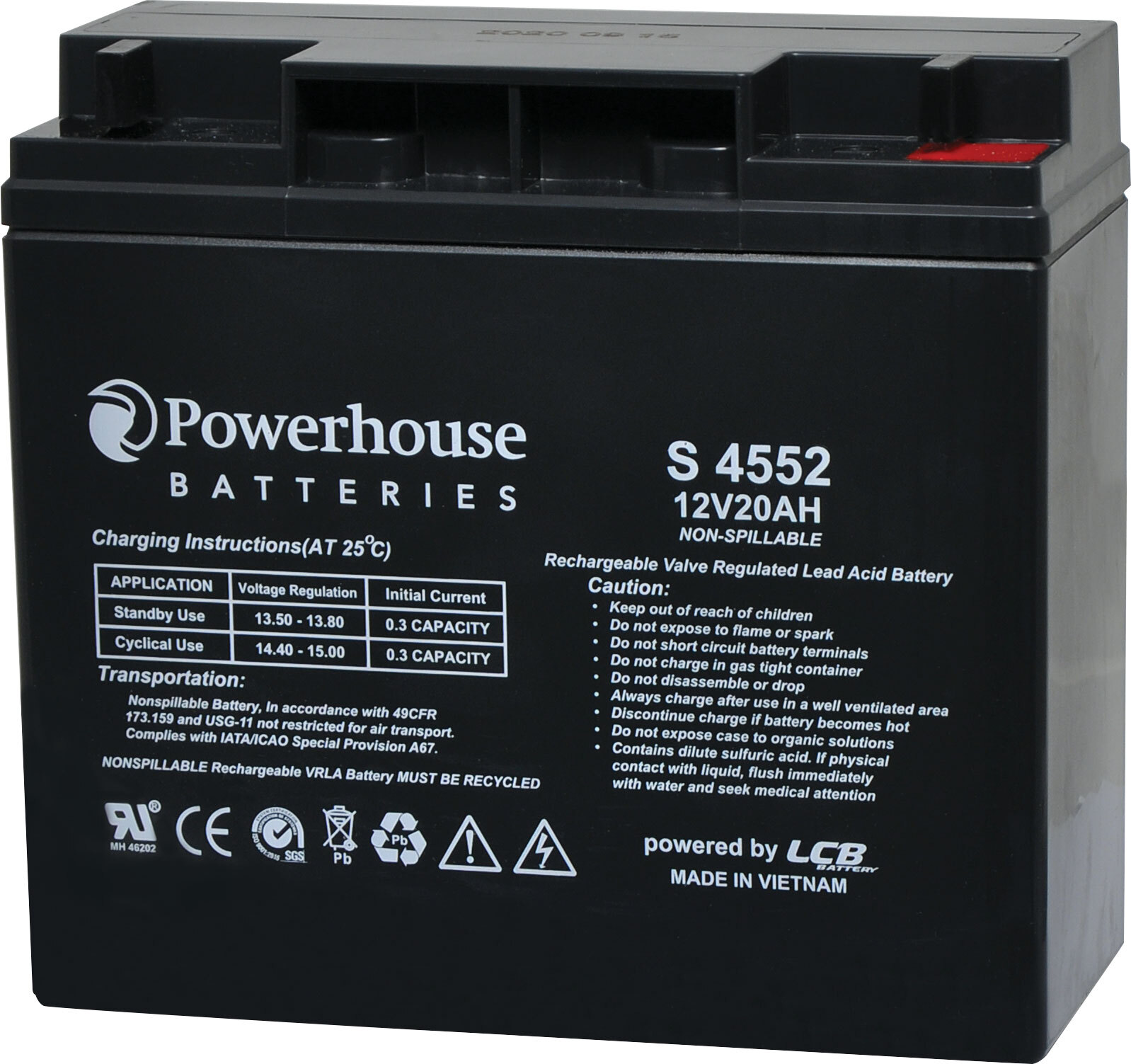

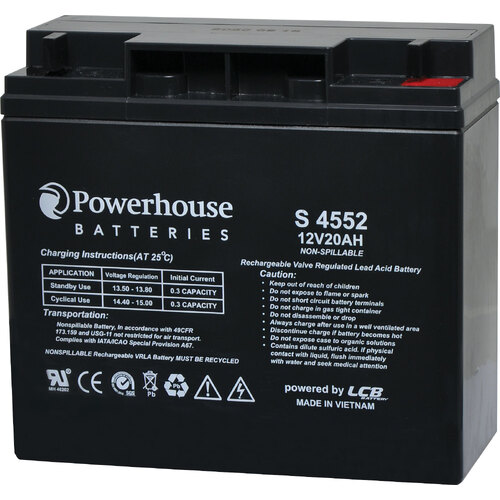

This 12V 20Ah sealed lead acid (SLA) battery is a compact battery for powering 12V equipment. It is commonly used in battery back up systems, alarm and communications systems and UPS units. Fitted with M5 bolt and nut terminals, these batteries are easily user replaced in most equipment they are used in. Cells are fully sealed to prevent any leakage of electrolyte. UN Number: UN 2800 Non-Spillable - Hazard Class 8.

ActivFire Listed (afp3824). Conforms to IEC 60896-21:2004 and IEC 60896-22:2004.

Our range of Powerhouse SLA batteries are from a quality supplier and are graded for use in UPS systems. We have found the quality of SLA batteries varies considerably between suppliers and often cheaper units have a shorter life span.

PLEASE NOTE: Excessive temperatures over 65ºC can effect the ABS housing. Need to be well ventilated in warm conditions. Not for use in engine bays.

Specifications

General

• Dimensions: 181L x 77W x 167H mm (including tabs)
• Weight: 5.9kg

Capacity

• 20 Hour Rate (10.5V): 20Ah
• 10 Hour Rate (10.5V): 18.7Ah
• 1 Hour Rate (9.6V): 13Ah

Capacity Affected by Temperature

• 40°C: 102%
• 25°C: 100%
• 0°C: 85%

Charging

• Internal Resistance: Approximately 14MΩ
• Float Charging Voltage: 13.6 - 13.8V @ 25°C (temperature compensation: -18mV/°C)
• Cyclic Charging Voltage: 14.50 - 15V @ 25°C (temperature compensation: -30mV/°C)
• Maximum Charging Current: 6A
• Maximum Discharging Current: 300A (5 sec.)
• Designed Floating Life: 5 years.
