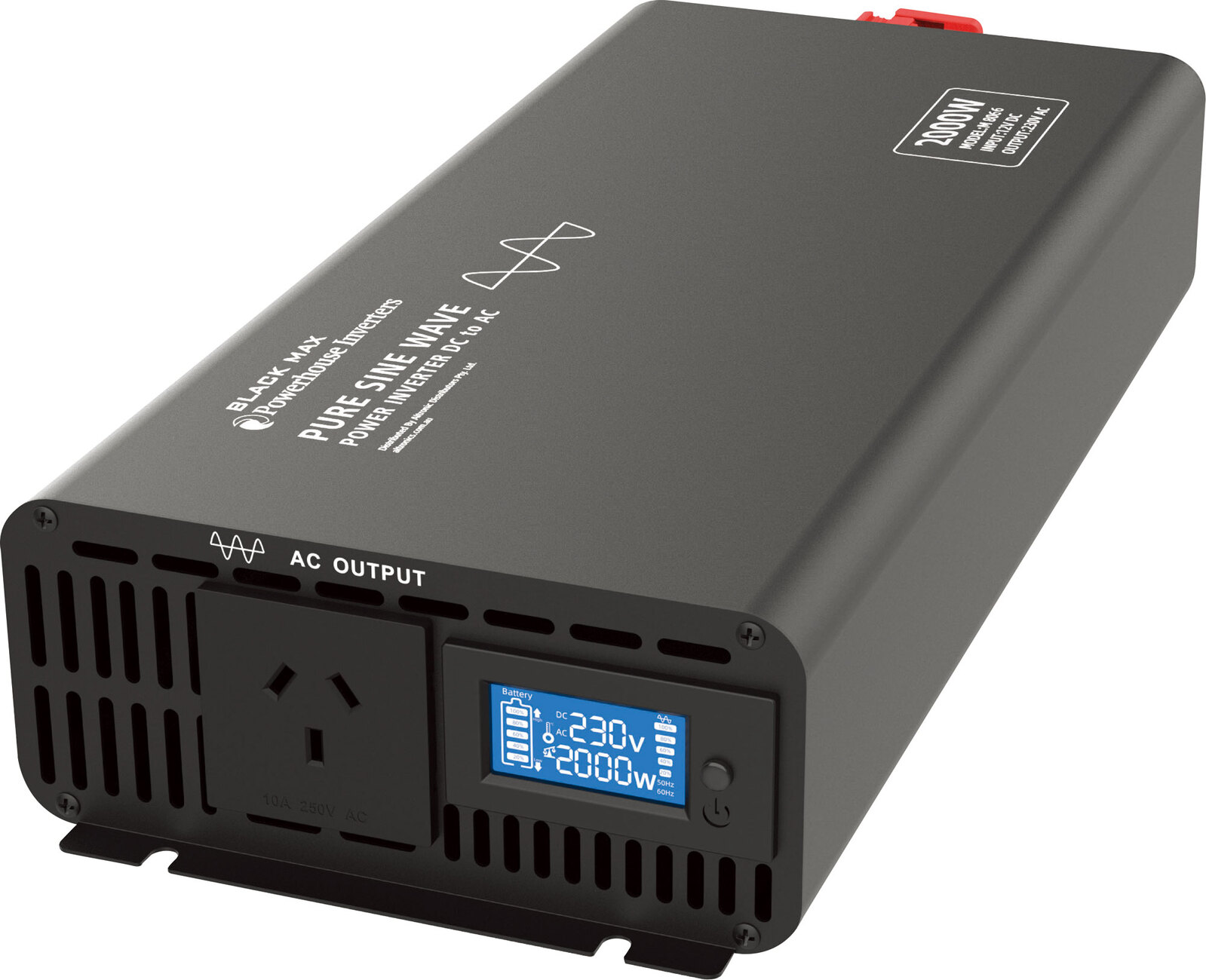

• This compact inverter is designed to deliver pure AC output for powering difficult loads such as appliances with switchmode power supplies (computers, displays & game consoles) and voltage sensitive devices such as medical equipment.
  • It features a handy multi-function display which provides a complete picture of operating parameters including battery capacity bar graph, input voltage, output voltage, protection conditions, power load & power capacity bar graph.
  • Excellent for powering appliances whilst camping, boating or in remote locations when normal 240V mains power is unavailable.
  • Isolated design for maximum electrical safety during operation and will self reset from a number of abnormal operating conditions once the condition is resolved (such as over voltage or over temperature).
  • Housed in a rugged aluminium case with flange mounting points and in-built cooling fans.

Features

  • Isolated design for maximum electrical safety
  • Pure sine wave output
  • Certified to Australian Standard AS/NZS 4763.2011
  • Multi-function LCD readout
  • DC/AC isolated design
  • Safety authority tested for reliable & safe operation
  • Over temperature, over voltage, over load and short circuit protection
  • Low voltage cut off
  • Excellent voltage regulation
  • Binding post connection to battery
  • Temperature controlled cooling fan.

About Powerhouse Black Max Inverters

  • Housed in a rugged aluminium extrusion, this range of Powerhouse inverters was chosen over many others during testing for their robust reliability and unwavering performance - even under severe operating conditions.
  • All others we tested failed our brutal testing regime.
  • We understand that in the field, inverters will be subjected to all kinds of gross overloads and temperature variations and must survive.
  • To be considered for inclusion to our range these inverters had to pass all of our tests.
  • Further, as added peace of mind all models have been submitted and certified to Australian Standard AS/NZS 4763.2011. Many other inverters being sold in Australia are not certified and virtually all would not pass without major upgrades or modifications.

Specifications



  • Output power: 2000W
  • Display Method: LCD Display
  • Input Voltage: 12V DC
  • Input Range: 10-15
  • Low Voltage Protection: 10.0V ±0.3
  • Over Voltage Protection: 15.0V±0.3
  • Recovery Voltage: 13.2V±0.3
  • No-load current: 0.80A
  • Overload protection: 2000W > 110%
  • Output voltage: 230V AC
  • Output frequency: 50Hz
  • Output waveform: Pure sine wave
  • Over heating protection: 80° ± 5°
  • Waveform THD: ≤3%
  • Conversion efficiency: 90%
  • Cooling method: Fan cooling
  • Dimensions: 360x173x76mm
  • Product Weight: 4.0kg

(M8066)

SKU M8066
Model # M8066
Barcode # 9321758249062
Brand Powerhouse
