Overview

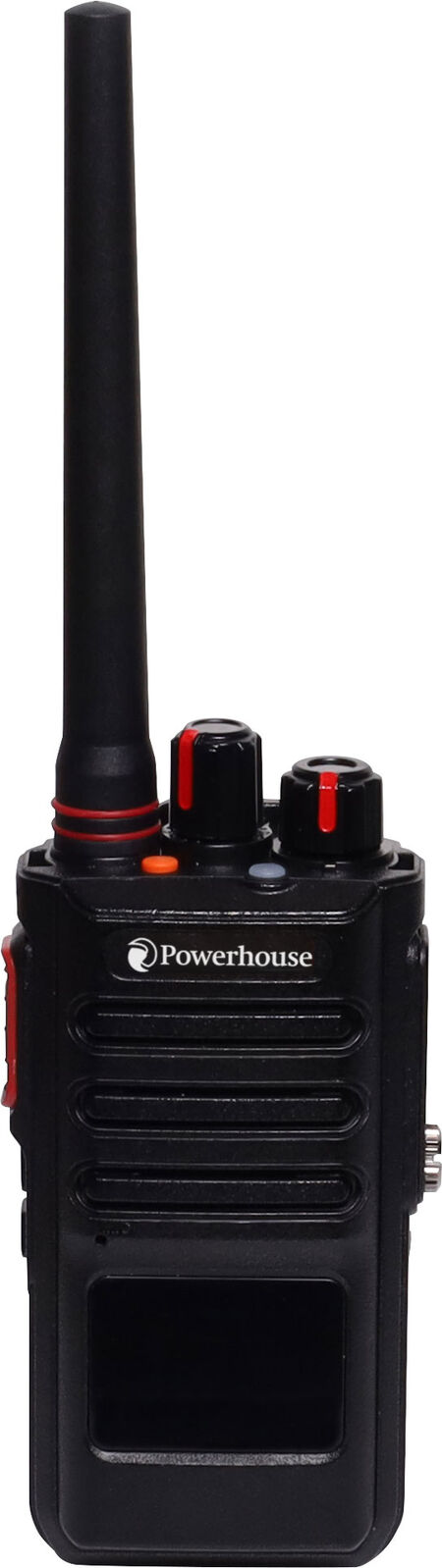

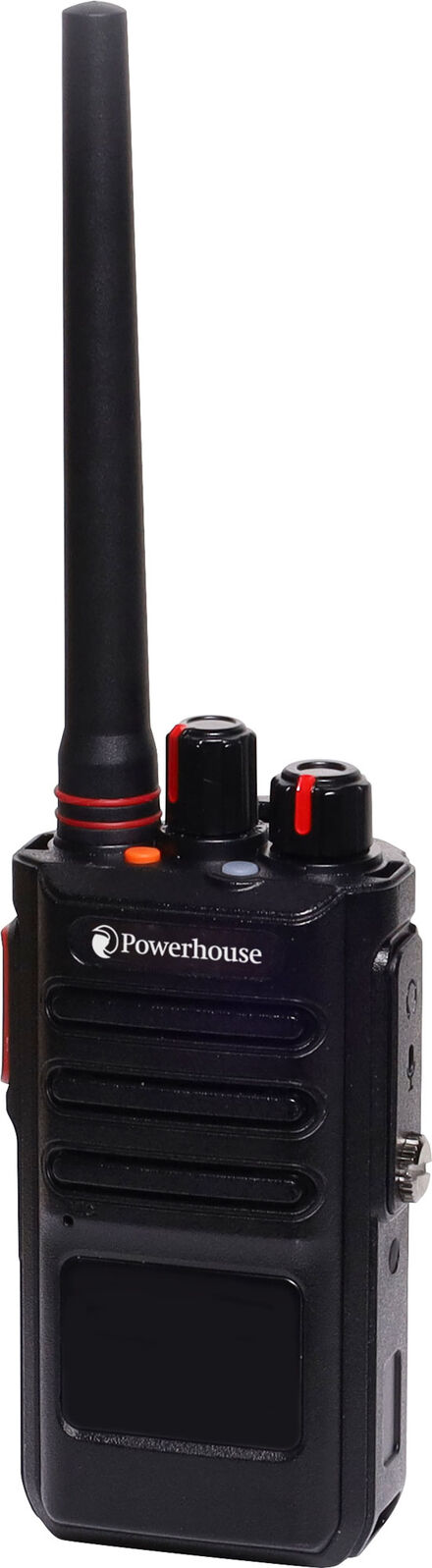

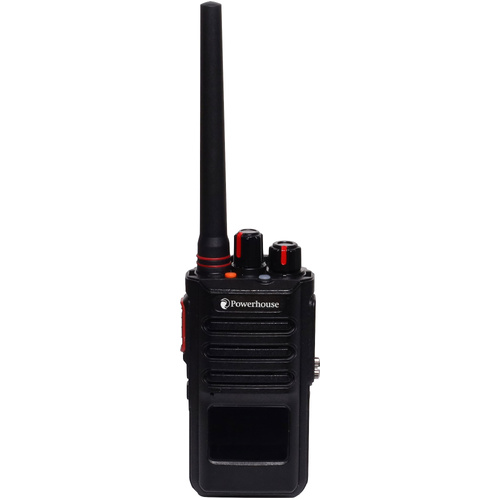

This 80 Channel 5W UHF CB Transceiver is ideal for demanding environments like construction sites, security operations and farming. With support for up to 199 channels, plus features like individual, group, and all-call functions, this radio keeps communication clear and reliable over long distances. Hands-free VOX operation, built-in emergency alerts, and voice recording. Rated IP67 waterproof and dustproof, it’s tough enough for construction, security, and outdoor work/adventures. Package includes charging dock and power supply however we also recommend M8617 & M8618 for car charging - see accessories below.

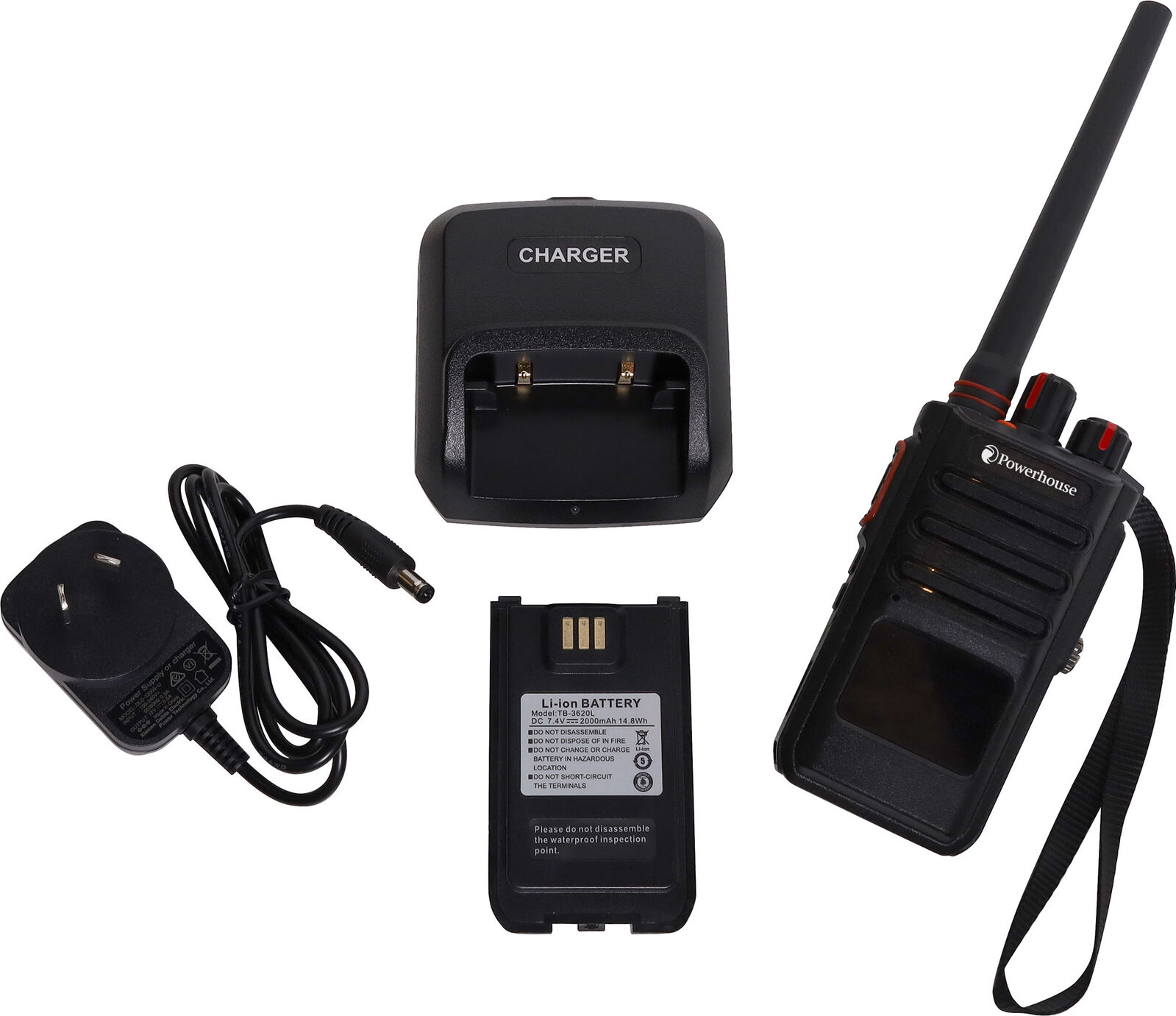

In The Box

• UHF Transceiver
• Power supply
• Li-ion battery

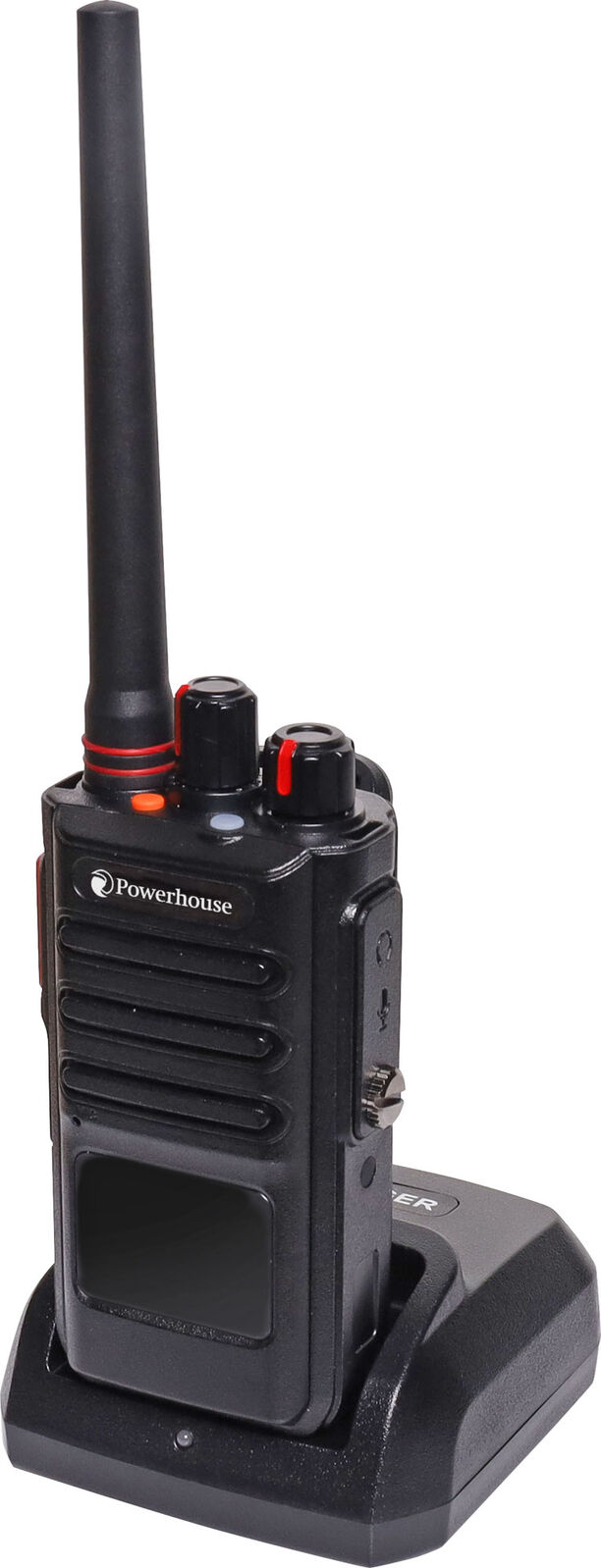

• Charging Dock
• Antenna
• Wrist strap

Features

• Frequency 136-174MHZ/400-480MHZ
• Hidden display 199 channels
• Output power 5W/1W
• CTCSS/DCS decode & encode, support non-standard CTCSS/DCS
• Individual call, group call, all call
• PTT ID, ANI
• 2 Tone & 5 tone
• Remote Kill , Stun, Activate & Revive signaling 1750Hz
• Scrambler
• Compander
• VOX function
• Record function
• Wide/Narrow Bandwidth 12.5KHZ/25KHZ
• Emergency Alarm
• Busy Channel Lock
• Transmitter Time-out Timer (TOT)
• Side Key Assignment
• 0-9 Grades Squelch Level Setting
• Waterproof IP67
• Vibration (optional?
• Noise cancelling (optional)

Specifications

General

• Frequency Range: 136-174MHz/400-480MHz
• Antenna: High Gain Antenna
• Frequency Stability: ±2.5ppm
• Memory Channel: 199 Channels
• Working voltage: DC 7.4V
• Antenna Impedance: 50?
• Operating Mode: different-frequency simplex or same-frequency simplex
• Dimensions: 116 x 61 x 38mm
• Li-in Battery Capacity: 2000MAH or 1500MAH (Type-c)

Transmitter

• RF power: 5W
• Modulate Mode: F3E
• Max.Freq.Deviation: ?5KHz
• Remain Wave Radiation: ?60db
• Transmitting Current: ?1000mah

Receiver

• Sensitivity: ?0.20uV (12dB SINAD)
• Squelch Sensitivity: ?0.20uV
• Intermodulation interference: 50db
• Audio Power output: 500mW
• Receiving Current: ?100mh
• Squelch Standby: 20ma
