Overview

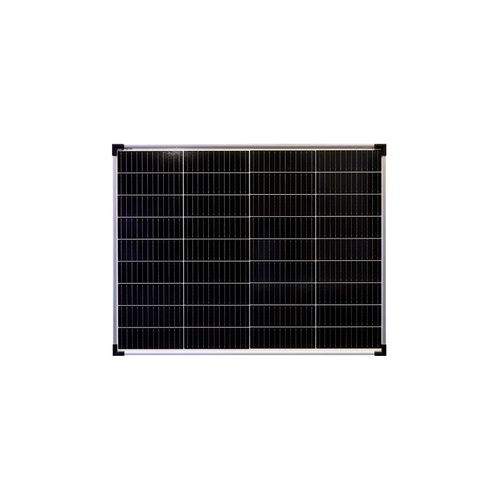

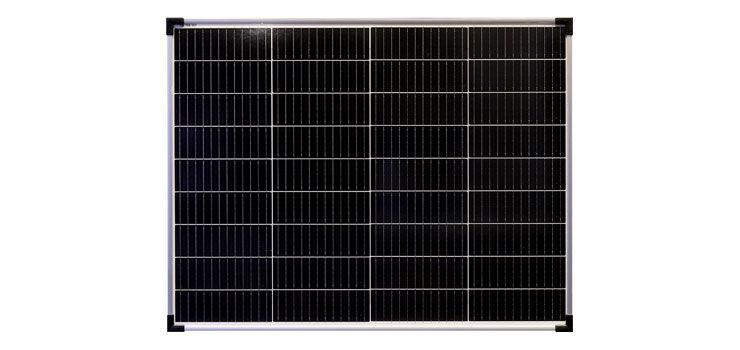

These monocrystalline silicon solar panels are designed for long life (up to 25 years) and high efficiency output. They may be wired in series or parallel arrays. This 60 Watt model is an excellent solution for remote or mobile power applications, electric fence battery banks, inverter systems, RVs, caravans, boats etc. Aluminium frames and tempered dust resistant glass panels allow installation in demanding environments.

Typical Applications Include:

• Power for remote cameras
• Electric fence battery banks
• Remote sensors and monitoring
• Battery powered lighting systems and much more

 Specifications

• Maximum power: 100W
• Nominal voltage: 12V
• Short circuit current (ISC): 5.61A
• Open circuit voltage: 23.07V
• Maximum power current (IMP): 5.30A
• Maximum power voltage: 19.90V

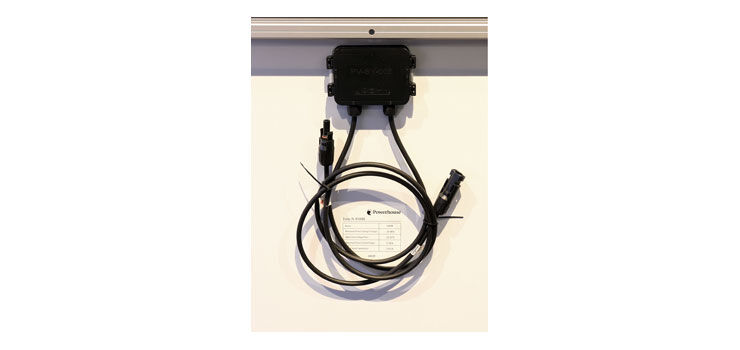

• Connection: MC-4 Plug
• Dimensions: 875 x 686 x 35 mm
• Operating temperature: -40°C to +85°C

  *Specifications are subject to change without notice.
