Overview

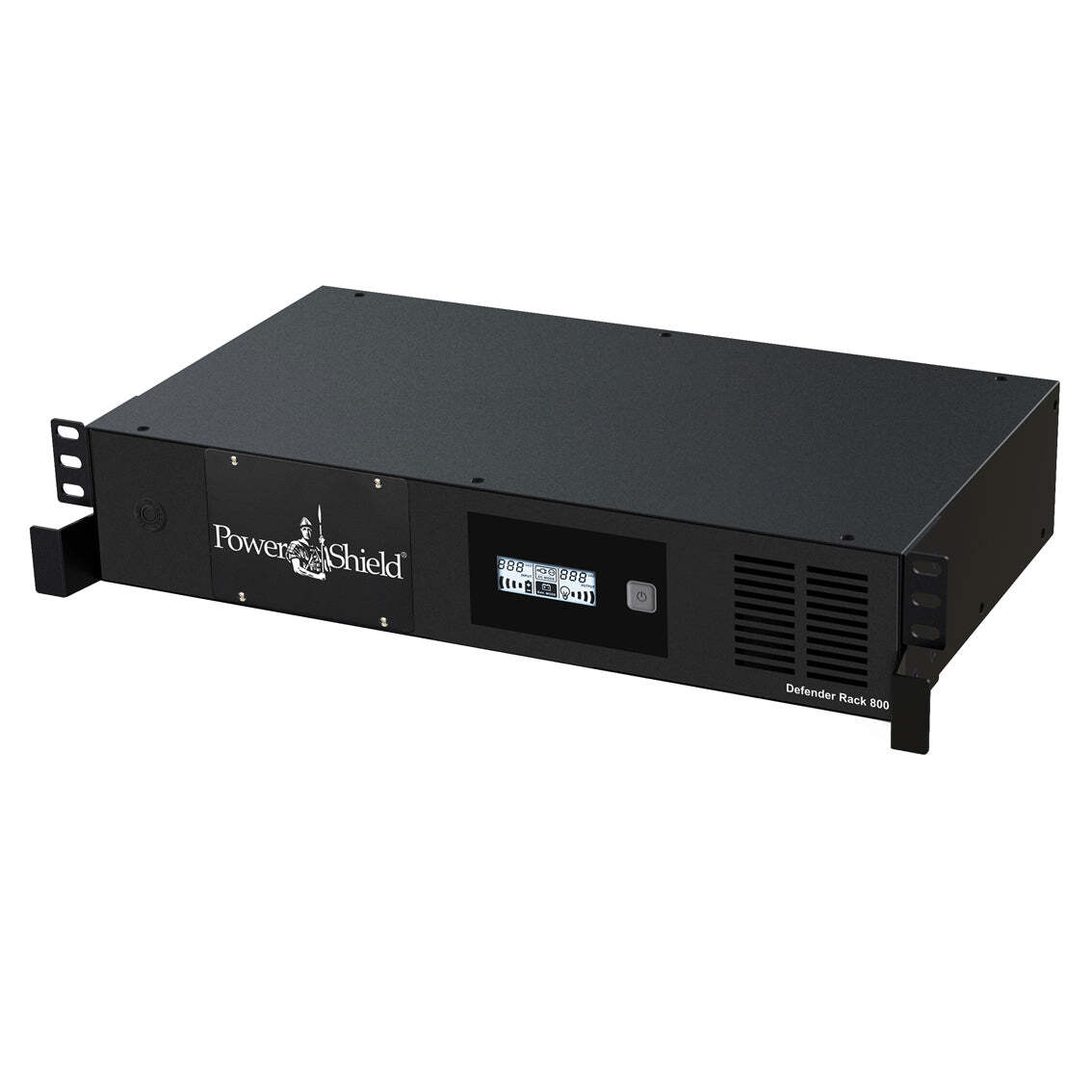

The all new Defender Rackmount 800 UPS expands the successful Defender Range by building the popular features into a Rack Mount style. At 230mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets. This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.

Features

• Surge Protection
• Modern, stylish LCD display indicates voltage in/out, amount of load and remaining capacity
• Plug and play on any computer or NAS drive
• Allows for orderly shutdown without software
• The AVR automatically bucks/boosts unstable fluctuating utility voltages, bringing them within 10% of nominal voltage range and thereby protecting valuable equipment
• Compact Design
• Battery is easily hot swappable and user replaceable,
• After an extended power outage the UPS will turn back on and resume equipment functionality once power has
• returned
• The plugged in UPS will continue to charge internal batteries whether the unit is on or off
• Extra Sockets
• Comes standard with 6 Australian sockets and 2 IEC outlets. Of the 6 Australian outlets, 4 can be used with plug packs
• The UPS can turn on equipment when it is off, simply by connecting equipment and turning the UPS on.
• The free, downloadable NetGuard software provides complete power monitoring.

Specifications

Input

• Voltage: 240Vac (Nominal)
• Voltage Range: 177-290Vac
• Frequency Range: 50/60Hz (auto sensing)
•

Output

• Output Voltage: 240Vac ± 10%
• Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz
• Transfer Time: 6ms (Typical)
• Waveform (Batt. Mode): Simulated Sine Wave
• Australian Outlets - UPS & Surge Protection: 2x 10 Amp IEC Sockets, 6 x Australian Sockets

Battery

• Battery Type & Number: 12V / 9AH (x1)
• Typical Recharge Time: 4- 6 hours recover to 90% capacity
• Backup Time (50% Load): 8 min

Protection

• Full Protection: Overload, discharge and overcharge protection
• Surge Protection: 312Joules / 6500Amps

Communications and Management

• Interface: USB interface
• Software: NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download)
• LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
• Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload

General

• Dimension: 230L x 438W x 86Hmm
• Weight: 7.7kgs
• Operating Temperature: 0-40°C
• Humidity: 0-90% RH (non-condensing)
• Noise Level: Less than 5dBA @ 1 meter (no fan)
• Capacity: 800VA / 480W
• Topology Line: Interative
