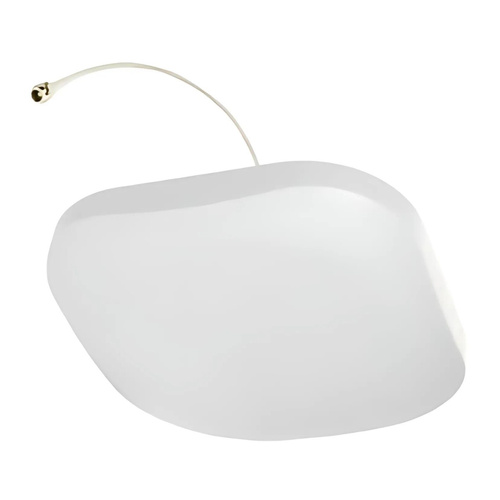

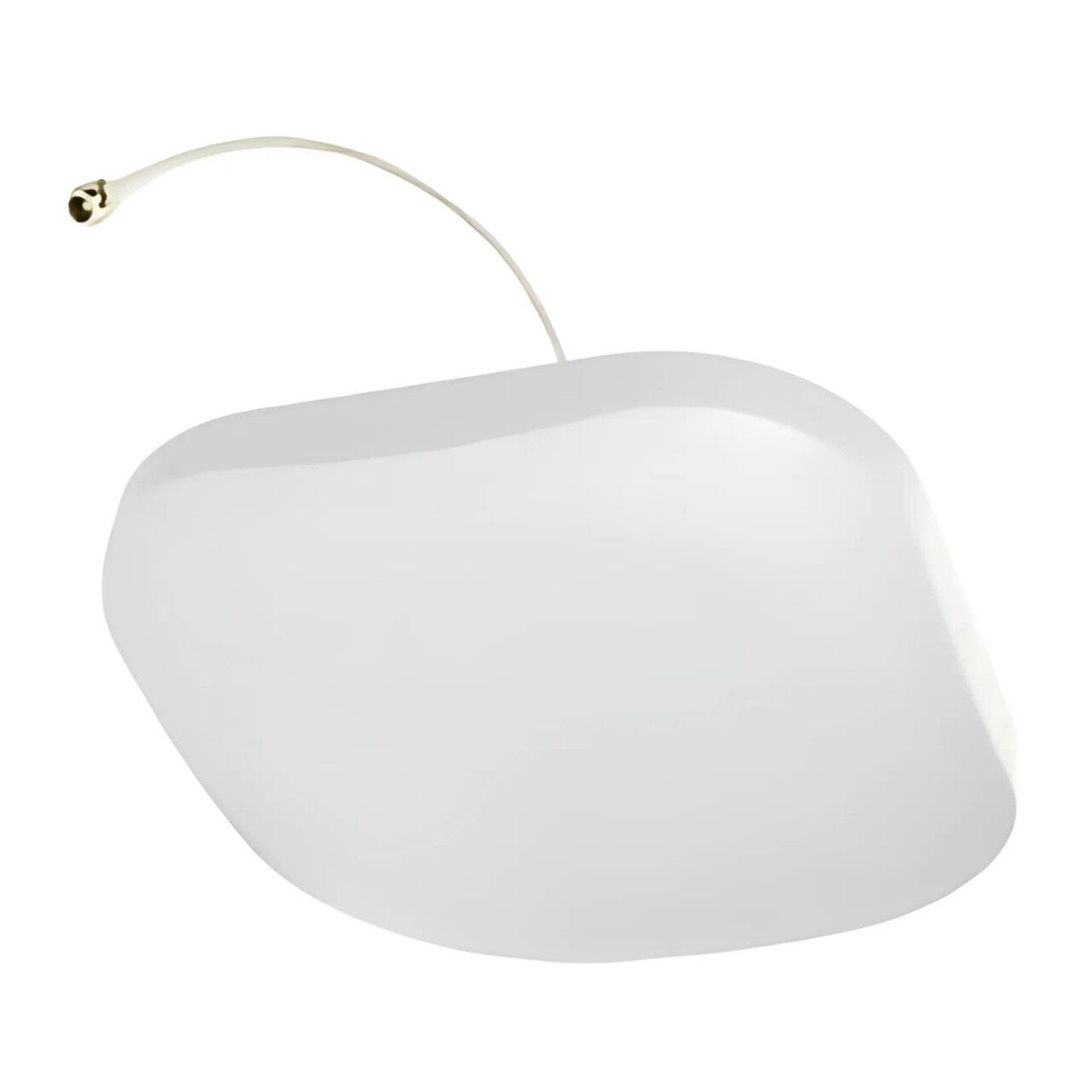

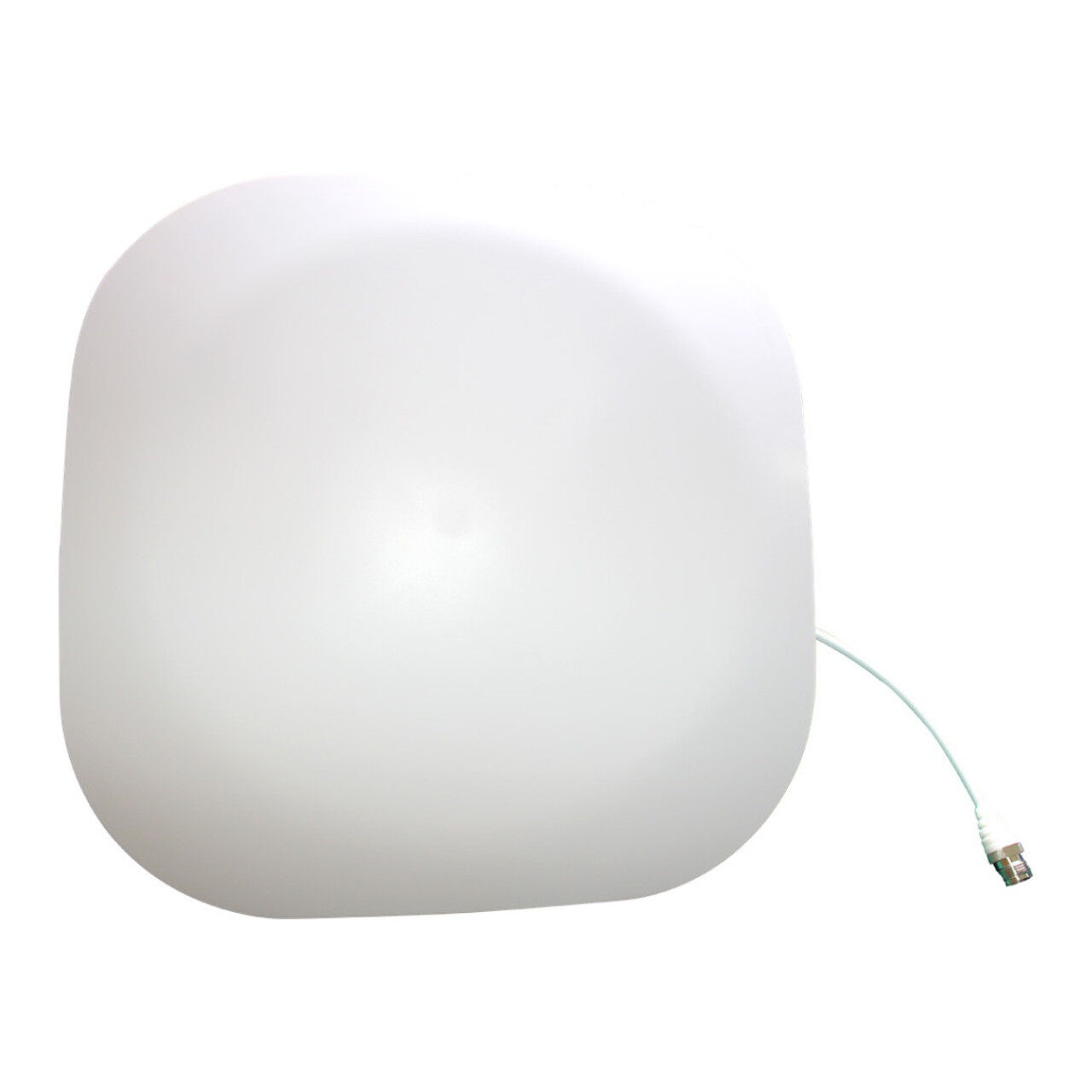

The Powertec 4G-5G Dual-Mount Ceiling Antenna, 698 to 4000 MHz, N Female supports an extensive frequency range, covering all critical communication bands, including 5G, 4G LTE, and 3G. This ensures seamless compatibility with modern wireless networks, making it an ideal solution for enhancing indoor signal coverage.

Key Features:

• Covers 698-960 MHz, 1710-2170 MHz, 2170-2700 MHz, and 3300-4000 MHz
• Supports 5G, 4G LTE, and 3G
• 3.5 dBi to 6.0 dBi Gain
• ≤2.0 to ≤1.5 VSWR
• Vertical Polarisation
• 5W max. Input Power
• Dual mounting options
• UV stabilised ABS radome
• Aluminium reflector

Versatile Mounting Options

Designed for flexible installation, this antenna offers dual-mount options suitable for both plasterboard and solid ceilings. This adaptability makes it perfect for various indoor environments such as offices, homes, and commercial spaces, ensuring easy and secure installation regardless of the ceiling type.

Compact and Modern Design

The Powertec ceiling antenna features a sleek and modern aesthetic, with dimensions of just 280 × 280 × 45 mm and a weight of 0.8 kg. Its compact size and lightweight design allow it to blend seamlessly into any indoor setting, providing excellent signal performance without compromising on appearance.

Impressive Gain and Beamwidth

With a gain ranging from 3.5 to 6 dBi depending on the frequency band, this antenna delivers strong signal amplification for enhanced reception. It also features a 360° horizontal beam width, ensuring widespread signal coverage, and a vertical beam width between 15° and 80° for targeted performance in multi-level buildings.

High-Performance Electrical Specifications

The Powertec 4G-5G Ceiling Antenna is engineered for optimal electrical performance, with a VSWR of less than 2.0 at lower frequencies and as low as 1.5 at higher bands. Its 50-ohm input impedance and 50-watt maximum power input make it a reliable option for both personal and commercial use.

Built to Last in Tough Environments

This antenna is designed for durability, featuring a UV-stabilised ABS radome and an aluminium reflector for longevity. It can operate in extreme temperatures ranging from -40 °C to +65 °C, making it suitable for various climates and conditions.

N Female Connector for Easy Integration

Equipped with an N Female connector, the Powertec ceiling antenna ensures easy integration with a wide range of communication systems. The connection provides reliable data transmission and enhanced signal strength, making it a valuable addition to any in-building wireless network.

Mounting Instructions:

Above Ceiling Mount (Roof Cavity)

1. Drill a 2.5 cm in the ceiling. The hole should be large enough to allow the antenna's threaded plastic cable base to pass through.
2. Push the antenna into the ceiling surface with antenna cable passing through the ceiling hole.
3. Use the Threaded Fixing Nut to secure the antenna by tightening around the threaded plastic cable base
4. Connect N female antenna connector to N male low-loss cabling.

Below Ceiling Mount (Solid Ceiling)

1. Drill a 2.5 cm in the ceiling. The hole should be large enough to allow the antenna's threaded plastic cable base to pass through.
2. Use the Metal Mounting Plate to align, mark and drill 6 holes into the ceiling surface and insert provided anchors.
3. Secure the Metal Mounting Plate to the ceiling by inserting provided screws through the mounting plate (with interlocking pegs facing down) and into ceiling anchors.
4. Push the antenna towards the bracket, allowing the cable to pass through the ceiling hole. Align keyhole mounts on the antenna with down-facing pegs and twist them into place.
5. Connect N female antenna connector to N male low-loss cabling.
