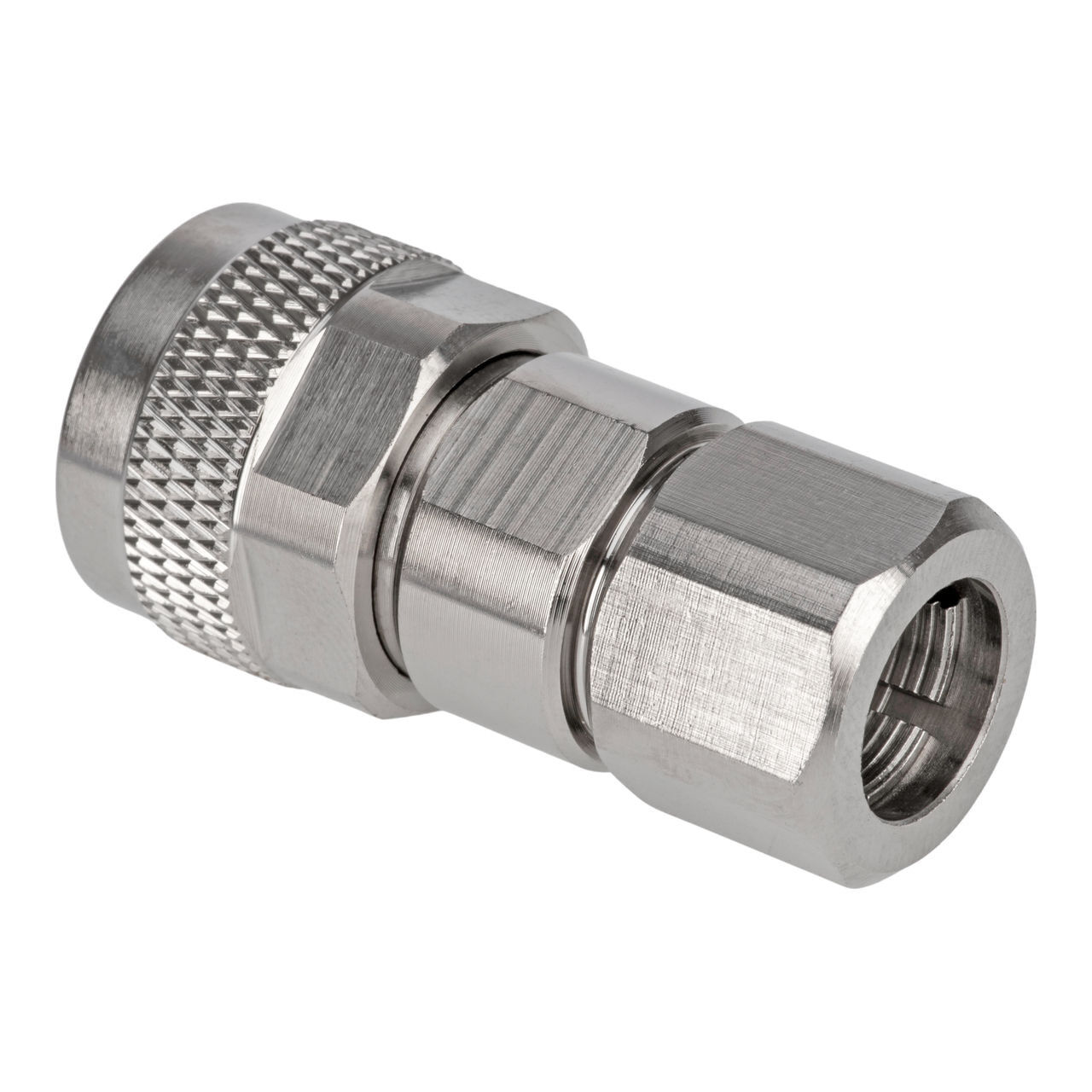

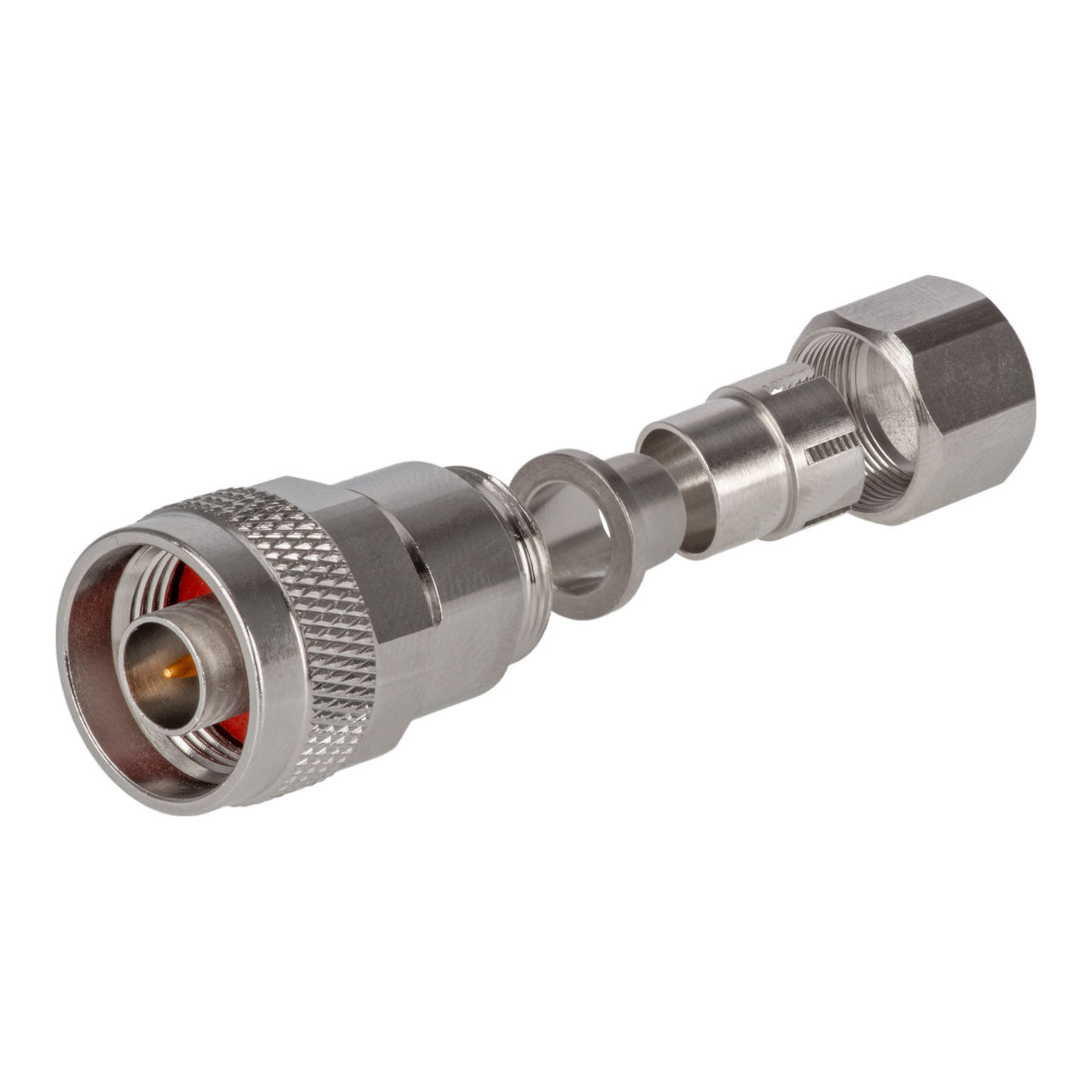

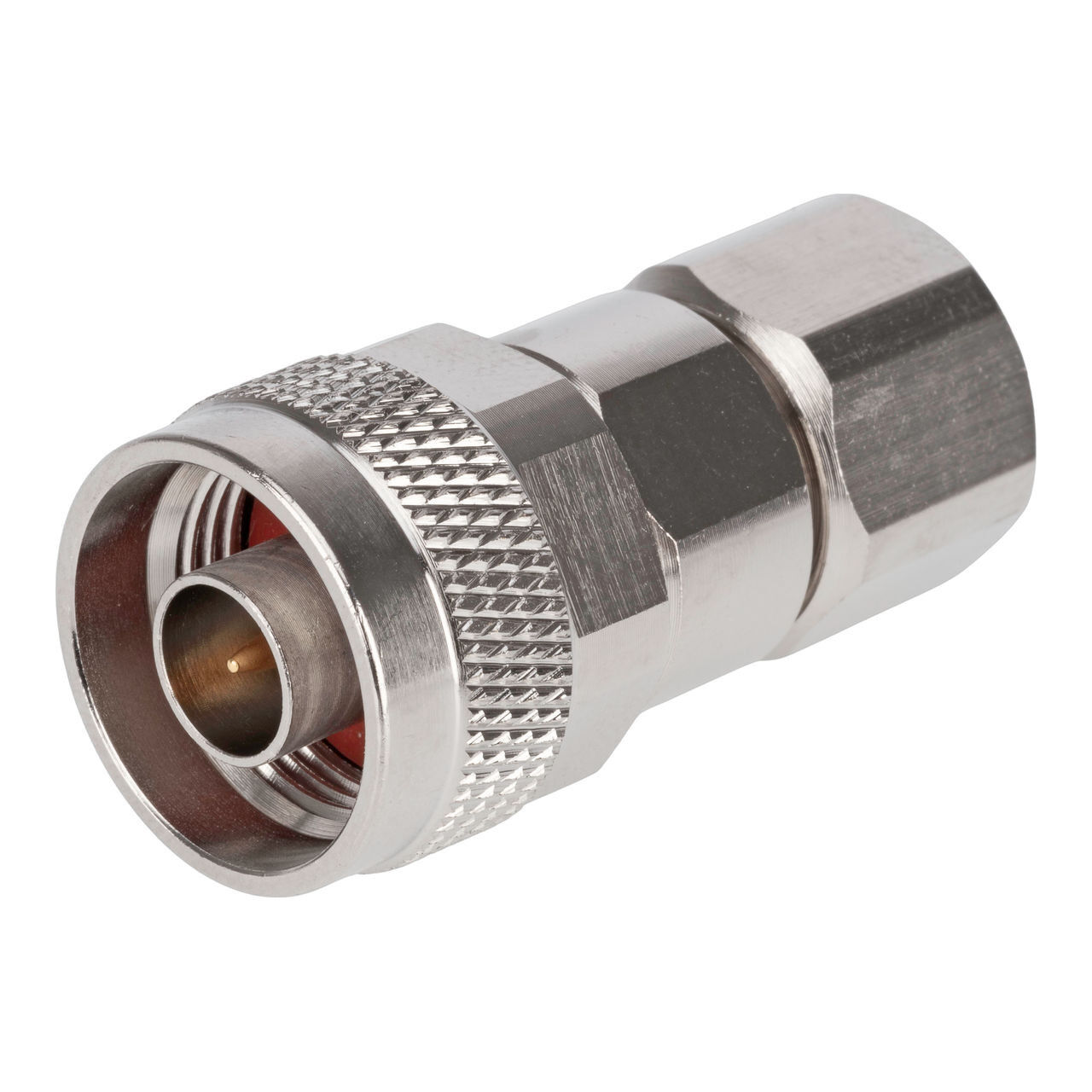

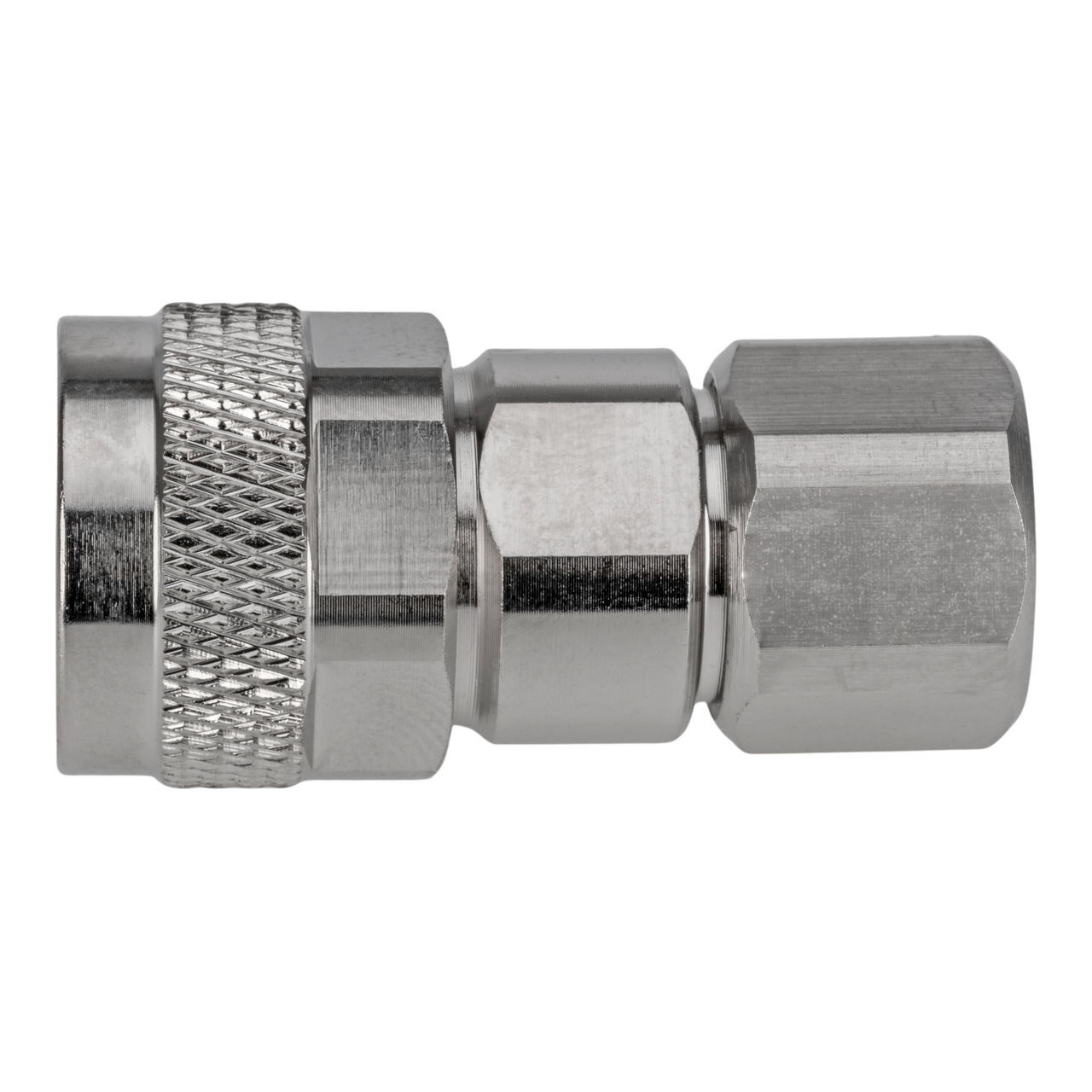

Powertec Connector N Male for LMR400 with Hex Nut 50 Ohms Impedance ACC-BH-00025

The Powertec Crimp N Male for LMR400 with Hex Nut is a reliable and efficient solution for your coaxial cable termination needs. This connector is engineered to provide a secure and stable connection, making it ideal for various RF setups.

Durable and High-Quality Construction

- Inner Conductor: Brass with Gold-Plated finish for optimal conductivity and corrosion resistance.
- Insulator: High-grade PTFE, known for its excellent dielectric properties.
- Body: Constructed from robust Brass with a Ternary Alloy for enhanced durability.
- Gaskets: Made from Silicone Rubber to provide a secure and long-lasting seal.
- Additional Components: Brass with Ternary Alloy ensuring overall structural integrity.

ACC-BH-00025 Coaxial Connector Specifications
Specification Category	Details
Inner Conductor	Brass, Gold-Plated
Insulator	PTFE
Body	Brass, Ternary Alloy
Gaskets	Silicone Rubber
Other Components	Brass, Ternary Alloy
Interface	N male
Standards	IEC 61169, IEC 60169
Body Style	Straight
Durability	≥ 500 mating cycles
Cable Compatibility	LMR-400
Impedance	50Ω
Operating Frequency Band	DC-3GHz
Insertion Loss (Typical)	≤0.05√f dB Max
VSWR	≤1.30
Dielectric Withstanding Voltage	1000V
Contact Resistance (Inner Conductor)	≤1.0mΩ
Contact Resistance (Outer Conductor)	≤0.25mΩ
Insulation Resistance	≥5000MΩ
Operating Temperature	-40°C to +85°C
Corrosion Test Method	IEC 60068-2-52, 48h
Damp Heat Resistance Test Method	IEC 61169-1, Sub-clause 9.4.3
Thermal Shock Test Method	IEC 61169-1, Sub-clause 9.4.4
Vibration Test Method	IEC 61169-1, Sub-clause 9.3.3
Mechanical Shock Test Method	IEC 60068-2-27
Marking and Packaging	According to packaging specifications or customer requirements
Compliance	RoHS 2011/65/EU compliant by exemption

General Information
Manufacturer:	Powertec
Manufacturer Part Number:	ACC-BH-00025
Barcode:	Connector N Male for LMR400 with Hex Nut
Packaging Details
Weight:	0.10 KGS
Width:	2.00 (cm)
Height:	2.00 (cm)
Depth:	4.00 (cm)
