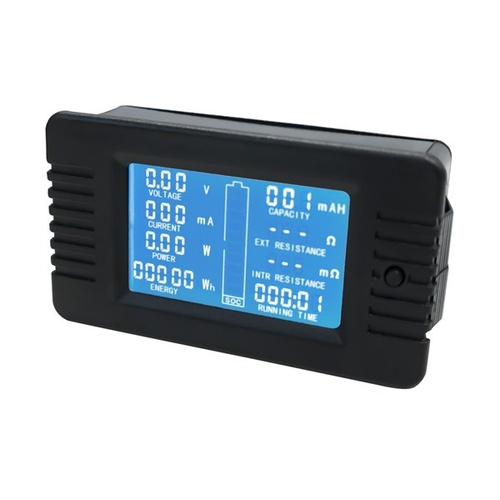

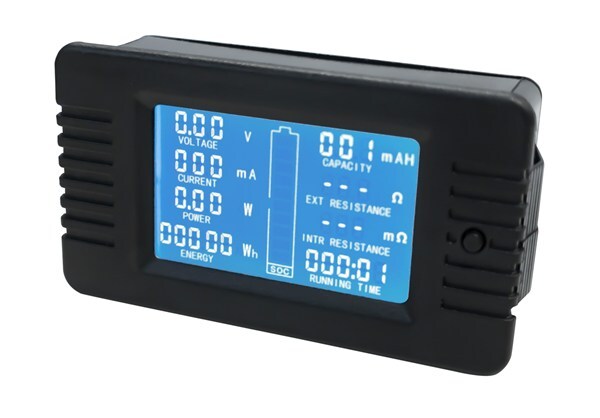

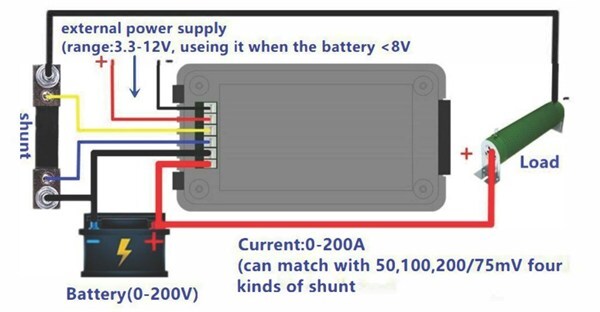

Exceptionally handy for keeping an eye on your solar installation, generator, battery banks, and more. Totally self-contained, so wiring is a breeze, and it’s powered from the DC power you’re monitoring. Suitable for solar systems up to approximately 40kW (must not exceed 200A). Provides details on power, voltage, and current, as well as aggregation of power throughput (which can mean generation or usage depending on your installation) with an easy reset function. Bright blue backlit display provides easy reading in any lighting conditions.

Features:
• Real time information
• Large backlit display
• Aggregated energy throughput
• Power Consumption: 0.2W
• Measurement speed: 2 times/s

Specifications

DC Current Accuracy : 1%
Current DC Measuring Range : 0.0A, 200.0A
DC Voltage Accuracy : 1%
DC Volts Measurement Range : 6.5V, 200.0V
Width : 90.0mm
Height : 50.0mm
Depth : 25.0mm
Weight : 62.0g

(QP2322)

SKU QP2322
Barcode # 9319236764343
Brand BOURNE
Assembled Height 0.050m
Assembled Width 0.090m
