Overview

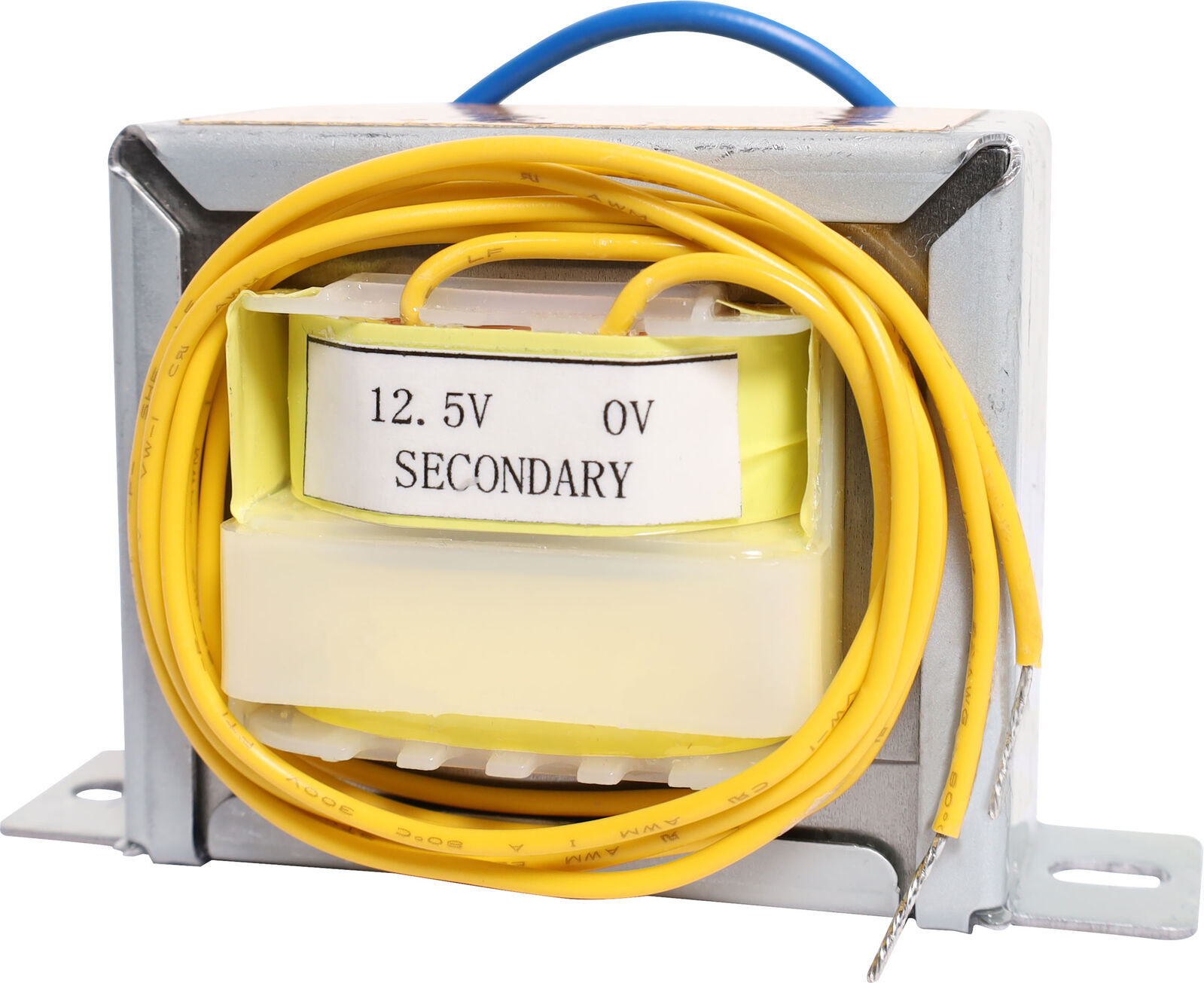

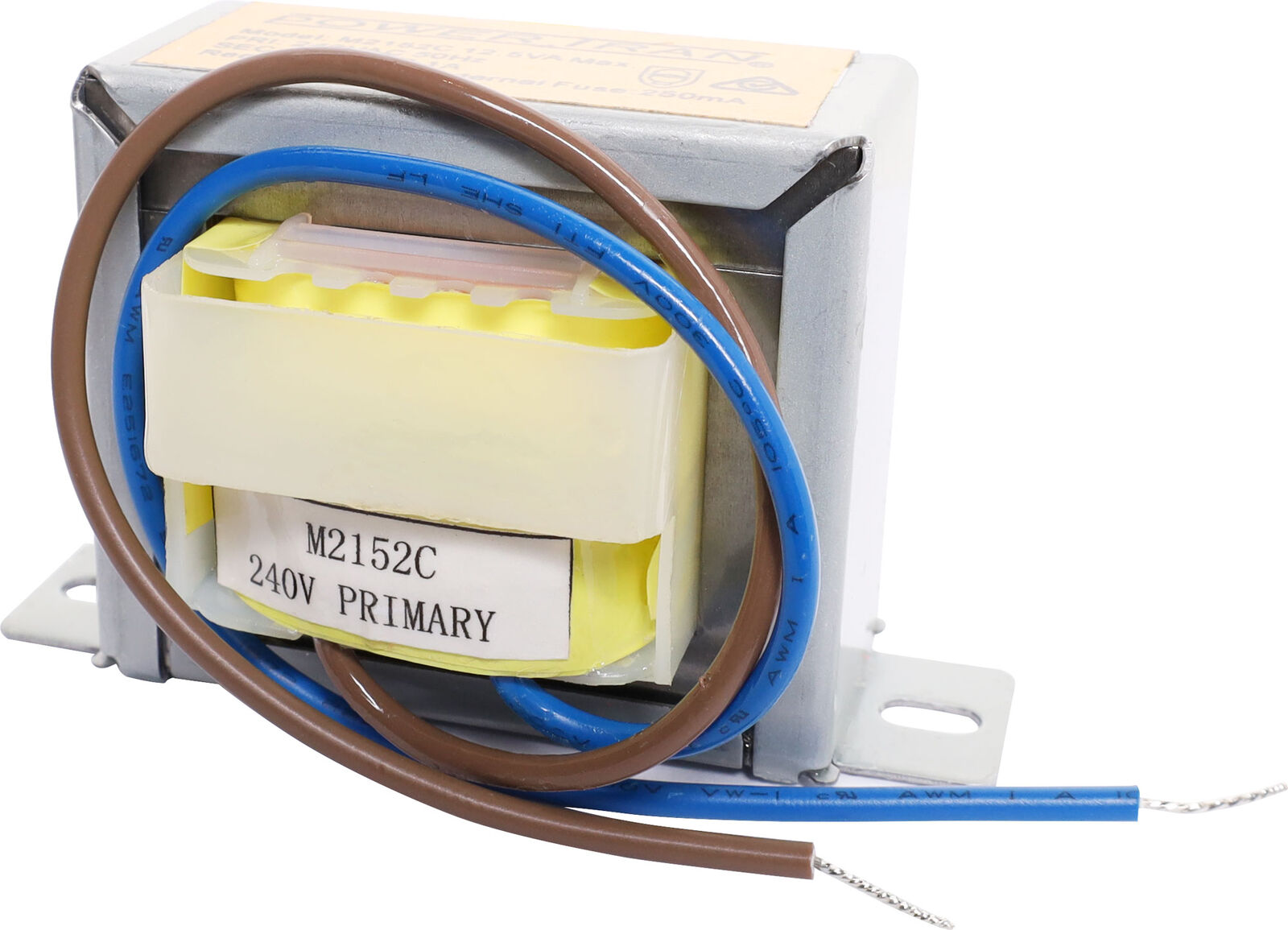

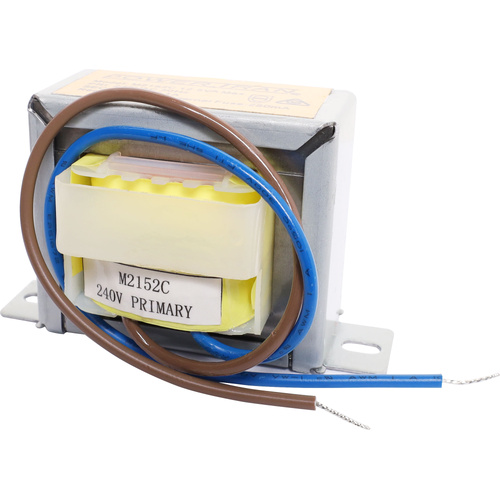

Powertran EI-Core 240V AC mains transformer with a 12.5V secondary voltage and 1A current output. Primary and secondaries fitted with 200mm fly leads. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 250mA external fuse. All currents listed are AC.

 Specifications

• Primary voltage: 240V AC
• Total VA rating: 12.5VA
• Insulation: Class E (120°C)
• Magnetising current: <45mA
• Temperature rise: <65°C
• Regulation: ˜11%
• Recommended AC fuse: 250mA
• Weight: ˜561g
• Primary connection: 200mm fly leads
• Secondary connection: 490mm fly leads
• AS/NZS 61558.2.6 approval: Q042028
• AS3108 approval: CS/813/Q
•
• Secondary Voltages Available: Voltage :12.5V / Current : 1A
