Overview

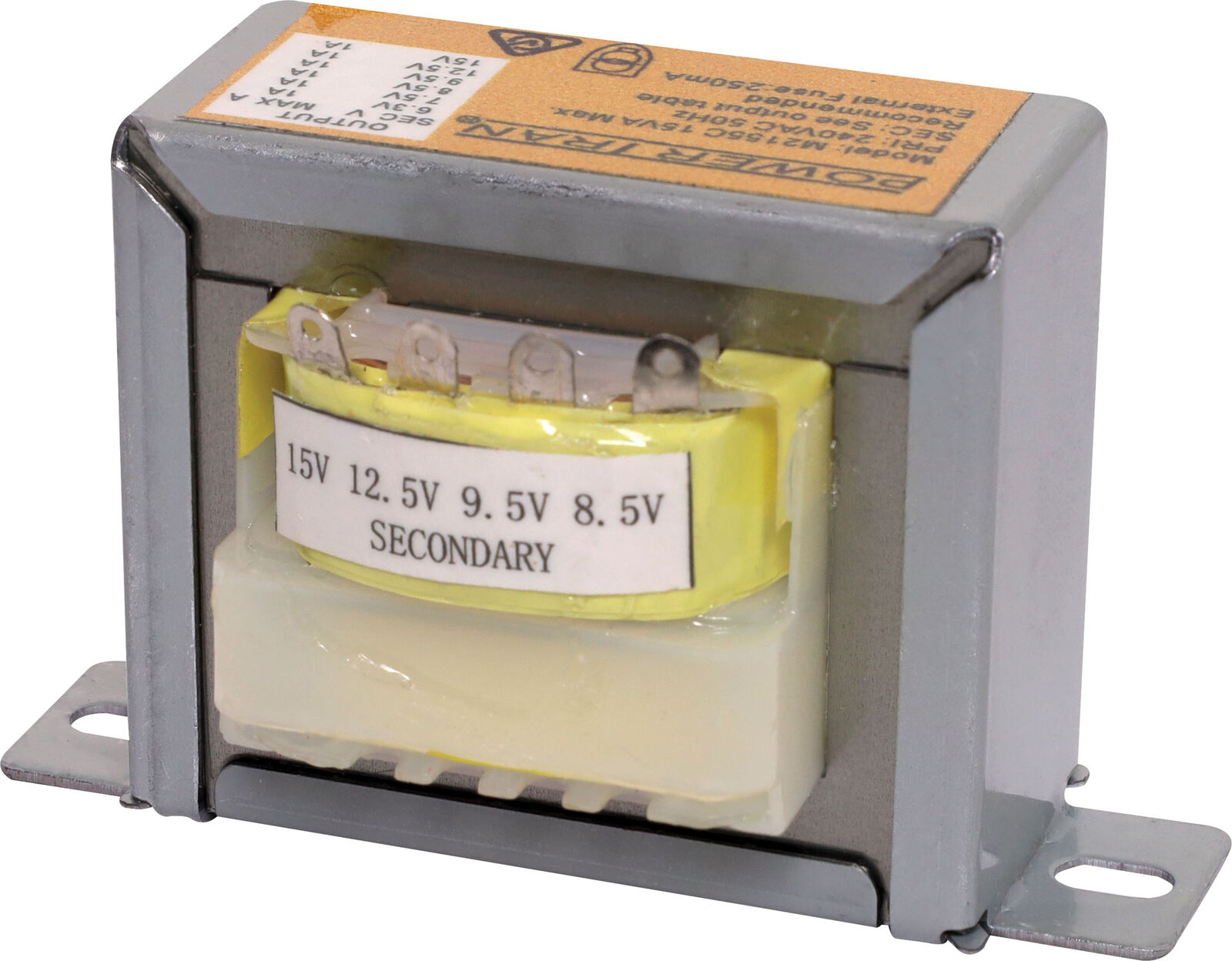

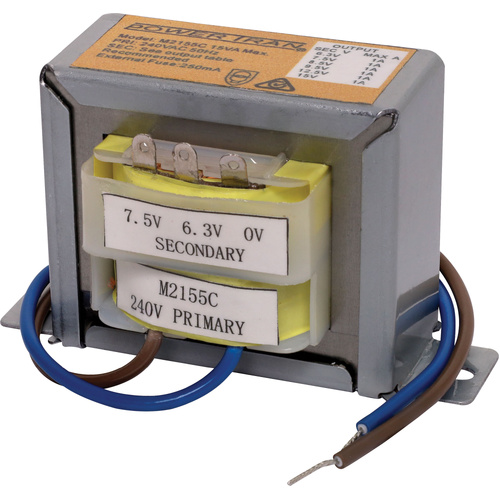

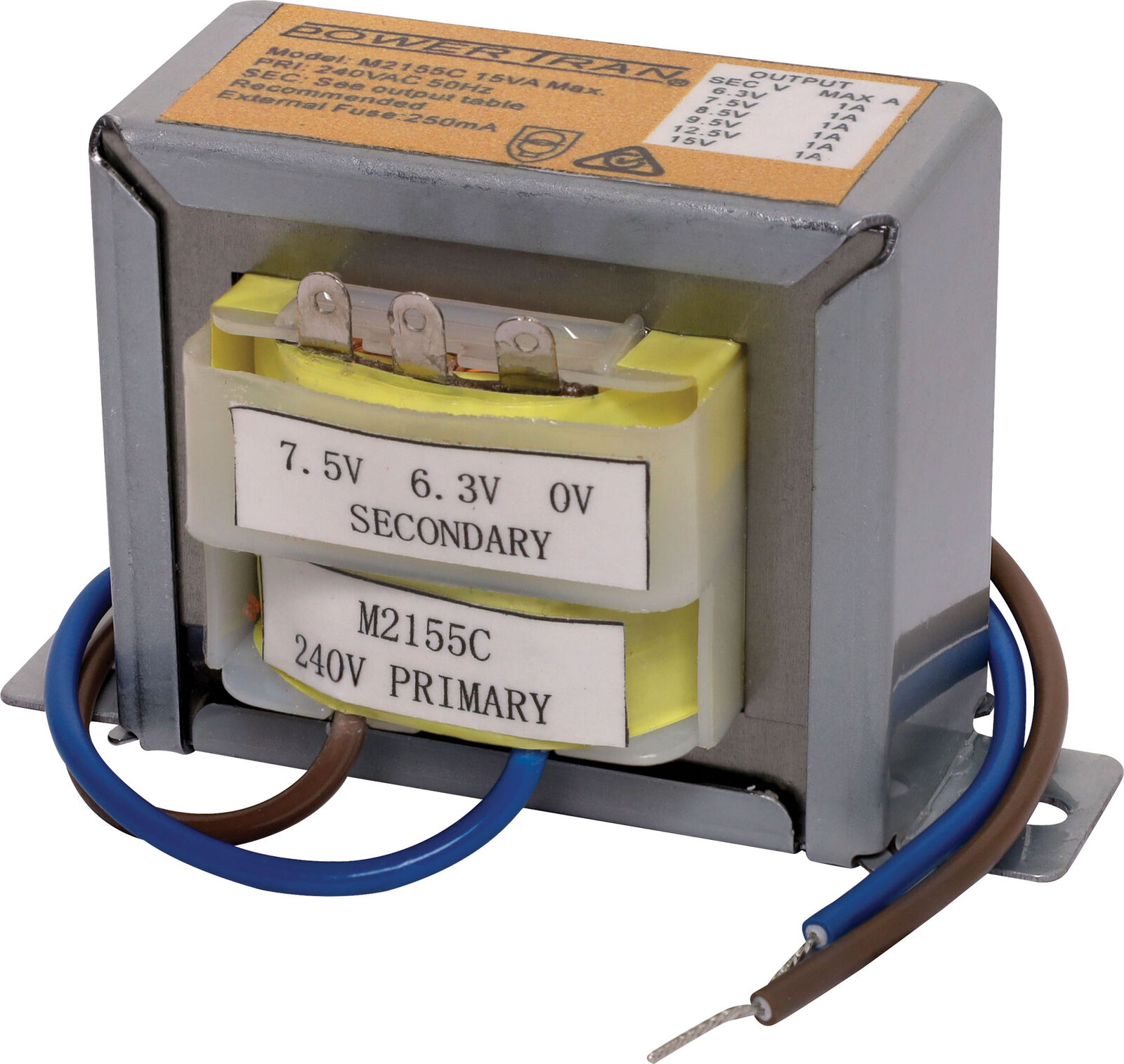

Powertran EI-Core 240V AC mains transformer with 1A multi tapped secondary configuration. 0V, 6.3V, 7.5V, 8.5V, 9.5V, 12.5V and 15V secondaries are available at 1A current output. Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.

 Specifications

• Primary voltage: 240V AC
• Total VA rating: 15VA
• Insulation: Class E (120°C)
• Magnetising current: <60mA
• Temperature rise: <60°C
• Regulation: ˜10%
• Recommended primary AC fuse: 250mA
• Weight: ˜555g
• Primary connection: 200mm fly leads
• Secondary connection: Solder tags
