Overview

This versatile USB-C for vehicles and auxiliary battery systems plugs into any standard car accessory socket (cigarette lighter socket) and provides up to 140W USB C Power Delivery (PD3.0/3.1). In addition it also features a secondary 20W USB C power delivery port for charging phones, watches etc. The charger is fitted with a 2m cable allowing you to run it from your battery into your tent or camper. The cable is fitted with a durable extra thick sheathing and cable strain reliefs for plenty of added protection. A wide input range allows for connection to 12 or 24V systems.

In the box
USB charger with 2m cable
User manual

Features

• Universal design, suitable for charging all USB type C devices.
• Ideal for connection to remote battery systems to provide campsite charging.
• 156W maximum output.
• 140W USB C power delivery from main output port (PD3.0/3.1).
• 20W USB C power delivery from secondary output port (PD3.0).
• 2 x USB A type 18W outputs for additional devices (12V 1.5A max).
• Sturdy enclosure with flexible rubber strain reliefs.

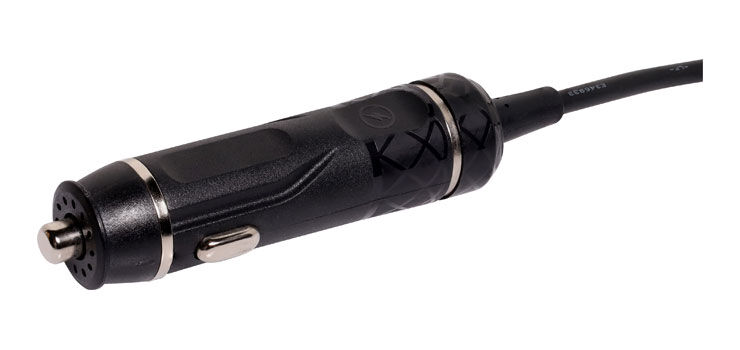

• Quality fused plug with 16A M205 glass fuse (replaceable).
• Over voltage protection.
• Over current protection.
• Over temperature protection.
• Overload protection.
• Short circuit protection

Specifications

• Input: 12-24V DC 14A Max
• Primary USB-C Output: PD3.1 DC, 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 28V 5A (140W)
• PD3.0 DC, 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A (100W)
• Secondary USB-C Output: PD DC, 5V 3A, 9V 2.22A, 12V 1.67A (20W)
• USB-A Outputs: DC, 5V 3A, 9V 2A, 12V 1.5A (18W)
• Cable Length: 2m
• Case Size:  25W x 92D x 58Hmm

Charging Combinations

• Primary USB C only: PD3.0/3.1 140W
• Primary & Secondary USB C: PD3.0 100W+20W
• Primary & A1: PD3.0 100W+18W
• Primary & A2: PD3.0 100W+18W
• Primary, Secondary & A1: PD3.0 100W+20W+18W
• Primary, Secondary, A1 & A2: PD3.0 100W+20W+18W+18W
