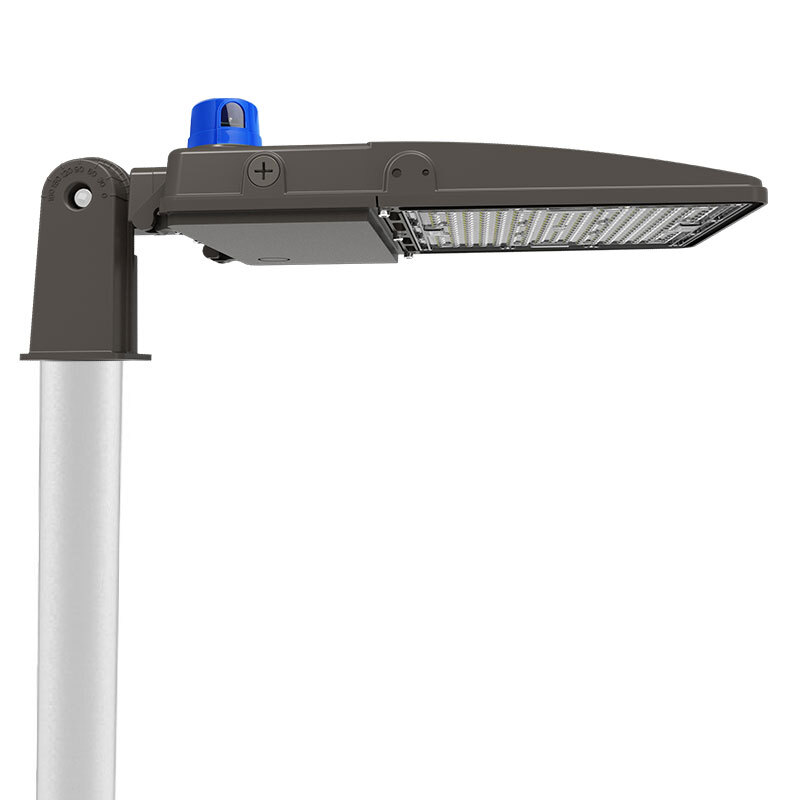

The ENSA™ LSL-B Series comprises versatile LED lights with a variety of mounting and sensor options to deliver high performance street and area lighting. These luminaires offer impressive lighting with high energy efficiency in a robust slimline housing. LSL-B Series lights feature a wide range of mounting solutions to fit to a multitude of installation requirements. Models also feature a built-in photo receptor for dusk/dawn switching.

LSL-B Series lights are ideal for illumination in street lighting applications, in area lighting for public spaces and for general purpose lighting in a variety of commercial and industrial building environments.

Product Features:

• High luminous efficacy up to 135lm/W
• Batwing or square distribution for street & area lighting
• Long lifespan LED lighting: rated for up to 50,000 hours
• Rotate polycarb lens for easy light direction adjustment
• Includes in-line surge protection for up to 20KV
• Robust IP66/IK08 weather & vandal resistant housing
• Versatile mounting with 5 adjustable light brackets (each sold separately)
• Includes photocell that measures ambient light levels for dusk/dawn switching

Specifications

Optical

• Light Output : 27,000lm
• Luminous Efficacy : 135lm/W
• Colour Temperature : 5000K
• Colour Rendering Index : 70
• Beam Angle : 155° x 85°
• Light Decay : 23% at 50,000 hours
• Rated Lifespan : 50,000 hours

Electrical

• Power Consumption : 200W
• Input Voltage : 100 ~ 277VAC
• Power Factor : > 0.93
• Dimmable : 1 ~ 10V / PWM
• Motion Activated : No

General

• Ingress Protection : IP66
• Plug / Socket / Base : Unterminated
• Reflector / Diffuser : Clear polycarbonate Lens
• Housing Adjustments : 5 x adjustable light brackets (each sold separately)
• NSW ESS Accepted : No
• Operating Environment : -20° ~ 50°C
• Dimensions : 458 x 268 x 55mm

Other

• Dusk-Dawn Switching : 6 lux (Dusk, OFF), 50 lux (Dawn, ON)
• Photocell : Yes
• Pole Diameter : Ø62.1mm (LSL-BKTS *sold separately)
• Vandal Resistance : IK08
