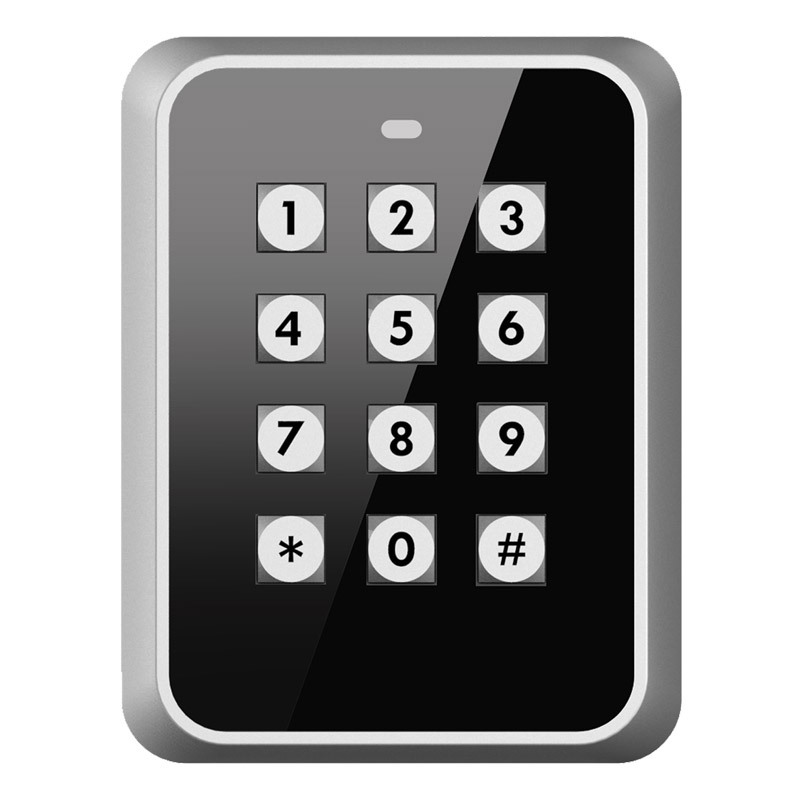

Professional Series 13.56MHz Card Reader / Metal Keypad

The ACRDR-2MKC is a professional access control reader, capable of granting access via RFID card and button keypad.

Features

  • Compatible with 13.56MHz access control systems
  • 12 button keys (0-9, *, #)
  • Use with Door Access Control series for multiple units
  • Connect and configure with PC via ethernet cable
  • RS485 and Wiegand 26/34 protocol
  • Elegant, glossy black finish for professional appearance
  • Tamper switch triggers loud alarm, deterring removal
  • LED indicators for low light visibility
  • IP55 rated weather resistance
  • IK08 rated for vandal resistance

Specifications

  • Product: RFID Reader / Button Keypad
  • Main Processor: 8 Bit
  • Communication: RS485 / Wiegand 26/34
  • RFID Format: 13.56MHz
  • RFID Read Range: ≤8cm
  • RFID Read Time: <0.1s
  • Fingerprint Scan: N/A
  • Keypad: 12 Button Keys (0-9, *, #)

Function

  • Audio: Buzzer
  • Light: Blue Backlight
  • Tamper Switch :Yes

Environment

  • Ingress Protection: IP55
  • Vandal Protection: IK08
  • Power Supply: 9~15 VDC / 100mA
  • Operating Conditions: -30°~+60° C / Less than 95% RH
  • Dimensions: 110 x 85 x 26mm
  • Net Weight: 0.5kg
  • Warranty (Years): 4
  • Weight: 0.64 kg

(ACRDR-2MKC)

SKU ACRDR-2MKC
Model # ACRDR-2MKC
Brand VIP Vision
