1x2 HDMI SPLITTER / EXTRACTOR 8K60 - PROLINK

2 Way 8K60 HDMI Splitter with auto downscale, auto convert function and audio extraction (3.5mm audio (L/R) and Optical (S/PDIF).

ANALOGUE / DIGITAL AUDIO OUT - ADVANCED EDID & DOWNSCALER

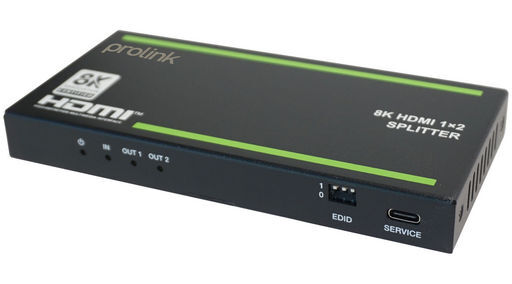

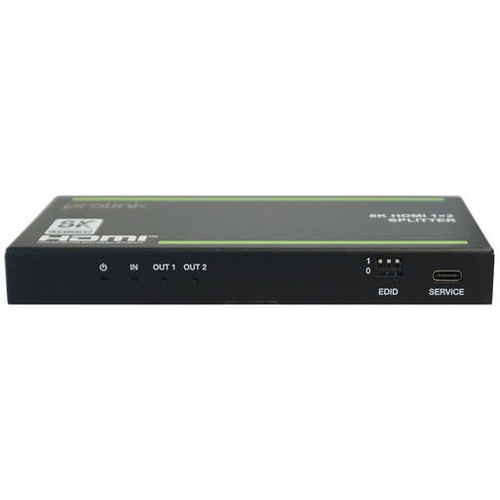

The Prolink 1-in, 2-out HDMI splitter distributes a single HDMI source to two displays with support for video resolutions up to 8K @ 60Hz (4:2:0) and LPCM digital audio formats. It features an automatic downscaler and signal converter that adjust each output based on the EDID information of the connected displays, ensuring optimal compatibility. Advanced EDID management further enhances system stability. The unit also supports audio extraction, offering both 3.5mm analogue and Toslink digital outputs for flexible audio integration.

• HDCP 2.3, Supports 48Gbps video bandwidth up to 8K @ 60Hz (YCbCr 4:2:0).
• Audio Extraction Toslink Multi-Channel and 3.5mm Stereo Audio.
• Supports VRR, FVA, and ALLM, HDR, HDR10, HDR10+, and Dolby Vision.
• Pass LPCM 7.1 channel, Dolby TrueHD, Atmos, and DTS-HD Master Audio.
• Extracts Audio 3.5mm stereo analogue, Digital Toslink LPCM/Dolby/DTS 5.1CH

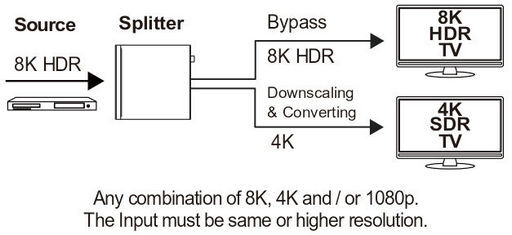

• Auto downscaling and conversion on EACH output port based on display EDID.
• EDID advanced: 4K, 8K, FRL10G, FRL12G, HDR, with 2.0CH / 5.1CH / 7.1CH.
• Dimensions: 145x68x17mm. Power pack included.
