KVM 4K60 HDMI USB IR EXTENDER KIT OVER CAT6 - PROLINK

4K HDMI 2.0 Extender over Cat5e/6 cable

EXTEND A TERMINAL UP TO 100M 18Gbps

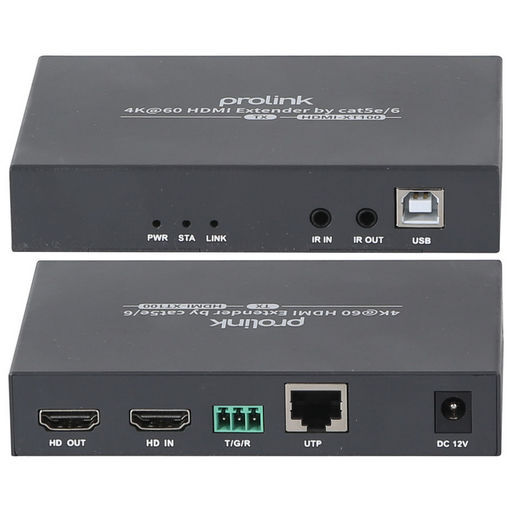

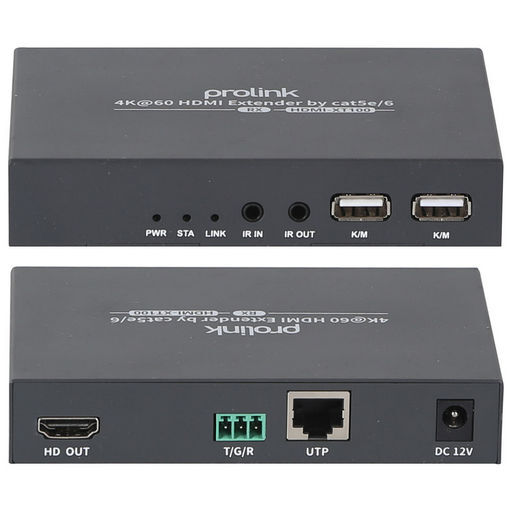

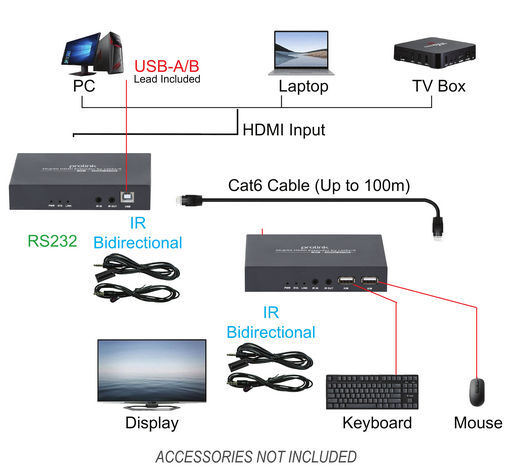

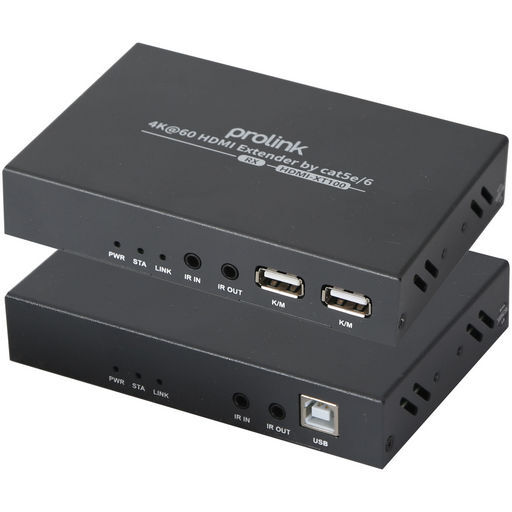

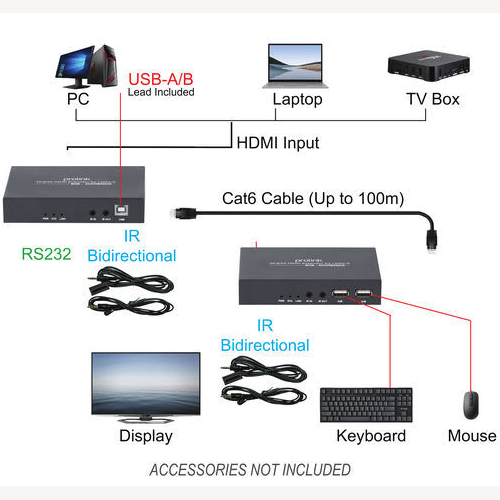

This KVM extender kit consists of a HDMI transmitter & receiver pair, enabling the transmission of HDMI, USB, and IR data via a CAT6 cable. This allows 4K @ 60Hz resolution HDMI video transmission from a device to a remote display at a distance up to 100 metres. It also allows using an optional keyboard, mouse, and IR remote to control your device at the remote location. The transmitter also features a local HDMI loop through for connection with a local display.

• Up to 100m transmission distance with 4K60 video resolution.
• HDMI loop out on the transmitter for local monitor.
• Compliance with HDMI 2.0 and HDCP 2.2 standards.
• USB ports allow for a mouse and keyboard to be connected to the receiver to control a USB source device such as a PC or laptop.
• Supports bi-directional IR with 1.5m cable Rx & Tx LEDs.
• High compatibility; can auto-match source and display device.
• Built-in automatic adjustment system makes the image smooth, clear, and stable.
• Includes power packs.
• Requires CAT6 type cable RJ45 to length.

This kit includes:
1M USB-A to USB-B cable
1.5M IR Tx cable
1.5M IR Rx cable
Two 12V power supplies
