Overview

4K60 HDMI extender kit over CAT6 cable (70m). Supports HD Audio, HDMI passthrough (TX), EDID copy pass-through, PoC, bi-directional IR pass-through, ARC and audio extraction.

ARC / AUDIO EXTRACTION / BI-DIRECTIONAL IR EXTENDER / PoC

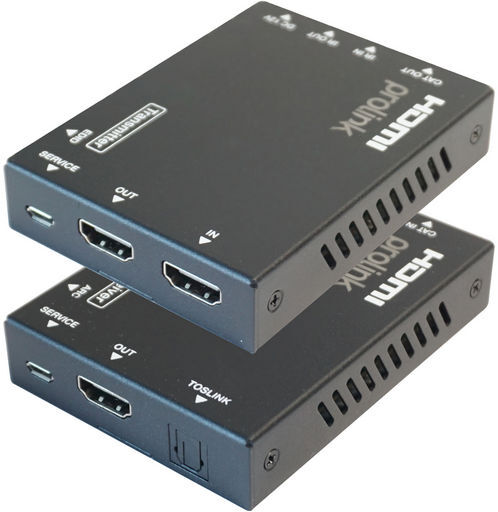

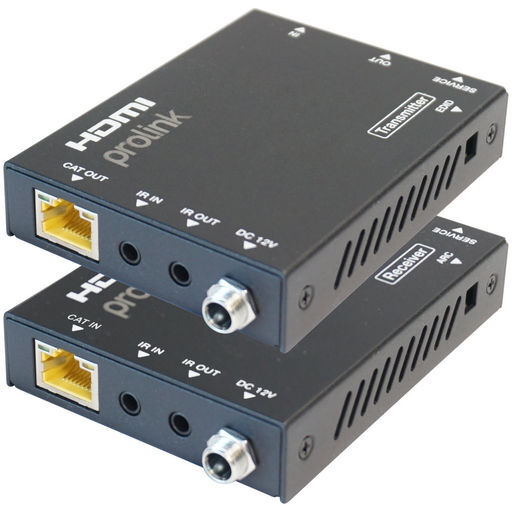

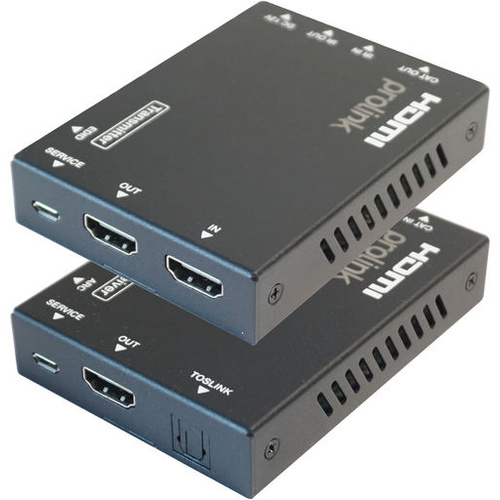

The Prolink 4K60 HDMI Extender Kit includes both a transmitter and receiver, delivering ultra-high-definition video and crystal-clear audio over a single CAT6 cable at distances up to 70 metres. With a full 18Gbps bandwidth, it reliably transmits 4K @ 60Hz signals, ensuring sharp, detailed visuals ideal for home theatre systems, commercial displays, and professional AV installations.
The kit supports ARC and audio extraction, allowing you to connect audio to external sound systems from the receiver. Bi-directional PoC simplifies installation by requiring power from only one end of the link, while bi-directional IR pass-through enables seamless control of connected devices from either side of the setup.
Features

• 18Gbps video up to 4K@60Hz YCbCr 4:4:4.
• Transmission distance up to 70M over CAT6 cable.
• Supports HDR, HDR10, HDR10+, and Dolby Vision, HLG.
• HDMI loop-out (on transmitter) for local monitor.
• Supports bi-directional IR remote control pass-through.
• Supports LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio.
• EDID copy pass-through function between source and display.
• Supports ARC and audio extraction (TOSLINK port on receiver).
• Supports bi-directional PoC (Power over Cable) function.
• Dimension: 90x68x18mm (TX), 90x68x18mm (RX).
• Includes 1x power supply, IR blaster (1.5M), IR receiver (1.5M).
